SKU: CONVCMIC/HS12G/WPSU

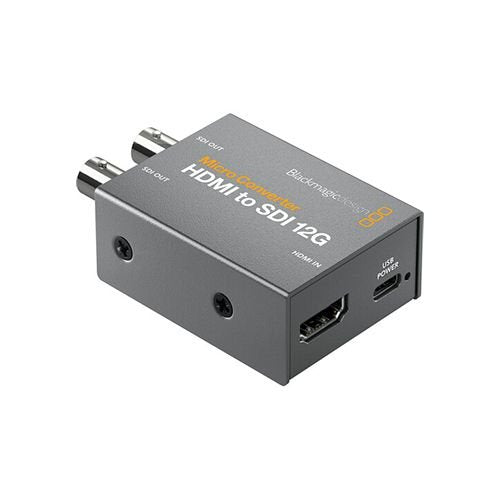

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
In stock
View full details
WhatsApp us for inquiries
In its primary imaging role,
Super space-efficient and durable, the Micro Converter HDMI to SDI 12G from Blackmagic Design permits you to stage HDMI bodies or computers to pro-style SDI (BNC) displays or components. You can additionally use several units to extend HDMI over long distances, through a SDI cable. This space-efficient converter has one HDMI source and two 12G-SDI feeds, and they can be selected to Level An or B when using 3G-SDI. It auto-detects and matches your HDMI source to the SDI feed and is compatible with source/feed definitions up to DCI/UHD 4K60. The pocket-sized Micro Converter HDMI to SDI 12G incorporates HDMI timecode compatibility, SDI re-clocking for support over long lead runs, HDMI copy protection, and compatibility for a broad variety of pro broadcast definitions, including cine-style 48 fps. The converter integrates a sturdy metal housing with power and feed LED status indicators and durable connector connections. The USB Type-C port permits the HDMI to SDI 12G converter to readily connect to and be energized by adapters, displays, laptops, or desktop computers, and it additionally facilitates firmware renewals from a Windows or macOS PC. A 5V power adapter and an international plug interface set is supplied with the converter.
HDMI-to-12G-SDI Conversion with Included Power Supply
Two Reclocked SDI Outputs for Parallel Feeds
- One HDMI input
- Two 12G-SDI outputs
- Selectable A and B level formats
Durable Compact Chassis for Production Kits
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
Retain Timecode during HDMI-to-SDI Conversion&
- HD and SD timecode support
- Converts HDMI timecode to SDI
Stabilized SDI Output through Reclocking
- Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Resolution Support from Standard Definition to Ultra HD
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio Transport over SDI
- Supports embedded HDMI input and embedded SDI output
At-a-Glance Power and Signal Indicators
- LED indicators for video and power signals
USB-C Power Options for Studio or Location Use
- Power from a monitor, laptop, or other component using the USB Type-C port

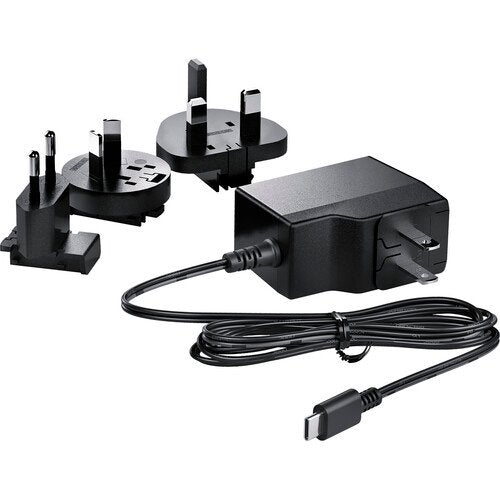

- A 5V power supply and an international plug adapter set is included
Compatible Desktop Operating Systems
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
| Weight | 0.4 kg |
|---|---|
| Dimensions | 15 × 11 × 8 cm |
| In the Box | Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply 5V Power Supply International Plug Adapter Set |
Key Features
- 1 x HDMI Input, 2 x 12G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- SDI Re-Clocking, HDMI Copy Protection
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- Includes 5V Power Supply
- LED Video & Power Signal Indicators
