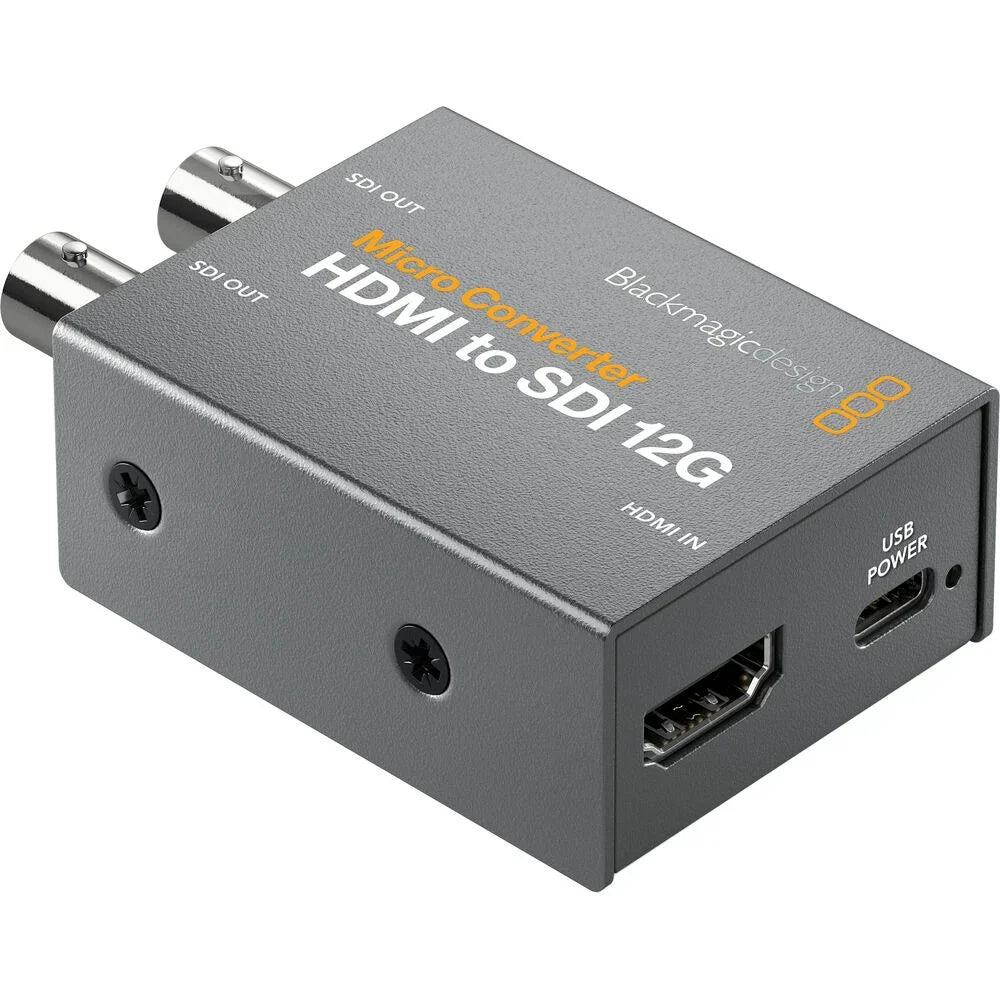

Blackmagic Design Micro Converter HDMI to SDI 12G
Blackmagic Design Micro Converter HDMI to SDI 12G
In stock
View full details
WhatsApp us for inquiries
base with the optical platform, Super space-efficient and durable, the Micro Converter HDMI to SDI 12G from Blackmagic Design permits you to stage HDMI bodies or computers to pro-style SDI (BNC) displays or components. You can additionally use several units to extend HDMI over long distances, through a SDI cable. This space-efficient converter has one HDMI source and two 12G-SDI feeds, and they allows a setting to Level An or B when using 3G-SDI. It auto-detects and matches your HDMI source to the SDI feed and is compatible with source/feed definitions up to DCI/UHD 4K60.
The pocket-sized Micro Converter HDMI to SDI 12G contains HDMI timecode compatibility, SDI re-clocking for support over long lead runs, HDMI copy protection, and compatibility for a diverse group of pro broadcast definitions, including cine-style 48 fps. The converter provides a sturdy metal housing with power and feed LED status indicators and durable connector connections. The USB Type-C port permits the HDMI to SDI 12G converter to readily connect to and be energized by adapters, displays, laptops, or desktop computers, and it additionally facilitates firmware renewals from a Windows or macOS PC. The converter is powered through a separately provided USB Type-C lead and power supply.
capabilities — Blackmagic Design Micro — Product Guide
Dual SDI signal feeds
- One HDMI input
- Two 12G-SDI outputs
- Selectable A and B level formats
space-saving, Rugged Construction — Blackmagic Design Micro — Product Guide
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
SDI HDMI Timecode: Guide&
- HD and SD timecode support
- Converts HDMI timecode to SDI
SDI Re-Clocking: Guide
- Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution compatibility — Blackmagic Design Micro — Product Guide
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded sound — Blackmagic Design Micro — Product Guide
- Supports embedded HDMI input and embedded SDI output
LED Indicators: Guide — Blackmagic Design Micro — Product Guide
- LED indicators for video and power signals
Versatile powering Options — Blackmagic Design Micro — Product Guide
- Power from a monitor, laptop, or other component using the USB Type-C port
- Powered with a separately available USB Type-C cable and power supply
Operating System compatibility
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
| Weight | 0.2 kg |
|---|---|
| Dimensions | 8 × 5 × 3 cm |
| In the Box | Blackmagic Design Micro Converter HDMI to SDI 12G |
Key Features
- 1 x HDMI Input, 2 x 12G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- SDI Re-Clocking, HDMI Copy Protection
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
