SKU: CONVBDC/SDI/HDMI12G/P

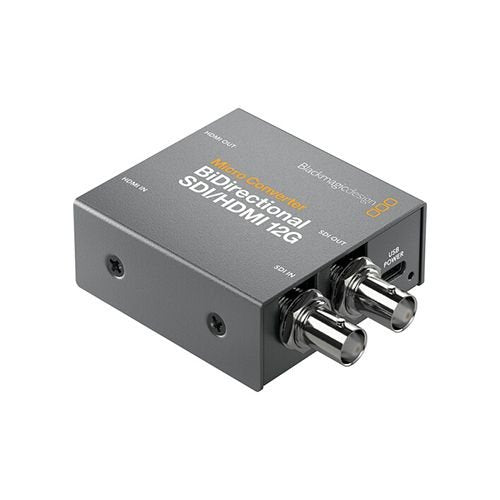

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

Name: Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
Brand: Blackmagic Design
SKU: CONVBDC/SDI/HDMI12G/P
Price: 718.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

At the point of image capture, Easily bring together SDI and HDMI components in your footage configuration with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This space-efficient bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since every conversion direction can be a distinct SD, HD, or UHD footage standard, it's such as getting two converters in one. It additionally includes body control conversion for Blackmagic HDMI bodies like the Pocket Cinema camera 4K or 6K, enabling you to use them with a SDI-based live switcher.
The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G integrates HDMI timecode compatibility, SDI re-clocking for support over long lead runs, support for an extensive selection of pro broadcast resolutions, such as cine-style 48 fps, and both HDMI and SDI embedded audio source and output. This converter contains a sturdy metal housing with power and feed LED status indicators and durable connector connections. A USB Type-C port permits the converter to readily connect to and be energized by big-screen displays, laptops, desktop computers, or projectors. A power adapter and an international plug interface set are supplied with the converter.

Powered 12G Bidirectional SDI and HDMI Conversion

Two-Way Format Conversion for SDI and HDMI

You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Every conversion direction can be a distinct SD, HD, or UHD footage standard, so it's such as getting two converters in one.

Rugged Miniature Converter for Mobile Production

Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or Windows computer

Camera Control Data over the HDMI Connection

Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables use with an SDI-based live switcher

Timecode Transfer between HDMI and SDI

HD and SD timecode support
Converts HDMI timecode to SDI and vice versa

Reclocked SDI for Longer Cable Runs

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Broad SD, HD, and Ultra HD Format Compatibility

SDI support from NTSC and PAL up to DCI/UHD 4K60
HDMI support from NTSC and PAL up to DCI/UHD 4K60

Embedded Audio throughout the Conversion Path

Supports embedded SDI and HDMI input and output

LED Monitoring for Connection Status

LED indicators for video and power signals

Included Adapter plus USB-C Power Support

Power from a monitor, laptop, or other component using the USB Type-C port

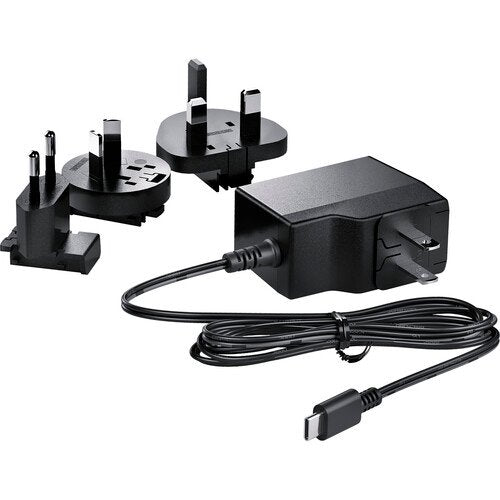

Power supply and international plug adapter set are included

FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via platform integrator, resellers & international visitors.contact us
Follow us

Weight	0.4 kg
Dimensions	15 × 12 × 8 cm
In the Box	Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply Power Adapter International Plug Adapter Set
