SKU: CONVBDC/SDI/HDMI12G

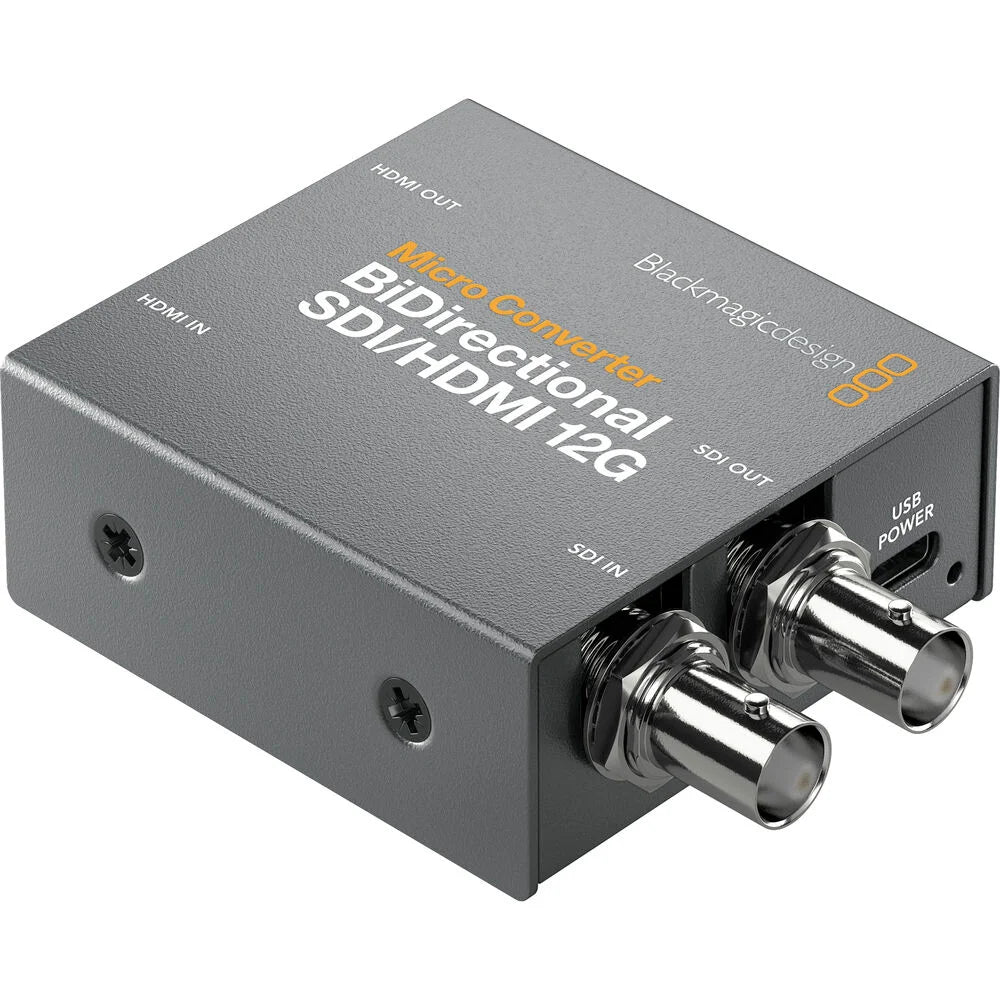

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G

Name: Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G
Brand: Blackmagic Design
SKU: CONVBDC/SDI/HDMI12G
Price: 718.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

In its primary imaging role, Easily bring together SDI and HDMI components in your footage configuration with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This space-efficient bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since every conversion direction can be a distinct SD, HD, or UHD footage standard, it's such as getting two converters in one. It additionally supplies body control conversion for Blackmagic HDMI bodies like the Pocket Cinema camera 4K or 6K, enabling you to use them with a SDI-based live switcher.
The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G contains HDMI timecode compatibility, SDI re-clocking for support over long lead runs, support for a diverse group of pro broadcast definitions, covering cine-style 48 fps, and both HDMI and SDI embedded audio source and output. This converter provides a sturdy metal housing with power and feed LED status indicators and durable connector connections. A USB Type-C port permits the converter to readily connect to and be energized by big-screen displays, laptops, desktop computers, or projectors. The converter is energized through a separately provided power adapter.

12G Bidirectional Conversion Capabilities

Convert SDI and HDMI in Either Direction

You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Every conversion direction can be a distinct SD, HD, or UHD footage standard, so it's such as getting two converters in one.

Pocket-Sized Metal Housing for Field Use

Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or Windows computer

Operate Supported Cameras through HDMI

Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables use with an SDI-based live switcher

Preserve Timecode across SDI and HDMI&

HD and SD timecode support
Converts HDMI timecode to SDI and vice versa

Reclock SDI for Stable Signal Delivery

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Format Coverage from SD through Ultra HD

SDI support from NTSC and PAL up to DCI/UHD 4K60
HDMI support from NTSC and PAL up to DCI/UHD 4K60

Carry Embedded Audio with the Video Signal

Supports embedded SDI and HDMI input and output

Status LEDs for Power and Signal Activity

LED indicators for video and power signals

Flexible USB-C Powering for Mobile Workflows

Power from a monitor, laptop, or other component using the USB Type-C port
Powered using separately available power supply
