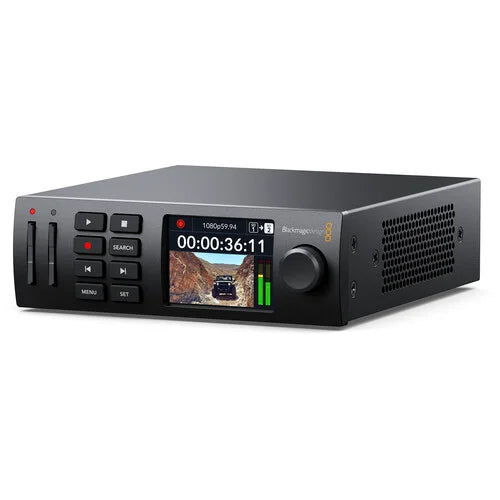

Blackmagic Design HyperDeck Studio HD Mini
Blackmagic Design HyperDeck Studio HD Mini
In stock
View full details
WhatsApp us for inquiries
Considering the complete platform, Take a space-efficient broadcast-quality capture/playback deck with you on on-location, in the studio, or constructed into a rack with the Blackmagic Design HyperDeck Studio HD Mini. The 1 RU tall recorder is 1/3 of a rack wide and powers from 100 to 240 VAC, or through an optional 12 VDC power adapter for portability. Featuring one 3G-SDI source, one each HDMI and 3G-SDI feed, and a USB Type-C webcam feed, the recorder is adaptable, enabling you to source, record, and feed/stream simultaneously. Supporting both reference and timecode in/output, this device fits perfectly into a broadcast setting, and you can use one recorder to produce an ISO capture of every camera with strong sync for live and post-production operate.
Two SD card slots enable you to acquisition with virtually unlimited capture time, and the unit additionally allows capture to USB disks through the USB Type-C feed port. The HyperDeck Studio HD Mini provides a front-panel control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for outboard control, and you can additionally control the unit through either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers through the RJ45 connector. A built-in LCD on the front panel enables you to monitor the footage.
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via platform integrators, resellers & international visitors.We are currently hiring.
Contact us here or follow here for more.
Two SD card slots enable you to acquisition with virtually unlimited capture time, and the unit additionally allows capture to USB disks through the USB Type-C feed port. The HyperDeck Studio HD Mini provides a front-panel control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for outboard control, and you can additionally control the unit through either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers through the RJ45 connector. A built-in LCD on the front panel enables you to monitor the footage.
video signal source connections
It handles SD, HD, and choose 3G signals over SDI
Supported Codecs: Guide
- ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
- DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
- H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
VTR-Style operation
Incorporates VTR-style front-panel controls for capture and playback; a built-in jog/shuttle wheel delivers analog-style control over your playback
distance-based
The device is controllable through RS-422 control and over the Ethernet or USB port
Built-In LCD Monitor: Guide
its front interface additionally integrates a built-in LCD screen that enables you to monitor source or play back footage
Included Software: Guide
The HyperDeck Studio HD Mini incorporates Blackmagic OS and Blackmagic HyperDeck Configuration
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via platform integrators, resellers & international visitors.We are currently hiring.
Contact us here or follow here for more.
| Video Input | 1 x BNC, 3G-SDI |
| Video Output | 1 x BNC, 3G-SDI 1 x HDMI Type A 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K) |
| Timecode | In: 1 x BNC out: 1 x BNC |
| Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) |
| Device Control | 1 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
| Supported Resolutions | 2K 2048 x 1080p: 30/29.97/25/24/23.98HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50SD NTSC PAL |
| SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108?1 |
| SDI Metadata Support | HD RP188 and Closed Captioning CEA?708 HDR Metadata Supported on SDI |
| Video Sampling | 4:2:2 YUV |
| Color Depth | 10-Bit |
| Color Space | REC 601 REC 709 REC 2020 |
| HDR Support | Hybrid Log?Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Autodetection of SD and HD |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs | ProRes
|
| Operating System | macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
| Rack Height | 1 RU |
| Power Supply | AC 100 to 240 VAC, 50/60 HzDC 12 VDC; 1 x Locking 5.5 mm Barrel |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm |
| Weight | 1.8 lb / 0.82 kg |
Key Features
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
