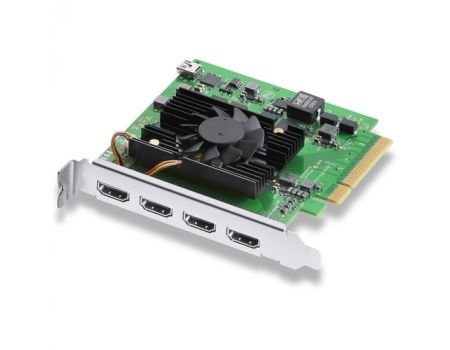

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
In stock
View full details
WhatsApp us for inquiries
From an imaging perspective, Ingest high-resolution 4K footage and audio for broadcasting or editing uses with the DeckLink Quad HDMI Recorder Acquisition Card from Blackmagic Design. The DeckLink Quad is a PCIe medium that integrates four HDMI 2.0b sources that deliver support for definitions up to DCI 4K60. Additionally, the DeckLink Quad accommodates eight channels of embedded 24-little 48 kHz audio.
The DeckLink Quad provides adaptable format and configuration support, letting you operate with popular compressed footage formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed footage. Whenever working with uncompressed footage, all pictures are pixel-for-pixel identical to the source, eliminating any generational loss. This lets you get sharper keying with green displays, cleaner compositions, heightened color correction, and additional. Support for common file formats offers ready-to-edit files for use in widely chosen editing, effects, and configuration software uses.
The DeckLink Quad is compatible with Mac, Windows, and Linux based workstations. Drivers and usefulness software are provided on the manufacturer's website.
Four-Input HDMI Capture for UHD Workflows
- PCIe capture/playback card compatible with Mac, Windows, and Linux-based workstations and servers
- Four HDMI 2.0b inputs
- Up to DCI 4K60 capture
- 12-bit 4:4:4 color up to 4K30 in all modes
- HDMI inputs are switchable between SD, HD, UHD 4K, DCI 4K, and DVI modes
- Rec. 601, Rec. 709, and Rec. 2020 color space
- Copy protection compliant; HDMI input is unable to capture from copy protected HDMI sources
- Supports eight channels of embedded 24-bit 48 kHz audio in SD/HD/UHD/DCI 4K
Software Applications Supported: Guide — Blackmagic Design DeckLink — Product Guide
Allows major software uses such as Wirecast, vMix, and OBS.
Other supported uses incorporate Cinegy Acquisition Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, and Utilities On Air Just: In.
| Host Connection | PCIe x8 (PCIe 1.0) |
| Video Input Connectors | 4 x HDMI (HDMI 2.0b) |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) PAL at 50 fps NTSC 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/50/59.94/60 fps DVI 480p at 60 fps |
| HDCP Support | None |
| OS Compatibility | Windows 8.1 or Later macOS 10.14 or Later Linux |
| Power Consumption | 23 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Certifications | CE, FCC, RCM, as per Manufacturer |
| Dimensions | 4.29" / 108.97 mm |
| Weight | 4.51 oz / 128 g |
Key Features
- Record up to DCI 4K60 HDMI Video
- 4 x HDMI 2.0b Inputs
- PCIe Interface Card
- Up to 4K30 12-Bit 4:2:2 in All Modes
- Switchable-Mode HDMI Inputs
- 8-Channel, 24-Bit 48 kHz Embedded Audio
- macOS, Windows, and Linux Compatible
