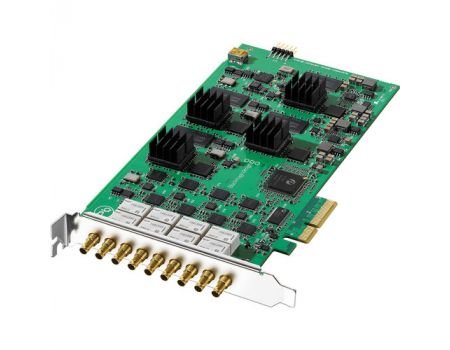

Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card

Name: Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card
Brand: Blackmagic Design
SKU: BDLKDVQD2
Price: 3956.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

From the sensor onward, the Blackmagic Design DeckLink Quad 2 is an 8-lane PCIe medium that integrates eight bidirectional 12-little SD/HD/3G-SDI connectors that are independently configurable to deliver any combination of eight acquisition or playback channels at up to 1080p60. The medium allows compressed footage formats such as ProRes and DNxHD, as well as uncompressed 10-bit 4:2:2 and 4:4:4 footage, making it excellent for use in both live broadcast and post-production. It is compatible with Mac, Windows, and Linux computers, and supported by a broad variety of software uses. For use with uses that don't capture footage on their own, Blackmagic's Media Express applications is supplied, allowing you to acquisition, organize, and manage your media.

Eight Configurable SDI Channels on DeckLink Quad 2

Eight bidirectional 12-bit SD/HD/3G-SDI connectors
8-lane PCIe interface compatible with Mac-, Windows-, and Linux-based workstations and servers
Each SDI input and output can be a different video standard, as they're all independent
Single black burst/tri-sync reference input
Supports uncompressed 10-bit 4:2:2 and 4:4:4 signals
Cross-conversion between 720p and 1080p on video capture
SD upconversion to 720p or 1080p on video capture
HD to SD downconversion on video capture or playback
Supports 16 channels of embedded audio per input/output

Included Software: Guide

Media ExpressDisk Responsiveness TestLiveKeyBlackmagic Desktop Footage UtilityDrivers for macOS, Windows 8/10, and Linux

Supported Software Applications: Guide

Supported uses incorporate:DaVinci ResolveFusionApple Final Cut Pro XAdobe Premiere Pro CCAdobe After Effects CCAdobe Photoshop CCAvid Media ComposerAvid Pro ToolsAvid SymphonyAvid News CutterSteinberg CubaseSteinberg NuendoNukeTools On Air only:in, live:cut, only:play, and only:liveSoftron OnTheAirMovieRecorder and OnTheAir CGFlash Media Live EncoderWirecastLivestream ProcasterResolume Avenue 4Sony Vegas ProCorel VideoStudio Pro X4CyberLink Power DirectorMAGIX Footage Pro X4Vidblaster Pro & Studio and BroadcastUniplayPlaybox AirBoxCasparCGMagicsoft CGXsplit BroadcasterImagine Communications Velocity and InfoCaster

Host Connection	PCIe x8 (PCIe 2.0)
Shared Input/Output Connectors	8 x BNC (3G-SDI) Male
Input Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps NTSC 60 fps PAL 50 fps
Input Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio Input	SDI: 16-Channel
Output Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps NTSC 60 fps PAL (768 x 576) 50 fps
Embedded Audio Output	SDI: 16-Channel
