SKU: BDLKMINIMON3G

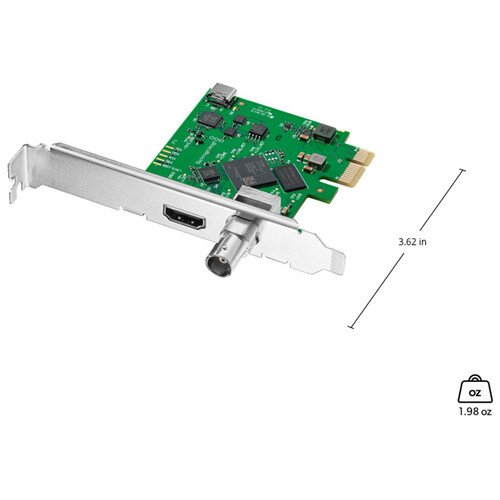

Blackmagic Design DeckLink Mini Monitor HD
Blackmagic Design DeckLink Mini Monitor HD
In stock
View full details
WhatsApp us for inquiries
Monitor your computer's video output through SDI or HDMI with the Blackmagic Design DeckLink Mini Display HD by .
This 1-lane PCIe slot playback medium with SDI and HDMI feeds, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, delivering you with only the playback and observation operation for delivering broadcast-quality footage via HDMI or SDI displays.
The card accommodates up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro.
In asset, the card allows hardware-based real-time colour space conversion.
The card additionally automatically switches between SD and HD formats, so it'll accommodate all common footage formats as well as HDR.
PCIe 1-lane medium, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
V210 (10-little YUV), 2vuy (8-little YUV), ARGB, BGRA (8-little RGB), r210 (10-little RGB), R12B, R12L (12-little RGB)
Contact us here or visit here for more.
This 1-lane PCIe slot playback medium with SDI and HDMI feeds, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, delivering you with only the playback and observation operation for delivering broadcast-quality footage via HDMI or SDI displays.
The card accommodates up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro.
In asset, the card allows hardware-based real-time colour space conversion.
The card additionally automatically switches between SD and HD formats, so it'll accommodate all common footage formats as well as HDR.
PCIe Compatibility: Guide
PCIe 1-lane medium, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
Hardware Frame Buffer: Guide
V210 (10-little YUV), 2vuy (8-little YUV), ARGB, BGRA (8-little RGB), r210 (10-little RGB), R12B, R12L (12-little RGB)
In the Box: Guide
- Blackmagic Design DeckLink Mini Monitor HD
- Low-Profile Slot Bracket
- Limited 1-Year Warranty
Contact us here or visit here for more.
Key Features
- Broadcast-Quality Playback & Monitoring
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Outputs
- Up to 1080p60 Resolution Support in HDMI
- Supports up to 2K DCI over SDI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
