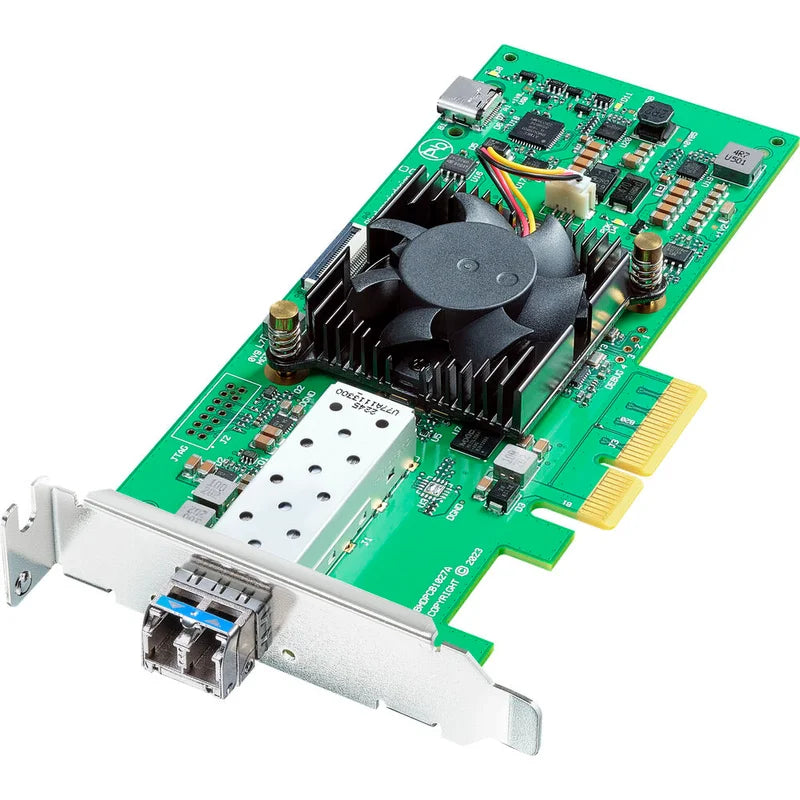

Capture and play back HD footage directly into 2110 IP-based broadcast systems with the DeckLink IP HD Optical from Blackmagic Design. This versatile PCIe card can capture and play back 10-bit uncompressed footage at resolutions up to 1080p60 with two source and two feed channels of footage over a single 10G optical fiber SFP+ port with embedded audio. The Decklink IP handles all popular footage software including DaVinci Resolve, Avid Media Composer, Final Cut Pro, Adobe Premiere, and more, with full compatibility with the latest Mac, Windows, and Linux working systems.
This PCIe 4-lane, generation 2 card allows a very vast range of codecs, such as AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, and Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, and 10-bit 4:4:4.
Other supported uses incorporate: Fusion, Adobe After Effects, Avid Pro Tools, Steinberg Cubase and Nuendo, Adobe Photoshop, Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro and Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X/Studio/Broadcast, Uniplay One/CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard ,Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Footage WebClip2Go, and Autodesk Flam.
Ideal acquisition & media playback for 2110 IP Broadcast Systems — Blackmagic Design DeckLink
The DeckLink IP HD Optical conforms to the SMPTE ST2110 standard for IP footage, which specifies the transport, synchronization, and description of footage, audio, and ancillary data over managed IP networks for broadcast. It additionally keeps footage sources in sync through a common PTP clock.
Built-In video signal Firewall — Blackmagic Design DeckLink
The Ethernet port is isolated from anything other than footage and audio. Footage and audio are transferred to on board DeckLink frame buffers where footage playback is managed and then converted to 2110 IP footage channels, making it virtually impossible for rogue software or hackers to access the 2110 IP network directly.
High Speed 4-Lane PCIe Connection: Guide — Blackmagic Design DeckLink
The high speed 4-lane PCIe interface supplies a link to the host computer that is fast enough to handle several HD footage channels, as well as simultaneous capture and playback on each of the channels. With PCIe, you get very low latency combined with highly accurate time synchronization to the software that is capturing or playing footage.
HD Formats up to 1080p60 and Supports All SD — Blackmagic Design DeckLink
The DeckLink IP HD Optical is multi rate and accommodates all SD and HD formats. In standard definition, the card handles both 525i59.94 and 625i50 standards. In high definition, compatibility includes all 720p footage standards up to 720p60, all 1080 interlaced standards up to 1080i60, and all 1080p standards up to 1080p60.
True 10-Bit Broadcast video signal Quality — Blackmagic Design DeckLink
Capture and play back popular footage formats such as Apple ProRes, DNxHD, or even uncompressed 10-bit, which is the most commonly used television standard as colors can be represented with four times the precision of 8-bit footage. This maintains the sharpest green screen keying, seamless VFX compositions, and superior color correction.
NMOS Protocol for Building a Virtual Router: Guide — Blackmagic Design DeckLink
NMOS interface specifications enable all 2110 IP footage devices to operate together as a large virtual router. Videohub Smart Control can route sources to destinations on 2110 IP networks since it can act as a NMOS controller. The NMOS interface specification describes how SMPTE 2110 devices are discovered and controlled on IP networks. This card handles IS-04 for discovery and registration of IP footage devices and IS-05 for link management between IP footage devices. This means you can make links between sources and destinations just like a traditional SDI router, but all inside the Ethernet network.
Build Custom Broadcast Automation Servers: Guide — Blackmagic Design DeckLink
The DeckLink IP HD Optical can be easily combined inside your custom broadcast automation systems. There are many automation tools provided and on the Mac platform, you can use Tools On Air just: Broadcast Suite, Softron OnTheAir, MovieRecorder, and OnTheAir CG. On the Windows platform, you get compatibility with VidblasterX, Studio and Broadcast, Uniplay, and Playbox AirBox. These powerful software tools help to manage all types of broadcast automation tasks, and they are proven solutions that are currently running thousands of television stations worldwide.
Build Streaming Servers for Global Broadcasting: Guide — Blackmagic Design DeckLink
Build streaming workstations that let you live stream to millions of global viewers online. On the Mac, you get streaming solutions such as Open Broadcaster, Wirecast, Livestream Producer, and more. Whenever streaming on Windows, you get compatibility with Open Broadcaster, Xsplit Broadcaster, Wirecast, and Livestream Producer. This card makes possible you to take any 2110 IP feed and convert it into live streams to as many online platforms as you need, and with the ATEM Streaming Bridge, you can even link up remote broadcast networks.
Media Express Software Included: Guide — Blackmagic Design DeckLink
Blackmagic Media Express is included, and it permits you to capture and play back in uncompressed YUV 4:2:2 QuickTime, AVI, DPX, ProRes, DVCPRO, and MJPEG file formats, making it an ideal option for capturing footage from old broadcast decks for archiving. Since the speeds of flash based storage media can vary a lot between brands, this DeckLink card additionally incorporates Blackmagic Disk Speed Test. This means you can check the speed of media disks, with the results displayed in frames per second at numerous television standards.
Develop Custom Solutions: the DeckLink SDK — Blackmagic Design DeckLink
The enhanced developer SDK for Mac, Windows, and Linux can be downloaded free of charge, making it easy to develop your own custom solutions for in-house use or to sell to other broadcasters. The SDK offers low level control of hardware whenever you need flexibility, as well as high level interfaces, which are a lot easier to use whenever you need to perform more common tasks, and it establishes a solid foundation for developing commercial quality broadcast solutions.
