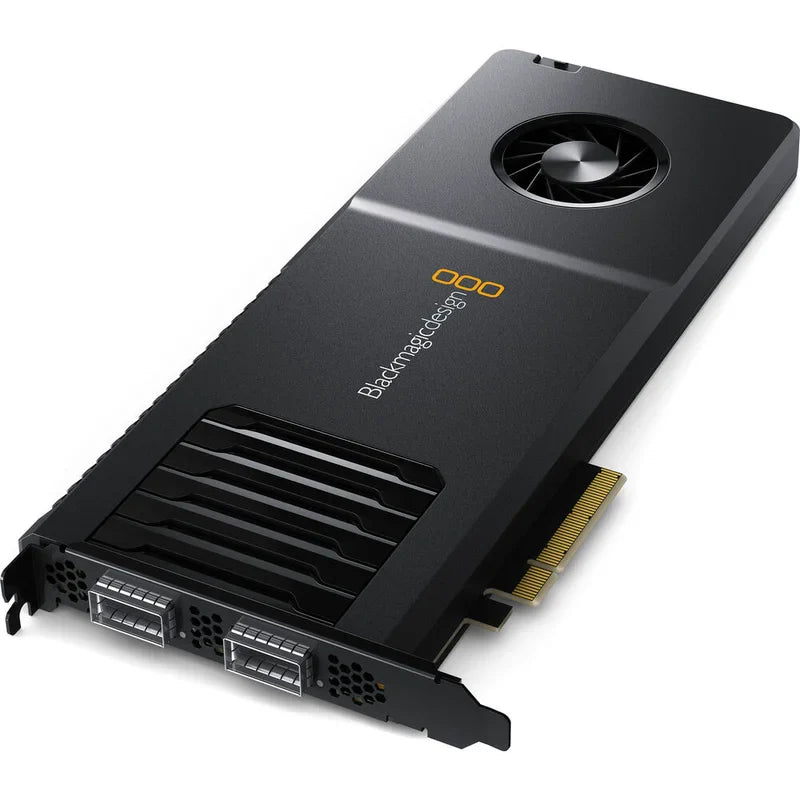

In practical monitoring terms, the Blackmagic Design DeckLink IP 100G is a powerful PCIe Generation 4 capture and playback card engineered for professional broadcast settings through SMPTE 2110 IP network systems. Developed to meet the evolving demands of modern live and post-production processes, compatibility includes up to eight simultaneous UHD footage channels via dual 100G Ethernet QSFP28 ports, enabling full redundancy. Direct GPU-memory transfers through GPU Direct RDMA keep latency exceptionally low for live compositing, AI workloads, and real-time graphics rendering. Constructed for diverse broadcast infrastructures, the card is compatible across macOS, Windows, and Linux systems while maintaining universal compatibility with all major footage software, which include DaVinci Resolve, Adobe Premiere Pro, Avid Media Composer, and more.
Beyond performance, the DeckLink IP 100G emphasizes flexibility and security. The unit provides support for a wide array of footage formats, both compressed and uncompressed, up to DCI 4K120 with 10-bit 4:4:4 color. Built-in support for SMPTE 2110 standards permits full transport of uncompressed footage, ancillary data and audio across managed IP networks, synchronized through PTP (Precision Time Protocol). By isolating transfers, it also functions as a hardware firewall for footage transfers to frame buffers, offering protection from rogue software and unauthorized network access. Whether for multichannel broadcast servers, virtual production stages, or GPU-accelerated AI pipelines, the DeckLink IP 100G is engineered to produce uncompromising footage capture and playback with ultrafast performance.
enhanced construction

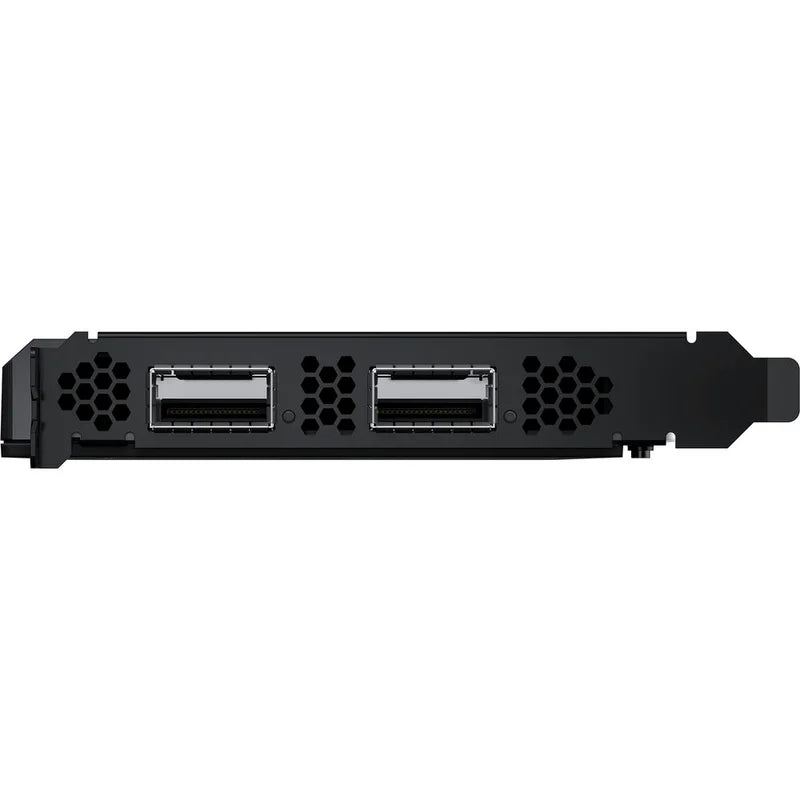

- Dual 100 Gb/s QSFP28 Ethernet ports for full redundancy
- PCI Express 8-lane Generation 4, compatible with 8- and 16-lane PCI Express slots
- 6-pin auxiliary power connector for stable high-speed operation
- Built-in active cooling for thermal management under heavy load
Formats and Video Standards
- Up to eight simultaneous channels of HD, UHD 4K, and DCI 4K up to 120 fps
- Supports SD (PAL and NTSC), 720p, 1080p, DCI 2K, UHD 4K, and DCI 4K standards
- Static HDR metadata support with HLG and PQ characteristics
- 8-, 10-, and 12-bit color in RGB 4:4:4; 8- and 10-bit color in YUV 4:2:2
- Rec. 601, Rec. 709, and Rec. 2020 color spaces
OS Compatibility and Software
- Works with DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, AVID Media Composer, and more
- Compatible with macOS, Windows, and Linux
- Includes Media Express, DaVinci Resolve, Disk Speed Test, Livekey, and Blackmagic Desktop Video Utility software
Network Protocols and Broadcast
- SMPTE 2110-20 (video), 2110-21 (timing), 2110-30 (audio), 2110-40 (ancillary data)
- SMPTE 2022-7 stream redundancy
- NMOS IS-04 and IS-05 compliant for discovery and connection management
- PTP (Precision Time Protocol) IEEE 1588-2008 for frame-accurate sync
