SKU: BDLKDUO2
Blackmagic Design DeckLink Duo 2
Blackmagic Design DeckLink Duo 2
In stock
View full details
WhatsApp us for inquiries

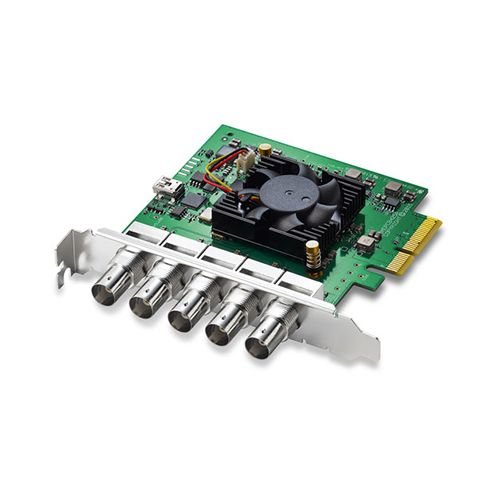

From an imaging perspective, with four bi-directional SDI connections, the Blackmagic Design DeckLink Duo 2 is a versatile footage I/O card for professional footage processes. Since every SDI interface can be arranged to be either a source or a feed, a PC with this medium installed can be purposed as a media play-out setup, a multi-screen electronic signage server, a live keyer, a real-time multi-channel acquisition setup, or a combination of the above to integrate your specific process of the moment. A reference source is additionally provided for syncing with other studio hardware.
| Host Connection | PCIe x4 (PCIe 2.0) |
| Video Input Connectors | 4 x BNC (12G-SDI) Female |
| Input Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps PAL 50 fps NTSC 60 fps |
| Audio Input Connectors | None |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio Input | SDI: 16-Channel |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656 |
| Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input |
| OS Compatibility | Windows 8.1.10 or Later macOS 10.14.15 or Later Linux |
| Power Consumption | 10 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Certifications | C-Tick, CE, FCC, as per Manufacturer |
| Dimensions | 3.7" / 9.4 cm |
| Weight | 5.64 oz / 160 g |
Key Features
- SD/HD/3G-SDI Input/Output
- PCI-E Interface
- 1080p 4:4:4 by Single-Link 3G-SDI
- 10/12-Bit Processing
- Down/Up/Cross Conversions
- Mac OS X, Windows, and Linux Compatible
