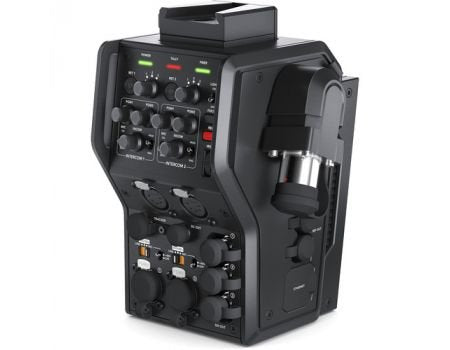

Blackmagic Design Camera Fiber Converter
Blackmagic Design Camera Fiber Converter
In stock
View full details
WhatsApp us for inquiries
Secure the Blackmagic Design Unit Fiber Converter to your URSA Broadcast unit to connection with Studio infrastructure through SMPTE fiber optic lead and a separately provided Studio Fiber Converter for breakout up to 1.6 miles away. The converter shifts the primary common camera settings to the rear of the unit assembly for ease of operator availability. Studio-standard interfacing incorporates talkback headset 5-pin XLR ports, as well as SDI footage for monitor feed. In total, the imaging device Fiber Converter has a one outgoing 12G-SDI link for HD or UHD 4K footage and three incoming 3G-SDI links for observation with a standalone Studio viewfinder. Use the V-lock at the top to secure the Studio viewfinder. All installation hardware is supplied for securing the converter to the unit.
| Connections | SMPTE Optical Fiber: 1 x SMPTE 304 12G-SDI Input: 1 x BNC 12G-SDI Output: 1 x BNC 3G-SDI Return Output: 3 x BNC Talkback Headset: 2 x 5-pin XLR Analog Audio Input: 2 x XLR (AES/mic/line) Computer: 1 x USB Type-C |
| Video Standards | 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.9 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| SDI Standards | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M |
| Audio Sampling | 24-bit, 48 kHz |
| Video Sampling | 4:2:2 |
| Bit Depth | 10-bit |
| Color Space | REC 709, REC 2020 |
| Dimensions | 7.5 x 5.5 x 5.4" / 19.1 x 14 x 13.8 cm |
| Weight | 4.9 lb / 2.2 kg |
Key Features
- For URSA Broadcast
- Full Studio Connectivity
- SMPTE Fiber Interface
- 12G-SDI Output
- 3 x 3G-SDI Return Feeds
- 5-Pin XLR Talkback Headset Connections
- Camera Controls Moved to Camera Rear
