Blackmagic sound Monitor 12G G3

On the capture side, Keep tabs on your audio with the Blackmagic Audio Monitor 12G G3, a 1 RU option engineered by Blackmagic Configuration. Boasting a dual-subwoofer configuration complemented by wide-range speakers and Class-D amplifiers, this audio monitor produces premium sound quality. The upgraded G3 variant introduces support for the latest SMPTE 2110 source, enhancing its compatibility with broadcast systems. Equipped with a 12G-SDI source, balanced XLR analog audio source, balanced AES/EBU digital source, and HiFi audio sources, alongside an HDMI 2.0 feed, this monitor ensures broad interfacing options. On the front panel, multicolored audio level meters and a built-in LCD facilitate seamless observation of footage sources.

Versatile Monitoring Solutions: Guide

The Blackmagic Audio Monitor 12G G3 finds its place in broadcast racks, audio decks, footage servers, and live broadcasts. Its intuitive configuration permits easy switching between stereo pairs of the 12G-SDI source, making it well suited to monitoring multiple language tracks. Space-efficient in size, it fits perfectly in portable flyaway kits, broadcast trucks, and editing and audio post-production facilities where space is at a premium.

Robust Sound operation

Featuring a dual-subwoofer configuration, this monitor produces a broad and balanced frequency response, helping ensure clarity in both high and low frequencies. Its robust feed makes it appropriate for noisy settings, such as broadcast hardware rooms with considerable cooling fan noise.

Accurate Metering: Guide

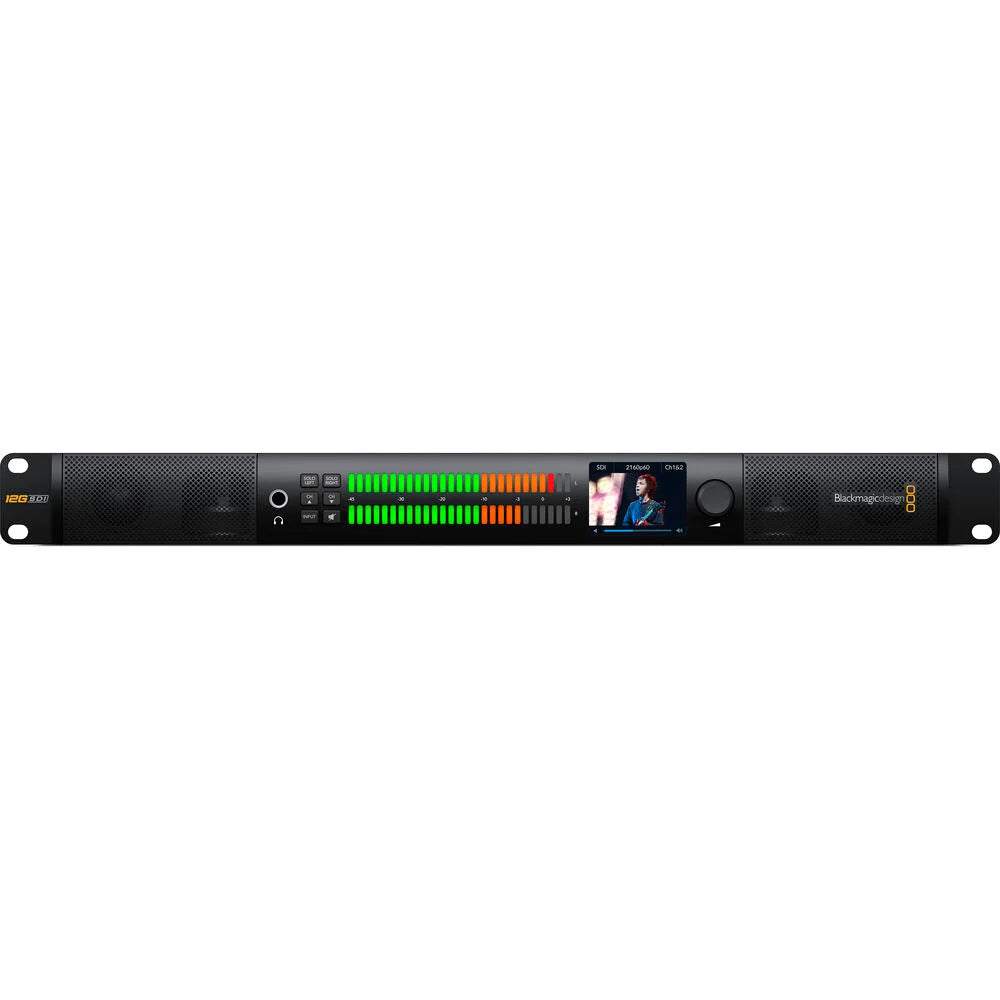

The front panel is adorned with two large and bright audio level meters, each equipped with multicolored RGB LEDs. Operators can choose between VU or PPM metering scales, with options for EBU or BBC meters. The extensive meter segments cover a wide dynamic range, from -20 to +18 dB, depending on the chosen scale. Moreover, standard loudness metering options, including K-weighted and relative to full scale (LKFS), facilitate normalization for broadcast TV and footage delivery. The bright meters maintain clear visibility in multiple lighting conditions, and the supplied adhesive labels allow customization of meter standards.

Precision Metal Construction of Blackmagic sound Monitor 12G G3

Crafted with precision machined metal, this configuration boasts reliable durability. The robust chassis not only maintains structural integrity but additionally minimizes unwanted noise and vibrations, resulting in superior sound quality. The front panel is equipped with practical features including audio level meters, an LCD footage monitor, and a headphone/speaker volume control knob. Navigation via audio pairs, left/right solo, mute, and source selection is facilitated by a built-in illuminated keypad. Additionally, for private observation, a built-in headphone socket is conveniently provided.

Cutting-Edge 12G-SDI Technology Installed in Blackmagic sound Monitor 12G G3

The Blackmagic Audio Monitor 12G is compatible with an extensive selection of SD, HD, and Ultra HD footage resolutions. Its 12G-SDI source and HDMI 2.0 feed support high-resolution Ultra HD observation, supporting optimal visual fidelity. Leveraging 12G-SDI technology permits seamless operation at resolutions and frame rates of up to 2160p at 60 fps, all transmitted over a single cable. With HDMI 4K interfacing, operators can effortlessly connect to Ultra HD TVs and projectors, while the 12G-SDI source allows observation of any of the 16 audio channels.

SMPTE 2110 Network Integration: Guide

Featuring an SMPTE 2110-compliant network link, this audio monitor seamlessly integrates with 2110 IP footage systems. Adhering to 2110 standards for IP footage, it maintains efficient transport, synchronization, and description of footage, audio, and ancillary data for broadcast uses. Supporting a range of 2110 specifications such as uncompressed footage (2110-20), Blackmagic IP compressed UHD codec, traffic shaping/timing (2110-21), audio (2110-20), and ancillary data (2110-40), the monitor offers versatile operation. Moreover, with NMOS interface support, connected 2110 IP footage devices can effectively function as a large virtual router, enhancing overall system efficiency and scalability.

Video Connectivity and Audio

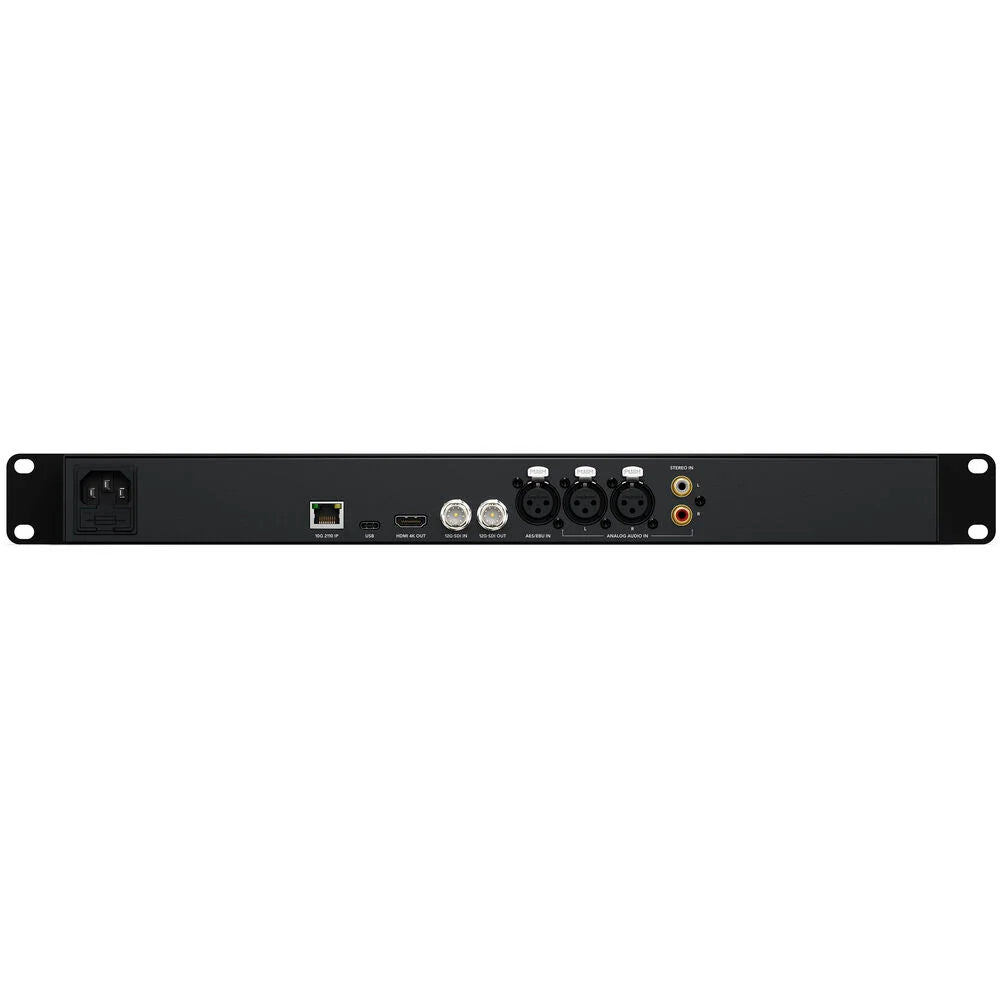

Offering a diverse array of audio and footage interfacing options, the Blackmagic Audio Monitor 12G G3 presents analog XLR audio, digital AES/EBU audio, and HiFi audio sources. Swift selection between sources is facilitated by the conveniently located source button on the front panel. Both the 12G-SDI footage input and HDMI 2.0 footage feed support embedded audio, enabling seamless integration with high-resolution footage technologies.

Monitoring Capabilities of Blackmagic sound Monitor 12G G3

The Blackmagic Audio Monitor 12G G3 serves as a versatile tool for converting from SDI to HDMI, catering to observation needs on large-screen televisions or footage projectors. With automated format switching between SD, HD, and Ultra HD, observation becomes hassle-free. The HDMI output handles high-resolution Ultra HD observation, requiring just a single HDMI cable for interfacing.

sound Input Specifications:

• AES/EBU audio inputs facilitate two channels of balanced 110-ohm AES/EBU via XLR.
• SDI audio inputs support 16 channels of embedded audio across SD, HD, and Ultra HD 4K formats.

sound Output Specifications:

• SDI audio outputs support 16 channels of embedded audio loop out.
• HDMI audio outputs accommodate eight channels of embedded audio across SD, HD, and 4K resolutions.
