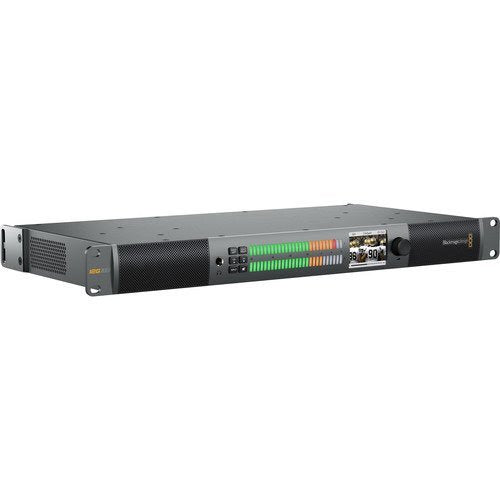

Blackmagic Design Audio Monitor 12G (1 RU)
Blackmagic Design Audio Monitor 12G (1 RU)
In stock
View full details
WhatsApp us for inquiries
Blackmagic Design sound Monitor 12G (1 RU) — Product Guide
Display your audio with the Blackmagic Design 1 RU Audio Display 12G from.
Featuring a dual-subwoofer configuration with extra wide selection speakers, the audio display is fitted with Class-D amplifiers.
It incorporates a 12G?SDI source, a balanced XLR analog audio source, a balanced AES/EBU digital source audio, HiFi audio sources, and an HDMI 2.0 output.
The front panel integrates multicolored audio level meters and a built-in LCD for observation video inputs.
Monitor Anywhere: Guide
Install the Blackmagic Audio Display 12G in broadcast racks, audio on decks, footage servers, and live transmissions.
With the push of a control you can selector between stereo pairs of the SDI source, making this unit great for observation alternative language tracks.
The space-efficient size is excellent for portable flyaway kits and broadcast trucks where room is tight or in edit and audio postproduction sites.
Practical Notes: Loud and Powerful
The Blackmagic Audio Display 12G has been developed to produce a wide and level frequency response curve with crisp highs and capable deep bass.
The device is capable and loud enough to hear your audio in noisy settings, such as broadcast hardware rooms that deliver a lot of cooling fan noise.
Precision Metering: Guide
The two big high-luminance audio level meters on the front panel function multicolored RGB LEDs under every segment.
You can choose between VU or PPM or loudness scales with a selection of EBU or BBC meters. With lots of meter segments, you can display a very wide dynamic selection from -45 to +3 dB, -12 to +12 dB, or 0 to 7 dB, depending on the scale.
In asset, you can meter loudness through standard loudness, K-weighted, relative to full scale (LKFS) to normalize levels for delivery to broadcast TV and footage.
The high-luminance audio level meters are detailed enough to read in high-luminance or dark settings.
Machined Metal Construction
The machined metal configuration is extremely strong.
This enables a sturdy chassis that produces better fidelity sound eliminating rattles and vibrations.
The front panel provides audio level meters, an LCD footage monitor, and a dependable contact-less volume control to avoid deterioration and crackling in the audio whenever adjusted.
To choose audio pairs, left and right solo, mute, and source, there is a built-in illuminated keypad and for private observation, there is a built-in headphone socket.
You can click here for more.
enhanced 12G-SDI
Blackmagic Audio Display 12G handles all common SD, HD, and Ultra HD footage resolutions.
The 12G-SDI source and HDMI 2.0 feed additionally support high-resolution Ultra HD observation.
The 12G-SDI enables you to operate at definitions and shot rates as elevated as 2160p at 60 fps, over a one lead.
You can connect to Ultra HD TVs and projectors with HDMI 4K, and you can display any of the 16 audio channels on the 12G-SDI source.
video signal Connections and Audio
The Blackmagic Audio Monitor 12G contains balanced analog XLR audio, well-controlled AES/EBU audio, and HiFi audio sources.
You can choose between sources quickly through the source control situated on the front panel.
The 12G-SDI footage input and HDMI 2.0 footage output both support embedded audio and let you connect to the high-resolution footage architecture.
Monitoring: Guide
You can use the Blackmagic Audio Display 12G to convert from SDI to HDMI for observation with big-screen televisions or footage projectors.
Blackmagic Audio Display 12G without manual intervention switches between SD, HD, and Ultra HD formats.
You can display in high-resolution Ultra HD through the HDMI feed with a one HDMI cable.
AES/EBU audio sources support two channels of well-controlled 110-ohm AES/EBU through XLR
SDI audio sources support 16 channels of embedded audio in SD, HD, and Ultra HD 4K
SDI audio feeds support 16 channels of embedded audio loop out
HDMI audio feeds support eight channels of embedded audio in SD, HD, and 4K
For more information click here.
[caption id="" match="alignnone" width="1000"]
Blackmagic Design Blackmagic Audio Display 12G (1 RU) [/caption]Key Features
- Dual-Subwoofer Design
- Class-D Amplifiers
- 12G-SDI, AES/EBU & Analog Inputs
- SDI Loop Out & HDMI 2.0 Output
- LCD Display & Audio Level Meters
