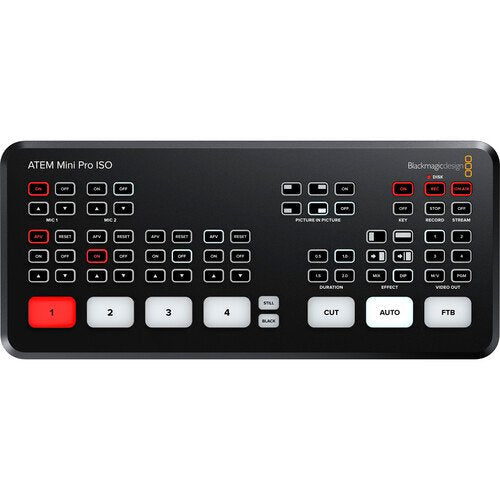

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher -SWATEMMINIBPRISO

As configured for this product, the ATEM Mini Pro ISO ( SWATEMMINIBPRISO ) HDMI Live Stream Switcher from Blackmagic Configuration is a four-input live workflow switcher with a built-in control panel developed for multicamera live broadcasting up to HD footage to the internet via Ethernet feed. It integrates a USB feed that enables you to capture the program feed as well as capture the individual HDMI sources to an outboard USB disk (not included). In addition to capture the program stream and individual sources, the ATEM Mini Pro ISO additionally records the embedded audio and analog audio sources, generating a DaVinci Resolve job file of your live stream. This enables you to make your live workflow into DaVinci Resolve to make tweaks or adjustments through the source surface that is already on your USB disk.
The ATEM Mini Pro ISO SWATEMMINIBPRISO retains the identical size, control layout, and rear panel interface links as the ATEM Mini Pro, with new electronics that enable for the ISO capture and generation of the DaVinci job file. The ATEM Mini Pro ISO allows all the same incorporates as the ATEM Mini Pro such as upstream and downstream keyers, an enhanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a response generator, and colour generators. There is additionally media subject support for fill and key pictures, which accommodates up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Applications Control Interface is employed for control and configuration, and it enables you to display the files rate, audio meters, configuration, and status of your live feed. And you can use the interface to set up broadcasting to an optional Blackmagic Design Broadcasting Bridge anywhere in the world, as long as it is linked to the internet.GeneralConnecting a USB disk to the ATEM Mini Pro ISO's USB port permits capturing the switched program stream, as well as up to four isolated (ISO) captures of source footage, as well as embedded audio, analog source audio, graphics, and a DaVinci Resolve job file of your switched programThe device has the identical footprint, layout, and links as the ATEM Mini ProStream footage up to 1080p HDQuick stream, on-air, and capture buttonsHardware encoder so there's no requirement for extra streaming softwareControl and set up timecode, stream statusFull compatibility and control integrates for BMPCC 6K/4K camerasSimultaneous USB recordingIntegration with MultiDock for live permanently drive switchingCustomize enhanced parameters with XML filesSoftware multiview with program previews, graphics, capture status, on-air status, and audio metersProgram preview source and feed buttonsTally illumination control for BMPCC 6K/4K camerasAutomatic timecode sync for all bodies
TransitionsAvailable transitions incorporate:Cut: Whenever you push the cut control, ATEM instantly changes from your current program source to the preview source. Penetrates can be performed by straight selecting inputs or by depressing the cut control to selector to the next source.Mix: A mix or dissolve blends the outgoing image into the incoming feed, producing a level blend. You can location custom timings to manually blend the transition.Dip: Only such as mix transitions, a dip transition is a gradual blend that incorporates either a solid colour, a graphic, or another mount between the two footage inputs. Dips to black or white between inputs are the primary widely chosen, or you can use logos or sponsor graphics.Wipe: Built-in wipe patterns incorporate circles, diamonds, squares, and additional. Shapes and patterns can be inverted or softened and can even deliver customized colour-coded borders.DVE: With the capable built-in digital footage effects processing engine, or DVE, you can push, spin, squeeze, or swoosh your live footage from one capture device to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even additional transition options.Upstream KeyerLayer live footage over other footage inputs or graphics with the upstream keyer. You can use the luma principal, linear principal, pattern principal, or shoot against a green display and use chroma principal to instantly composite the footage over virtual locations.Luma principal: Luma keys operate best with high-contrast pictures, like white priorities on a black backdrop, so you can use the contrast to cut the black backdrop and replace it with live footage or graphics.Linear principal: Get clean, high-quality results with linear keying by through two standalone inputs for the fill and the principal to create one footage picture. The fill signal contains the footage to be layered over the backdrop, while the principal feed contains a gray scale mask to cut output, or mask, the region to be filled.Chroma principal: Used every day for TV conditions forecasts, chroma keys are a capable way of combining live pictures in real time. The presenter typically stands in front of a green or blue backdrop and the chroma keyer will remove only that colour and bring together it with another picture, such as a footage or graphic.Pattern key: Bring together live pictures with any of the built-in wipe patterns to bring together live pictures or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to produce distinct picture-in-picture effects that can be transitioned to as readily as any live source.Downstream KeyersThe ATEM Mini switcher incorporates one downstream keyer, so you can attach high-quality graphics such as logos, bugs, and titles from the built-in media subject over the live stream program feed. Downstream keyers are the last layers of keying, so they overlay all footage switched to the main program feed.
Audio MixerThe built-in audio mixer lets you control both unit and outboard audio with accuracy level and equilibrium adjustments on all six provided audio sources and two channels. The mixer integrates selectable on/off and audio-follow-video per channel, plus it has standalone gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six channels of parametric EQ, and master gain control.
Display OutputThe HDMI monitor feed enables you to see your inputs, graphics, preview, and program feed on a one screen.
Media PlayerEliminate outboard character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media subject appears as source inputs to your switcher. You can transition to graphics as full-frame footage, or feed them to the keyers for overlaying footage. Popular picture formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
SWATEMMINIBPRISO
