SKU: SWPANELADV2ME20

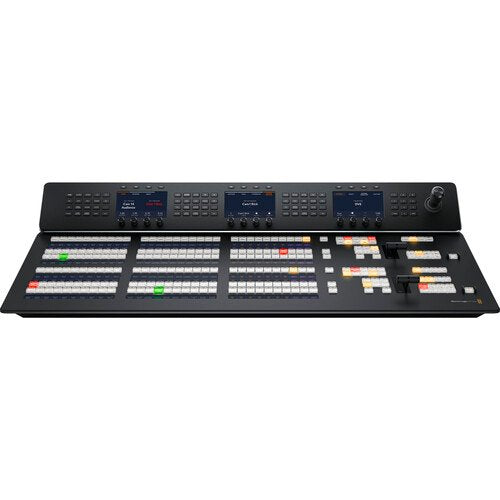

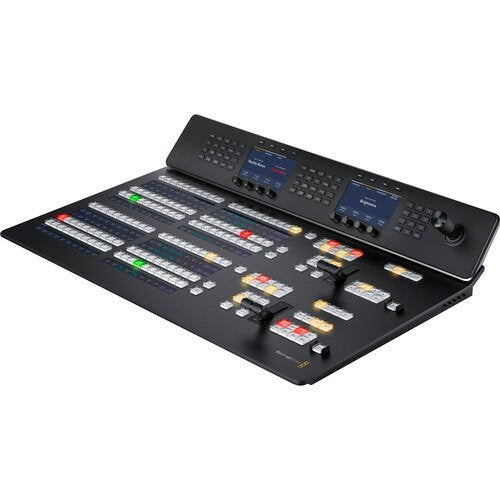

Blackmagic Design ATEM 2 M/E Advanced Panel 20
Blackmagic Design ATEM 2 M/E Advanced Panel 20
In stock
View full details
WhatsApp us for inquiries
Blackmagic Design ATEM 2 M/E enhanced Panel 20
The Blackmagic Design ATEM 2 M/E Enhanced Panel is a highly refined advancement of previous panel versions as a companion to separately provided professional ATEM switchers from.
Using elements such as high-quality keys, knobs, fader bars, and a 3-axis joystick, you'll be able to configure the extensive panel to your accurate needs.
Involved live workflows need a versatile control panel, and the ATEM 2 M/E Enhanced Panel permits you to configure, monitor, and manage your live broadcast events with functions such as unit switching, executing transitions, fades, DVE effects, and it additionally sports 8 on-air indicators.
The panel provides two rows of M/E with 20 source buttons per row, two platform control LCDs, separate LCDs for custom labeling of every row and control, 20 immediate cross points, 40 shifted cross points, two preview transitions, and numerous DSK transition selectors such as Auto, Cut, and Tie/Preview.
The ATEM 2 M/E Enhanced Panel links to the switcher through 10/100/1000 BaseT Ethernet, and there are four Ethernet loop feeds for connecting to another panel or to a media-management computer.
The panel receives firmware updates through its USB Type-C source.
Feature Highlights
Tri-color LED crosspoint keys, 20 immediate cross points and 40 shifted cross points
Two M/E rows with 20 source buttons in every row
Two configuration control LCDs for every row and LCDs for customizing labels for every control
Two fader bars, 3-axis joystick, numeric keypad
Eight on-air indicators: Guide
Two transition previews with transition rate screen
Compatible Operating Systems: Guide
macOS 10.14 Mojave, 10.15 Catalina or laterWindows 10, 64-little
For more information click here.
[caption id="" match="alignnone" width="1000"]
Blackmagic Design ATEM 2 M/E Enhanced Panel 30 [/caption]
Key Features
- Panel for BMD ATEM Switchers
- High-Quality Buttons / Knobs / Controls
- 2 x M/E Rows with 20 x Buttons per Row
- 2 System Control LCDs, Control 4 M/Es
- 4 x Gigabit Ethernet Loop Output
- Custom Labeling, Redundant Power Supply
- 8 x On-Air Indicators, 20 x Cross Points
- 3-Axis Joystick, Keypad, 2 x Faders
- USB Type-C Input for Firmware Updates
