Blackmagic Design ATEM 1 M/E enhanced Panel 30 — Product Guide

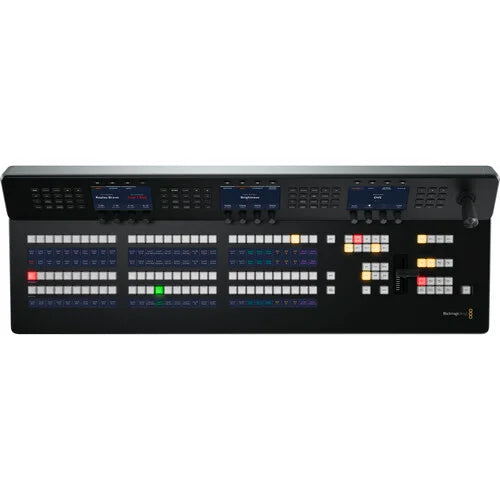

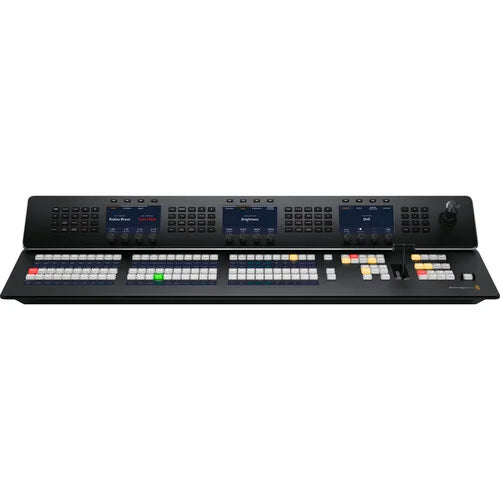

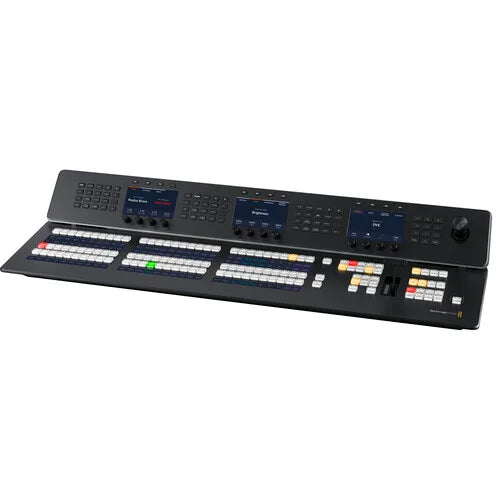

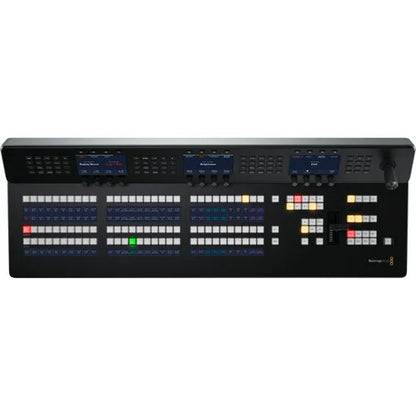

From the sensor onward, Make command of your BMD ATEM switcher through the ATEM 1 M/E Enhanced Panel 30 by Blackmagic Design. This broad control panel is a crucial companion for any ATEM switcher, supplying tactile accessibility and three separate platform control LCDs to efficiently manage switching tasks in workflows of any scale. With four-port Ethernet interfacing on the panel's rear, you won't need extra network equipment, supporting seamless incorporation even in the most challenging live workflow setups.

Functionalities of Blackmagic ATEM 1 M/E enhanced Panel 30

The device boasts a varied array of color-backlit buttons, comprising 30 input buttons. It also delivers keys for managing up to four upstream and downstream keyers, along with four M/E rows. Fitted with a dynamic 3-axis joystick and an ergonomically developed T-bar, it facilitates accurate, real-time DVE control through the T-bar, enabling accurate adjustments for transitions such as wipes and fades. You can produce customizable auto-transitions, and the panel incorporates a purpose-built preview transition button and an one-touch Fade to Black option for the entire feed.
The ATEM Enhanced Panel adopts a commonly recognized M/E style layout employed in the industry. Enhanced panel 30 contains LCD displays for menus, high-quality buttons that enable customization of illumination colour, a joystick for the DVE, and a T-bar fader. Every row of M/E keys comes equipped with built-in LCDs for dynamic labeling of source keys. In comparison, the 1 M/E Enhanced Panel 20, the newer asset, is equipped with 20 source buttons and 2 configuration control LCDs, whereas the larger 1 M/E Enhanced Panel 30 includes 30 source buttons and 3 configuration control LCDs. This version integrates keys for managing 4 upstream keyers, 4 downstream keyers, and 4 M/E rows.

powering Supply of Blackmagic ATEM 1 M/E enhanced Panel 30

Power can be supplied via an optional power cord connected to the IEC source, includings a redundant power source option. Additionally, a built-in USB-C port is provided for firmware updates. The space-efficient panel configuration maintains it fits seamlessly into standard hardware racks, making it appropriate for incorporation into fly-away kits or broadcast trucks.

Switching capabilities — Blackmagic Design ATEM — Product Guide

• 30 direct crosspoints
• 60 shifted crosspoints
• Tri-color LED crosspoint buttons
• 3 LCD menu displays
• 2 destination bus
• 2 source select bus
• Numeric keypad
