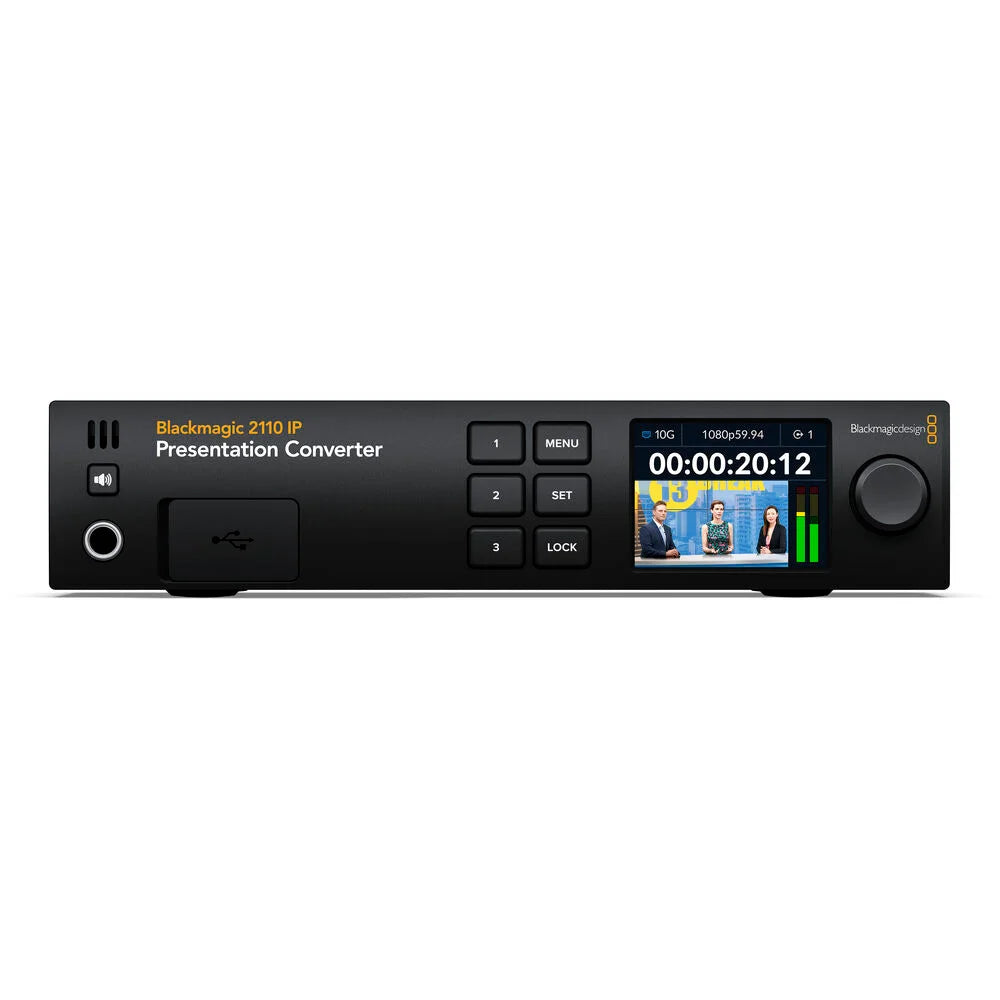

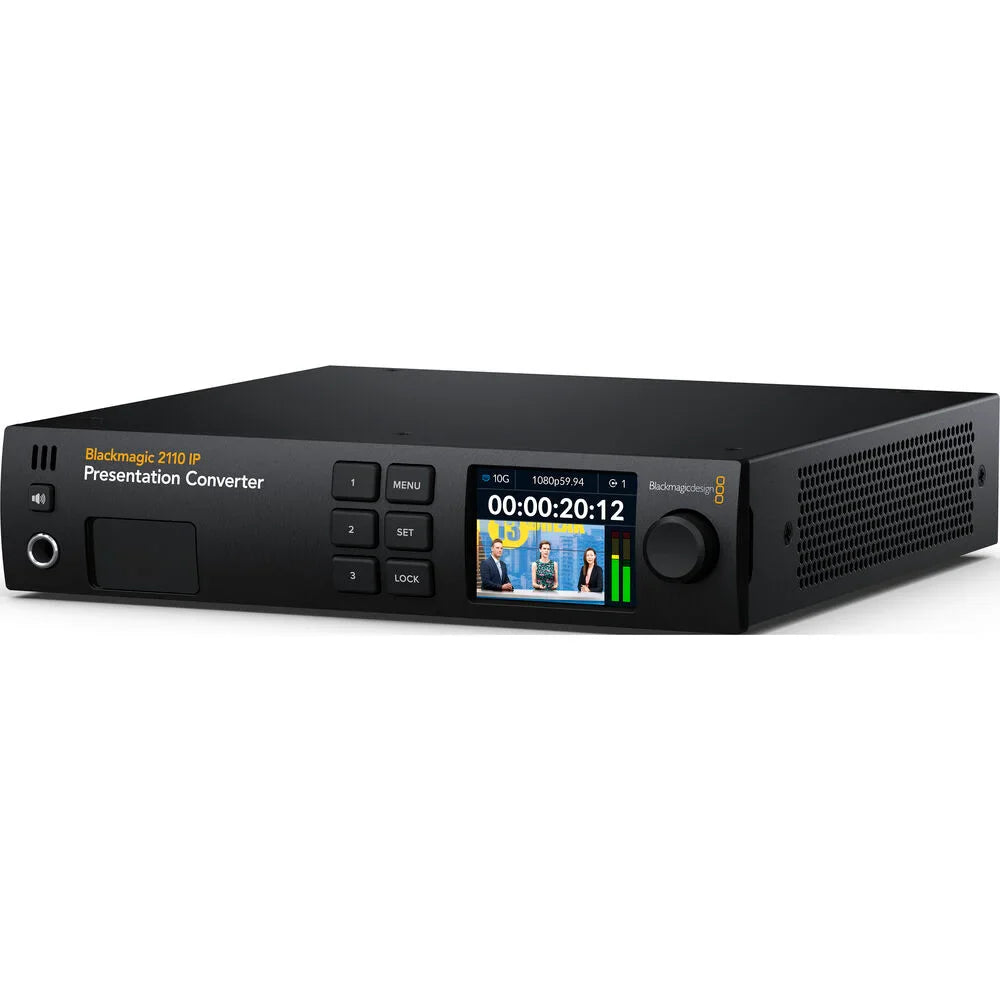

Blackmagic Design 2110 IP Presentation Converter

Blackmagic 2110 IP Presentation Converter: Guide

As configured for this product, Leverage SMPTE 2110 IP footage technology for media exhibitions with the Blackmagic 2110 IP Presentation Converter. Specifically engineered for speaker podiums, this converter facilitates microphone links and speaker feeds, while enabling seamless footage transmission to projectors via a computer or laptop via USB-C connectivity. The rapid 10G footage feed can be harnessed to transmit footage across Blackmagic's array of 2110 IP devices.

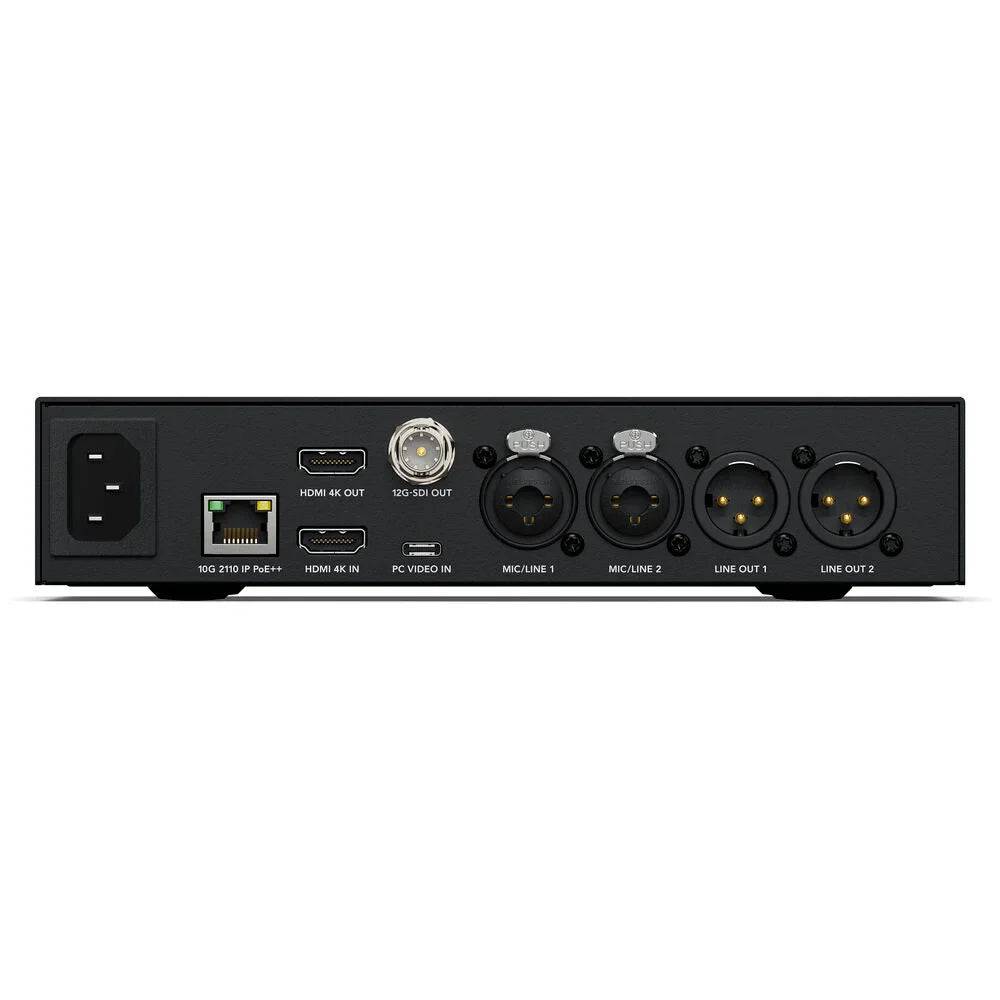

This converter handles footage resolutions of up to DCI 4K60 and incorporates 12G-SDI and HDMI source/feed interfaces for projector connections. Audio functions encompass embedded audio across all sources and feeds, balanced 3-pin XLR mic/line sources, a balanced 3-pin XLR feed for PA speakers, and a 1/4" headphone feed. Phantom power is provided for the mic sources, and the unit additionally serves as a power source for laptops via its 45W interface.

Quick capabilities

• Tailored for podium environments accommodating speaker presentations
• Facilitates connections between switchers, computers, projectors, microphones, and PA systems
• Offers HDMI and USB-C inputs for video transmission, with the added capability of powering a laptop through the 45W USB-C connection
• An HDMI output for projectors can seamlessly switch between video input or the 2110 IP return feed
• Includes XLR mic inputs and XLR audio output for PA speakers
• The RJ-45 10G Ethernet video connection can power the entire converter via PoE, even while charging a USB-connected computer.

SMPTE-2110 IP Presentation Converter video signal Standard

Blackmagic's 2110 IP devices adhere to the SMPTE ST-2110 standard for IP footage, outlining the transportation, synchronization, and delineation of 10-bit footage, audio, and ancillary data across managed IP networks for broadcasting purposes. They possess the function to synchronize SDI sources to a common PTP clock, or outboard hardware can synchronize with the reference feed derived from the PTP clock. Supporting SMPTE-2110-20 uncompressed footage, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio, and SMPTE-2110-40 for ancillary data, Blackmagic's 2110 IP devices facilitate multicast, an efficient method of disseminating footage, audio, and data from a single source to several destinations.

10G Ethernet: Guide

Blackmagic offers the 2110 IP Presentation Converter with RJ45 ports for standard Cat 6 copper runs or SFP cages for modular network links developed for optical fiber modules and cables. Utilizing simple Cat 6 copper cables supports the establishment of SMPTE-2110 systems at significantly reduced costs. Both the cabling and compatible 10GbE switching hardware are readily provided. Existing 10GbE building cabling can often be reused, reducing the need for new infrastructure. Additionally, copper cables can remotely power devices like converters and cameras. Optical fiber Ethernet versions are additionally provided, offering a cost-effective alternative to 25G or 40G Ethernet at 10G speeds. Furthermore, compatibility with 3G-, 6G-, or 12G-SDI modules is supported.

Easy deployment

SMPTE 2110 systems commonly require specialist IT support to maintain the smooth operation of footage systems, Blackmagic's 2110 IP converters provide an alternative through direct point-to-point links. Complex network switching is therefore unnecessary, while the installation retains the advantages of SMPTE 2110 IP footage through simple Ethernet cables, remote power functions, and bidirectional footage transmission. This setup closely resembles an SDI workflow, permitting the link of cameras to rack converters to facilitate camera control, program footage transmission, power delivery, and tally functions over a single cable. Alternatively, HDMI converters can be connected to rack converters for remote monitor interfacing.
