Blackmagic 2110 IP Mini BiDirect 12G Converter: Guide

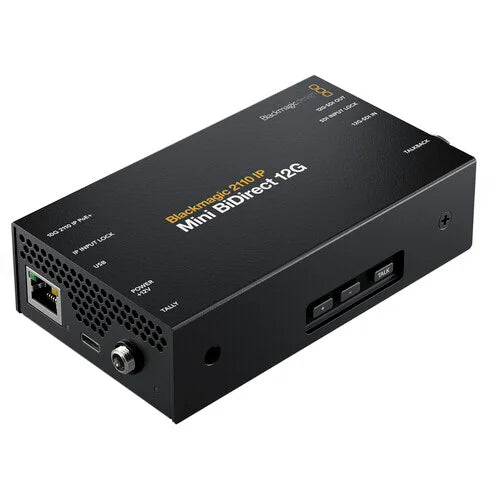

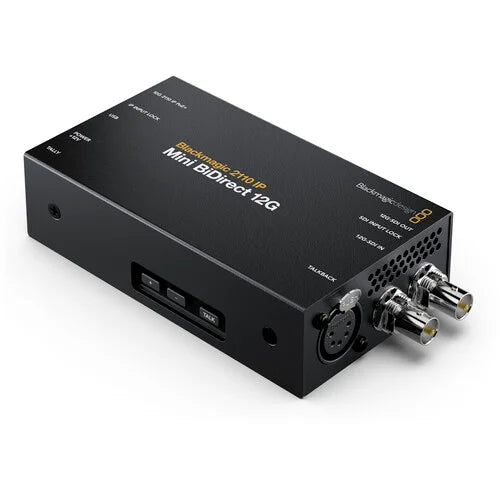

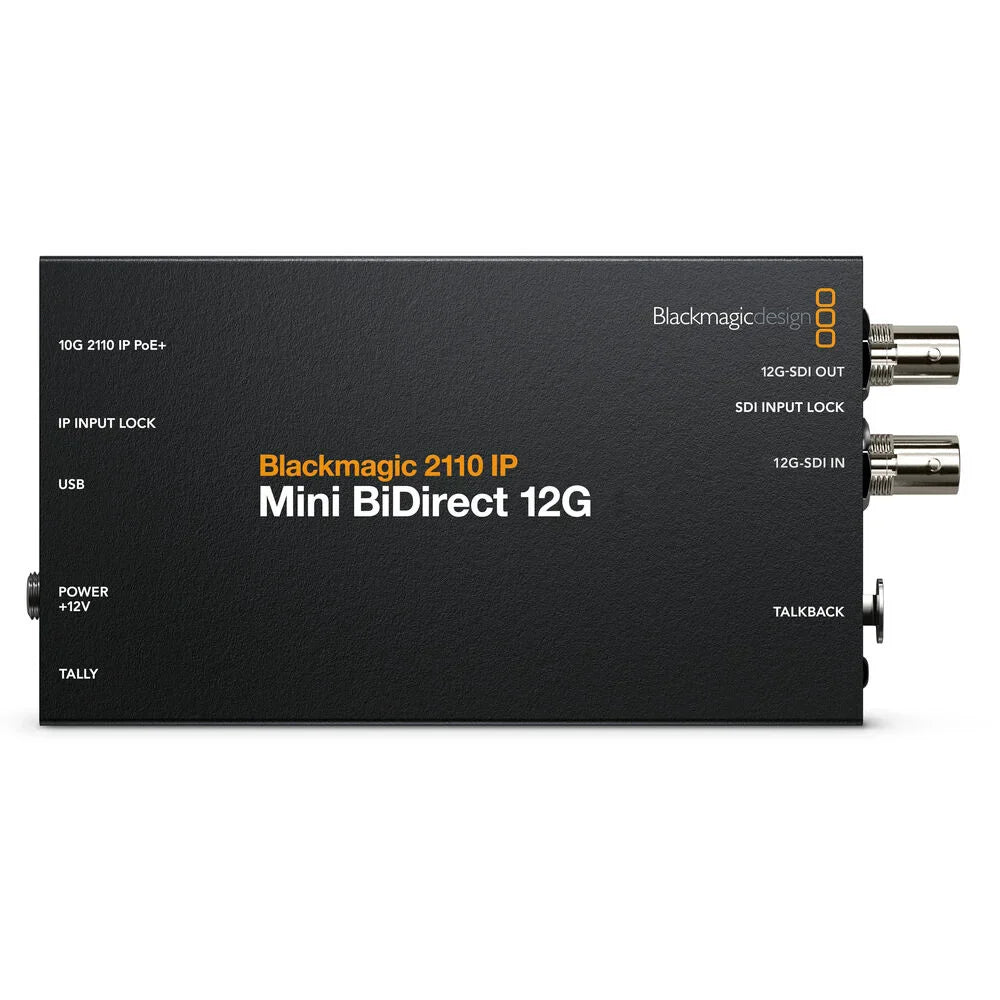

In practical monitoring terms, Link your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems effortlessly with the 2110 IP Mini BiDirect 12G Converter by Blackmagic Design. This converter facilitates the transmission of UHD 4K 12G-SDI camera footage and program return through a single unit, all in a space-efficient form factor ideal for mounting on your camera rig. Additionally, it incorporates a 5-pin XLR talkback headset and a press-to-talk button, facilitating seamless communication between camera crews and the broadcast production booth.

Blackmagic 2110 IP Mini BiDirect 12G video signal Standard

Blackmagic 2110 IP devices conform to the SMPTE ST-2110 standard for IP footage, which specifies the transport, synchronization and description of 10 bit footage, audio and ancillary data over managed IP networks for broadcast. It can additionally re-sync SDI sources to a common PTP clock or outboard gear can lock to the reference feed that’s additionally generated from the PTP clock. Blackmagic 2110 IP devices support SMPTE-2110-20 uncompressed footage, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. Plus Blackmagic 2110 IP devices support multicast, which is an efficient way of distributing footage, audio and data from a single source to several destinations.

Connect 10G Ethernet: Guide

Blackmagic 2110 IP Converters come in a range of versions featuring RJ-45 connectors for straightforward Cat6 copper cables or SFP sockets compatible with optical fiber modules and cables. Opting for simple Cat6 copper cables provides the advantage of constructing SMPTE-2110 systems at significantly reduced expenses. These cables are readily provided, and Ethernet switches supporting 10G Ethernet are widely accessible.
Additionally, many modern buildings are already equipped with 10G Ethernet cable infrastructure, enabling the utilization of existing resources. Moreover, copper cables can power remote devices like converters and cameras. Alternatively, versions tailored for optical fiber Ethernet are additionally provided. Utilizing optical fiber at 10G speed proves to be more cost-effective compared to higher-speed options like 25G or 40G Ethernet. Furthermore, operators can leverage 3G, 6G, or 12G?SDI modules for enhanced flexibility.
