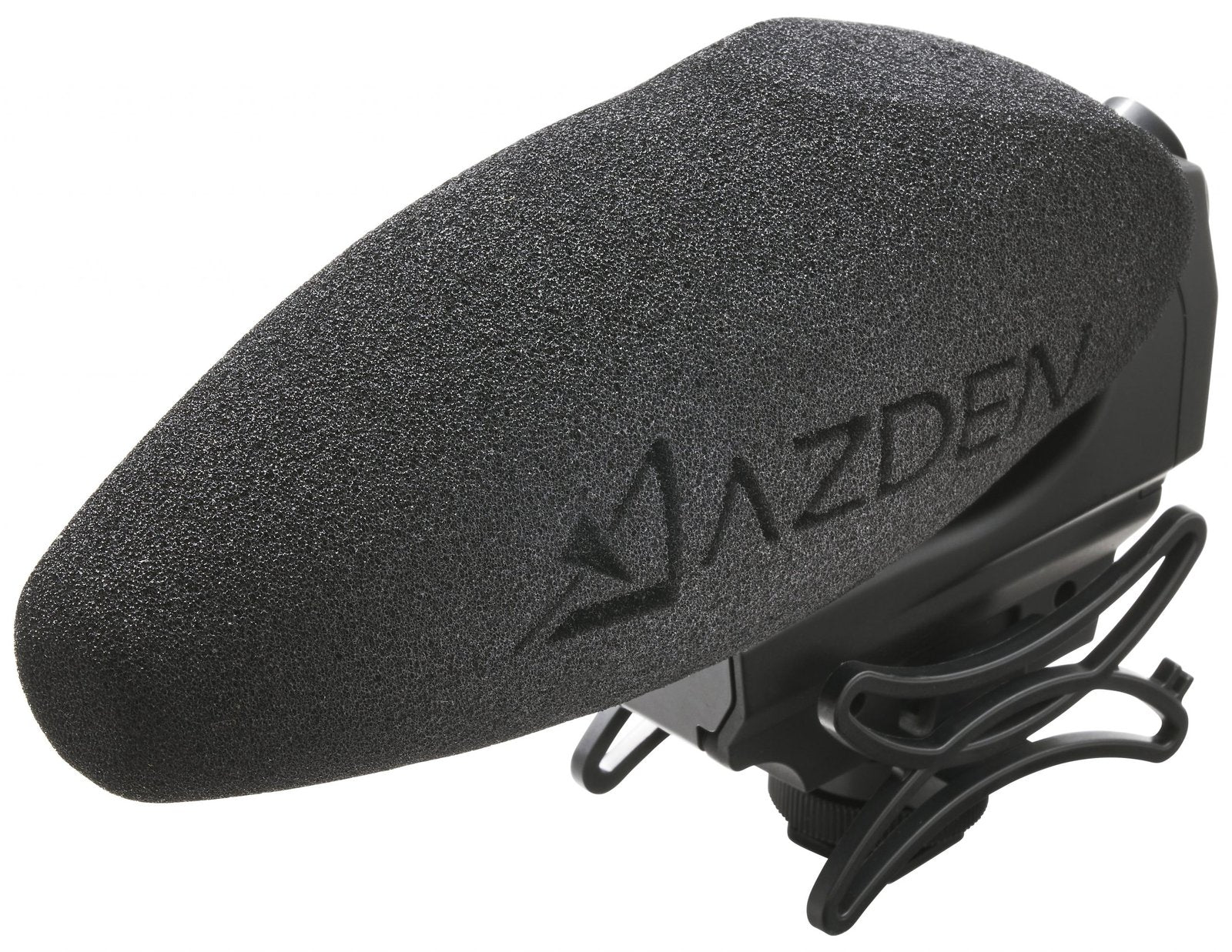

Azden SMX-30V Stereo/Mono Mixable Video Microphone

Azden SMX-30V Stereo/Mono Mixable Video Microphone

In stock

View full details

Azden SMX-30V: Guide


At the point of image capture, with its fully variable two-channel Microphone or  mono microphone capture functions and built-in swiveling shockmount, the Azden SMX-30V has directional microphone pricevideo microphone and it is clearly equipped to produce the adaptability needed by videographers and video bloggers for capture high-quality dialogue and ambient sound to a DSLR, space-efficient camcorder, or portable audio recorder. Two AA battery packs (available separately) will power the microphone for up to 100 hour period and a coiled 3.5millimetres TRS lead is supplied for tidy and simple hookup to your camera.
Azden SMX-30V has directional microphone price
Housed inside an novel casing, the SMX-30V is two mics in one—a two-channel microphone fitted with two cardioid cardioid capsules at 90° angle, and a mono supercardioid directional element in a 4.5" interference barrel. Use the stepless knob to choose two-channel, mono, or a blend of both for the strong balance of the person or object and surrounding setting audio. Additionally, the 3-step gain control and 60 Hz low-cut filter help you achieve best tone and level for your captures, so you can spend less time in postproduction.


Azden SMX-30V capabilities


Always finest shotgun microphone price with a finest fidelity.
Azden SMX-30V is The first footage microphone of the unit's kind, the SMX-30V lets the operator choose from through 100% of the two-channel microphone, 100% of the mono directional microphone, or any mix in between. Capture a dialogue scene, but require to incorporate some of the environment's ambient sound? Mix in a little of the two-channel microphone. Capture a musical performance, but require to tighten up the center two-channel picture? Mix in some audio from the mono directional microphone. The options are endless.

Dual Microphone: Complete Control


The SMX-30V is such as having a two-channel microphone, a directional microphone, and an audio mixer all combined into one device. To achieve this, there are three microphone priorities in total: two located at the top, angled at 90° for capturing a lifelike stereo picture, and one inside a 4.5" interference barrel for focused audio acquisition. Combined with a stepless audio knob, you deliver complete control over how much feed from every microphone to transmit to your camera.

Swiveling Shockmount: Guide


Another distinct function on the SMX-30V is the built-in swiveling shockmount, which permits rotation of the microphone 30° to the left or right. This is a handy function any time your audio source is not centered in-frame, enabling you to aim the microphone at your person or object, thereby getting the primary direct audio possible. In asset, the mount itself is developed to absorb vibrations and isolate the microphone from handling interference. The bottom of the mount enables attachment to a conventional camera cold-shoe slot, or through a 1/4"-20 threaded stud.

 Improved Battery Life: Guide


Battery life in the SMX-30V has been improved over the previous version to last up to 100 hour period on a pair of alkaline AA battery packs (available separately).
Detachable Output Cable
Audio feed via a 3.5millimetres TRS mini jack delivers flexibility to connect several third-party audio leads. A high-quality, coiled microphone feed cable is supplied with the SMX-30V.

 3-Step Gain operation


The 3-step gain control has +20, 0, and -10 dB parameters. Attaching 20 dB of gain to the microphone feed is a great preference to overcome noisy microphone preamps, or to simply boost quiet audio. Reducing the gain by 10 dB is primary useful to safeguard against distortion in loud settings.

Low-Cut Filter: Guide


Whenever engaged, the low-cut filter (or high-pass filter) lowers low frequencies below 60 Hz. This can be helpful in mitigating low-frequency interference from inputs such as HVAC systems, wind, or passing cars.
Auto Power
Setting the power selector to "Auto" will turn the microphone On and Off with your body automatically, saving you from losing a great make and conserving battery.

Foam Windscreen: Guide


Slip the supplied sponge windshield over the SMX-30V to lower noise caused by fans and illumination breezes.

Buy Azden SMX-30V: Guide


purchase SMX-30V today from

Azden SMX-30V Specs

Form Factor Camera-Mount
Sound Field Mono, Stereo
Stereo/Surround Configuration X/Y
Operating Principle Pressure Gradient
Capsule 3 x Condenser
Polar Pattern Cardioid, Supercardioid
Pattern Selection Continuously Variable (Adjustable on Mic)
Orientation End Address
Circuitry Solid-State
Pad None
High-Pass Filter 60 Hz, 3 dB/Octave
Tone Adjustment None
Gain Adjustment -10 to +20 dB
Indicators 1 x Red Single LED (Power)

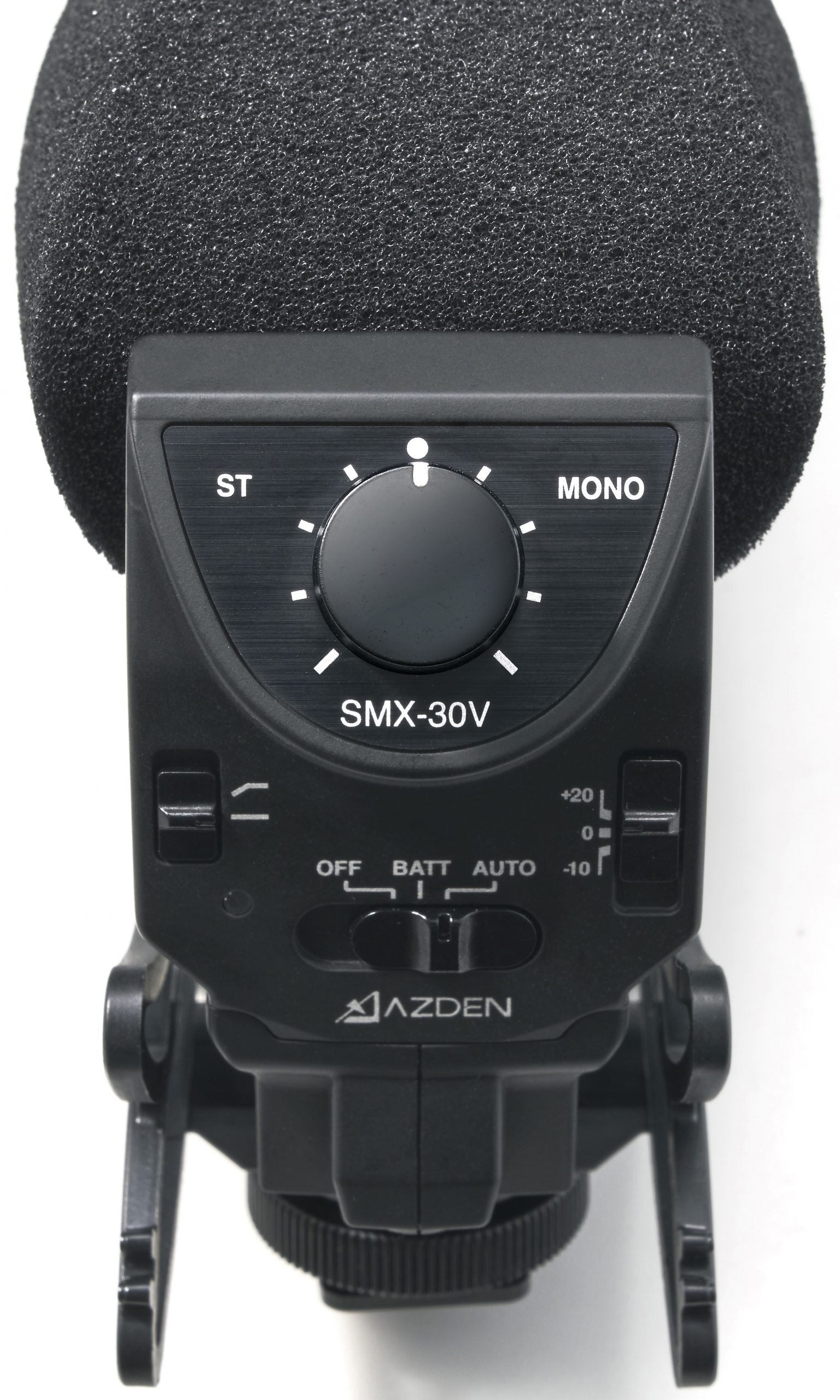

On-Board Controls Gain/Sensitivity, Polar Pattern, High-Pass Filter, On/Off
Windscreen Foam (Included)
Frequency Range 40 Hz to 20 kHz
Maximum SPL 126 dB SPL (1 kHz, 1% THD)
Impedance 75 Ohms
Sensitivity -38 dB at 1 kHz
Output Level 10.2 dBu (Max)
Dynamic Range 118 dB
Signal-to-Noise Ratio 82 dB (1 kHz)
Output Connectors (Analog) 1 x 1/8" / 3.5 mm TRS Female (on Mic)
Headphone Connector None
Operating Voltage 3 V (Battery Power)
Battery Type 2 x AA
Approximate Battery Life 100 Hours
Mounting Camera/Shoe-Mount, Shockmount (via Integrated Hardware)
Mounting Thread Size 1/4"-20 Female
Dimensions H: 4.4 x W: 1.9 x L: 6.1" / H: 11.1 x W: 4.7 x L: 15.4 cm
Weight 5.6 oz / 160 g
Key Features
  • For Videographers and Vloggers
  • Stereo/Mono Capture with Stepless Mixing
  • 100-Hr Run Time via AA Batteries
  • 3-Step Gain and Bass Roll-Off Controls
  • Coiled 3.5mm TRS Output Cable
  • Manual/Auto Power Modes
  • Compact and Lightweight
  • Windscreen Reduces Wind Noise
  • Integrated Swiveling Shockmount
  • Mounts on Camera Shoe or Tripod
