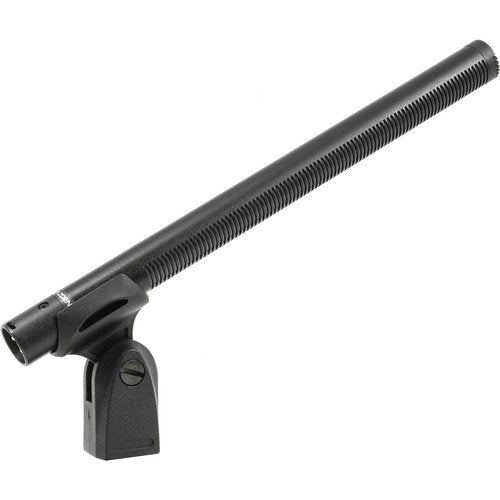

Azden SGM-3500L Broadcast Shotgun Microphone
Azden SGM-3500L Broadcast Shotgun Microphone
In stock
View full details
WhatsApp us for inquiries
Azden SGM-3500L Broadcast Directional Microphone is developed for footage and audio workflow with a camcorder, footage DSLR, or portable audio recorder. With a frequency response of 40 Hz to 20 kHz, it fits boom pole use in professional footage productions.
Measuring nearly 10" in long, the SGM-3500L's long interference barrel generates a hypercardioid polar response resulting in extreme off-axis audio rejection, especially at the above frequencies. Built around an all metal brass chassis that delivers best RF rejection and durability, 48V phantom power, a gold-plated XLR connector to maintain a good link and elevated protection to corrosion and a boosted frequency response around 5 kHz where spoken word articulation is primary present for definition, the SGM-3500L boasts an ultralow interference floor at 13 dB for crystal detailed audio.
Low Self-Noise: Guide — SGM-3500L
The 3500 range boasts an ultra-low interference floor at 13 dB (A weighted), for crystal detailed audio.
Tuned for Speech acquisition — SGM-3500L
Frequency response is boosted around 5 kHz to 10 kHz where spoken word articulation is most present.
All-Metal Brass Body: Guide — SGM-3500L
Delivers best RF rejection and durability.
Gold-Plated XLR Connector: Guide — SGM-3500L
To maintain a good link and a elevated resistance to corrosion.
High-Sensitivity Mic Element: Guide — SGM-3500L
Acquires a level of detail and nuance beyond any other Azden microphone.
Wide Frequency Response: Guide — SGM-3500L
40 Hz to 20 kHz with roll-off at the first octave to avoid low-frequency interference.
48V Phantom powering — SGM-3500L
Phantom power is a DC voltage supplied via a well-controlled microphone lead and employed to power the electronics of the linked microphone.
Azden SGM-3500L Specs
| Sound Field | Mono |
| Capsule | Condenser |
| Polar Pattern | Hypercardioid |
| High-Pass Filter | None |
| Gain Adjustment | None |
| Windscreen | Foam (Included) |
| Frequency Range | 40 Hz to 20 kHz |
| Maximum SPL | 130 dB SPL Peak |
| Impedance | 120 Ohms at 1 kHz |
| Load Impedance | None |
| Sensitivity | 28 dB |
| Dynamic Range | 118 dB A-Weighted |
| Signal-to-Noise Ratio | 82 dB A-Weighted |
| Output Connectors (Analog) | 1 x XLR 3-Pin |
| Operating Voltage | 48 V |
| Mounting | Mic Clip/Stand Adapter (Included) |
| Included Case | Hard Case |
| Dimensions | ø: 0.75 x L: 9.72" / ø: 19 x L: 246.89 mm |
| Weight | 6 oz / 170.1 g |
Key Features
- Hypercardioid Polar Pattern
- 40 Hz to 20 kHz Frequency Response
- Extreme Directional Sound Pickup
- Side Noise Rejection
- Requires 48V Phantom Power
- 3-Pin, Gold-Plated XLR Output
- All Metal Brass Body for RF Rejection
- Includes Foam Windscreen
- Microphone Clip & Hard Carrying Case
