SKU: SGM-250MX

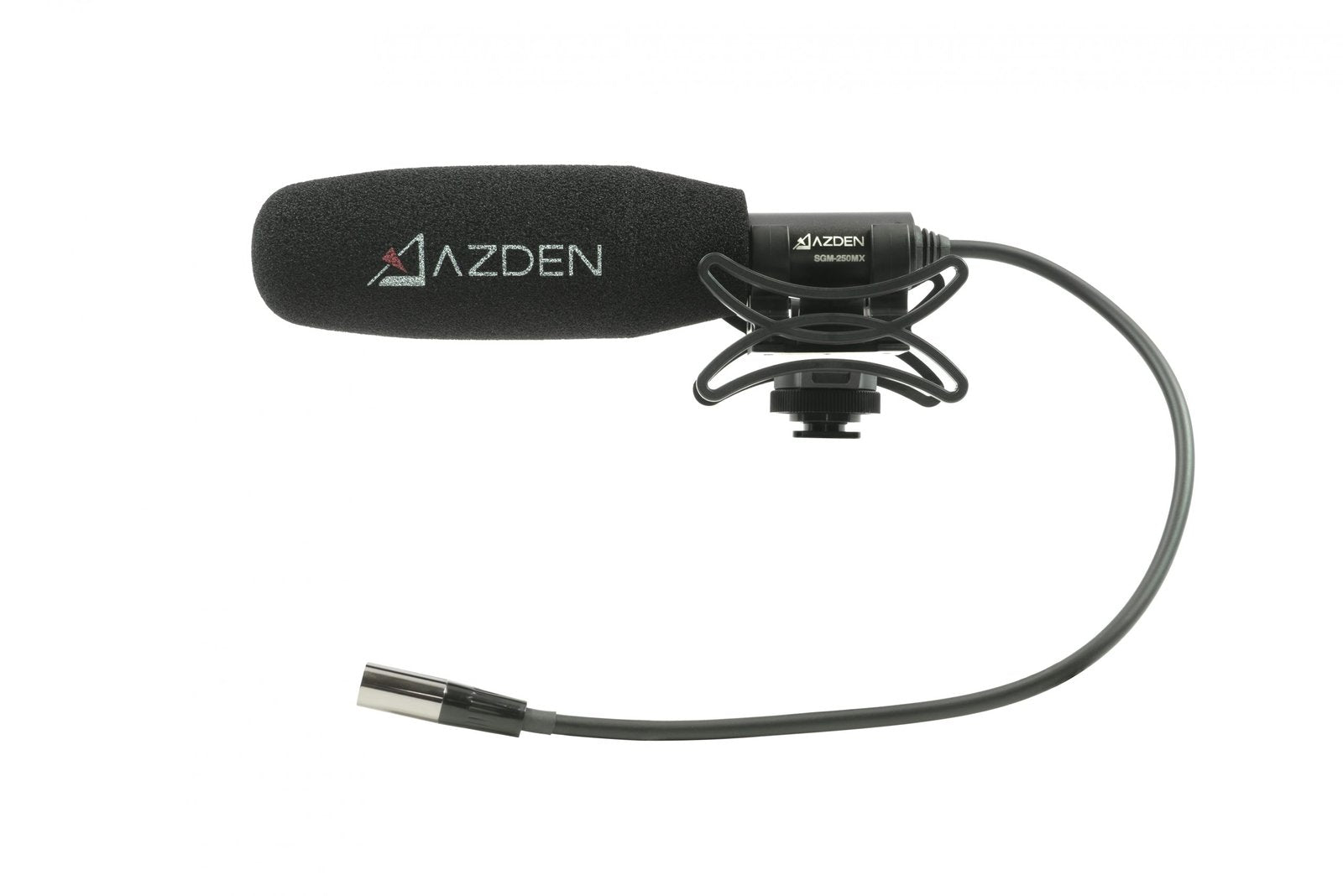

Azden SGM-250MX Mini-XLR Short Shotgun Microphone for Blackmagic Pocket Cinema
Azden SGM-250MX Mini-XLR Short Shotgun Microphone for Blackmagic Pocket Cinema
In stock
View full details
WhatsApp us for inquiries
When image acquisition begins, the Azden SGM-250MX is a professional short directional microphone that integrates a shockmount for simple camera mounting and a hardwired 13" feed lead with a mini-XLR connector for use with Blackmagic Pocket Cinema cameras. It connects into the balanced mini-xlr audio source of the Pocket Cinema, which produces phantom power and includes superior audio quality with less interference than the camera's 3.5mm audio source. Specifically tuned to preserve the lifelike qualities of a speaking person or object, the mic offers footage creators with a cost-effective option for TV, documentary, and film uses.
The SGM-250MX incorporates a supercardioid polar response and a purpose-built acoustic barrel with precise, phase-canceling slots that minimize the capture of unwanted noise whereas focusing on the audio in front of the unit. The highly sensitive capsule produces a flat frequency response (20 Hz to 20 kHz) with low self-noise and 130 dB SPL, for accurate audio acquisition.
Handcrafted in Japan, the SGM-250MX is housed in a brass/aluminum alloy case that enhances durability and rejects ambient radio frequencies (RF). The SMH-X shockmount with two width expander sheets delivers a secure hold for your microphone, whether you run-and-gun or fitting it to a pistol handhold or to a boompole.
Key capabilities of Azden SGM-250MX
- Short length and compact design ideal for mounting on Blackmagic Pocket Cinema cameras
- Supercardioid polar pattern with narrow pickup area, provides enhanced directionality for isolating dialog from ambient noise
- Electret condenser microphone element delivers high sensitivity and low self-noise for clear recording of quiet sounds
- Powered by 11 to 50 VDC phantom power from the Pocket Cinema camera
- Wide dynamic range allows for capturing sounds at up to 112 dB without distortion
- Gold-plated, 3-pin mini-XLR output connector with 13" hardwired output cable
- Includes SMH-X shockmount—compatible with standard-size camera shoe slots as well as 1/4"-20 threaded boompoles and tripods
- Includes foam windscreen and carry pouch
- Handcrafted in Japan
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Supercardioid |
| Pad | None |
| High-Pass Filter | None |
| Gain Adjustment | None |
| Windscreen | Foam (Included) |
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 130 dB SPL |
| Impedance | 100 Ohms |
| Sensitivity | -33 dB at 1 kHz |
| Dynamic Range | 112 dB |
| Signal-to-Noise Ratio | 76 dB |
| Output Connectors (Analog) | 1 x TA3M |
| Operating Voltage | 11 to 50 V |
| Mounting | Camera/Shoe-Mount, Shockmount (Included) |
| Included Case | Pouch |
| Dimensions | ø: 0.83 x L: 6.02" / ø: 21 x L: 153 mm |
| Weight | 3 oz / 85 g |
Key Features
- For TV, Film, and Video Production
- Phantom Power Only
- Shockmount for Camera Mounting
- Mini-XLR Output with Hardwired 13" Cable
