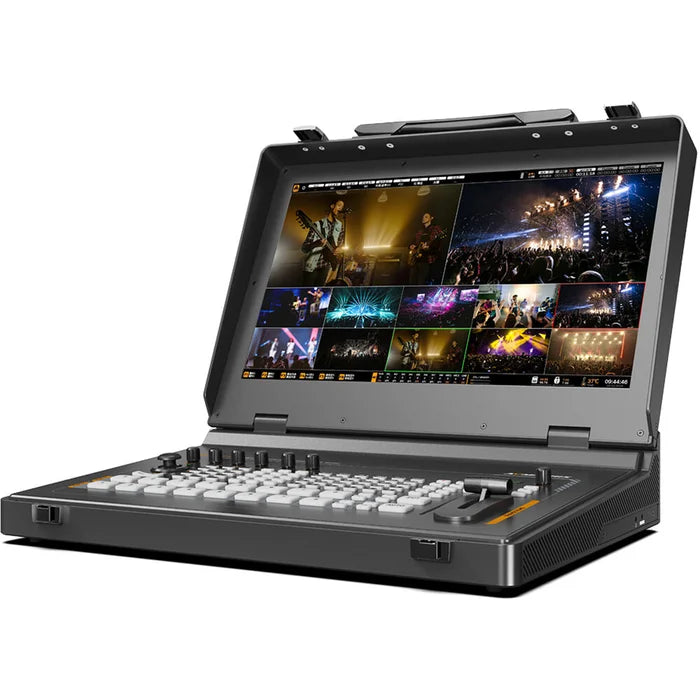

AVMATRIX SHARK S8X PLUS-N 8-Channel SDI/HDMI/NDI Portable Video Switcher
AVMATRIX SHARK S8X PLUS-N 8-Channel SDI/HDMI/NDI Portable Video Switcher
In stock
View full details
WhatsApp us for inquiries
A Closer Look at AVMATRIX SHARK S8X PLUS-N
Beginning with its core design, Pairing operation alongside portability, the NDI-enabled AVMATRIX SHARK S8X PLUS-N is a capable, 8-channel footage switcher developed for professionals who requirement real-time control in live production settings. Featuring eight 3G-SDI as well as two 4K HDMI sources, it accommodates an extensive selection of broadcast as well as camera sources, whereas four 3G-SDI, one HDMI multi-view, as well as two HDMI PGM feeds provide adaptable signal routing and convenient observation on the built-in 17.3" FHD IPS screen.
Ideal for hybrid processes, the SHARK S8X PLUS-N accommodates direct capture to USB drives, SD cards, or SATA SSDs, making it simple to archive or edit footage post-event. Built-in RTMP, SRT, RTSP, as well as NDI streaming maintains dependable live programs to online platforms without outboard encoders. The switcher provides up to six configurable key layers for complex compositions, such as Chroma as well as LUMA keying, three customizable picture-in-picture windows, as well as logo overlays. Alongside 10-channel audio mixing as well as two XLR-1/4" combo sources with phantom power, the switcher maintains professional-grade sound. PTZ management over Visca, Onvif, Pelco P/D, as well as NDI protocols additional streamlines single-operator setups, making the SHARK S8X PLUS-N a complete option for productions, churches, sports, or streaming studios.
Recording and Video Streaming — S8X
- Eight 3G-SDI and two 4K HDMI AV input ports

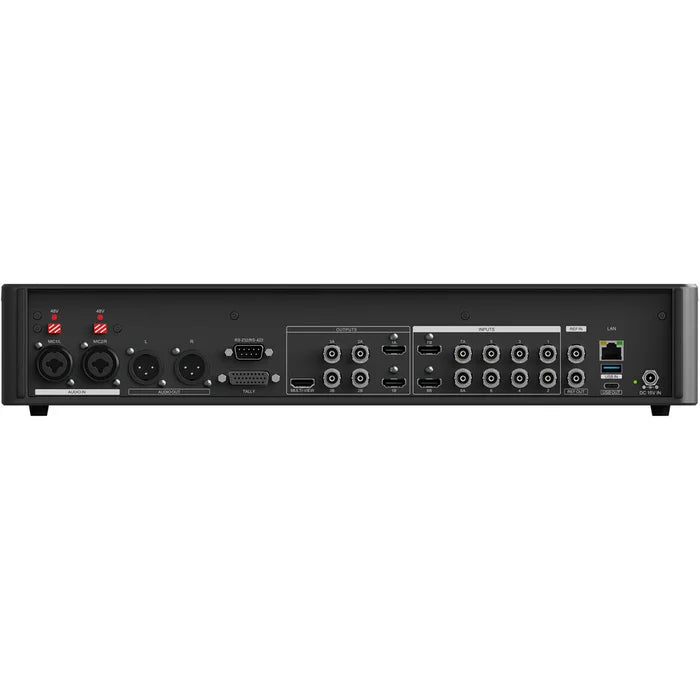

- Four SDI, one HDMI multi-view, and two HDMI PGM output ports
- RTMP, SRT, RTSP, and NDI streaming support
- USB, SD, and SATA recording options
- USB-C connectivity for UVC capture devices
enhanced Functionality — S8X
- Up to six key layers with adjustable size and positioning
- Chroma key, LUMA key, and logo overlay effects
- Three customizable PIP windows

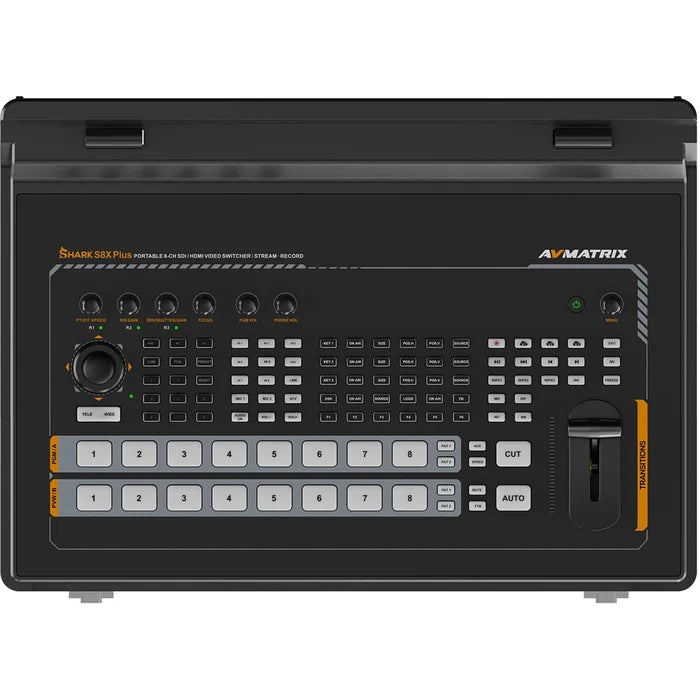

- T-bar, auto, and cut transition modes
- Audio mix up to 10 channels
Integration Support — S8X 4
- PTZ camera control via Visca, Onvif, Pelco P/D, and NDI
- Tally and RS422/RS232 control output ports
- Phantom power via XLR-1/4" combo inputs for condenser mics
- Headphone and balanced audio output
Key Features
- Video Switcher for Streaming & Recording
- 17.3" FHD IPS Multiview Display
- Eight SDI & Two 4K HDMI AV Input Ports
- Four SDI & Three HDMI AV Output Ports
- USB, SD & SATA Recording Support
- RTMP, SRT, RTSP & NDI Streaming
- Up to Six Adjustable Keys
- Chroma Key, Luma Key, PIP & Logo Overlay
- 10-Channel Audio Mixing Support
- Visca, Onvif, Pelco P/D & NDI Control
