SKU: SHARK S4 PLUS
AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display
AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display
In stock
View full details
WhatsApp us for inquiries
A Closer Look at AVMATRIX SHARK S4 PLUS

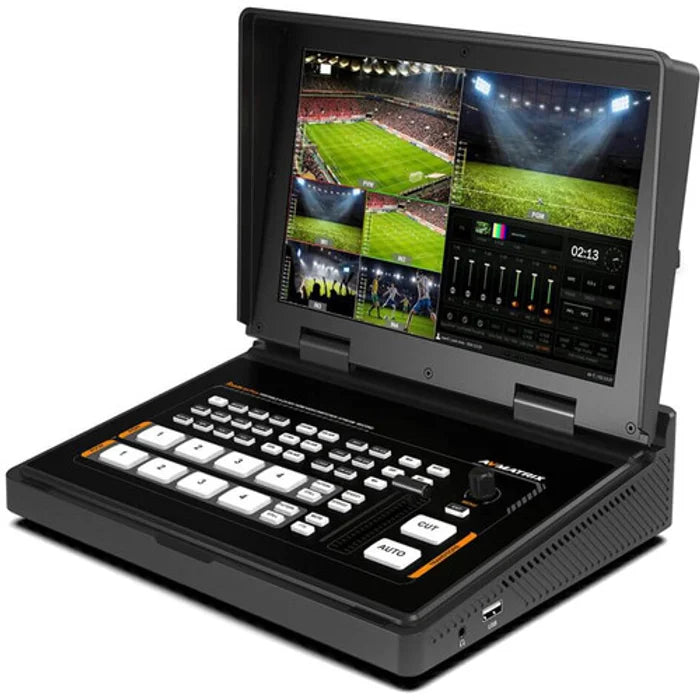

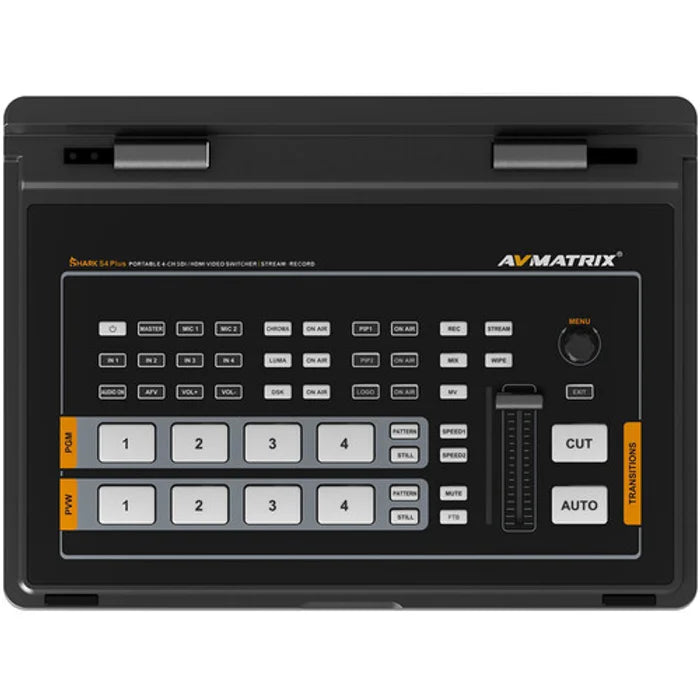

Considering the complete platform, Switch up to two HDMI and two 3G-SDI footage inputs while observation the program feed with the Shark S4 PLUS 4-Channel SDI/HDMI Footage Switcher with 10.1" IPS Display from AVMATRIX. This version features a folding configuration with a 10.1" IPS LCD screen on the lid. Use the USB-C feed together with your computer for capture and streaming. This space-efficient switcher accommodates up to 1080p60 footage input and feed with embedded audio and provides audio mixing through the two analog stereo 3.5mm mic/line sources and feed along with the embedded audio. Switcher control options incorporate push buttons, a T-bar, and IP control via the LAN port.
USB acquisition Streaming&
Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming through software like OBS, Skype, Teams, VLC, Zoom, or vMix.
10.1" Full HD IPS Display
The switcher contains a 10.1" 1920 x 1080 IPS LCD display that offers multiview, preview, program, audio meters, time clock, and menu configuration.
SD Card Recording and USB
Capture your program to a SSD or flash drive in MP4 format through the USB-A capture feed, or utilize an optional SD card for in the built-in SD card capture slot.
Live Stream via Ethernet: Guide
The LAN port handles IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.
Software distance-based operation
Provides easy control of all settings and operations via the control software, comprising transitions, audio configurations, media management, and more.
Multiple Interfaces: Guide

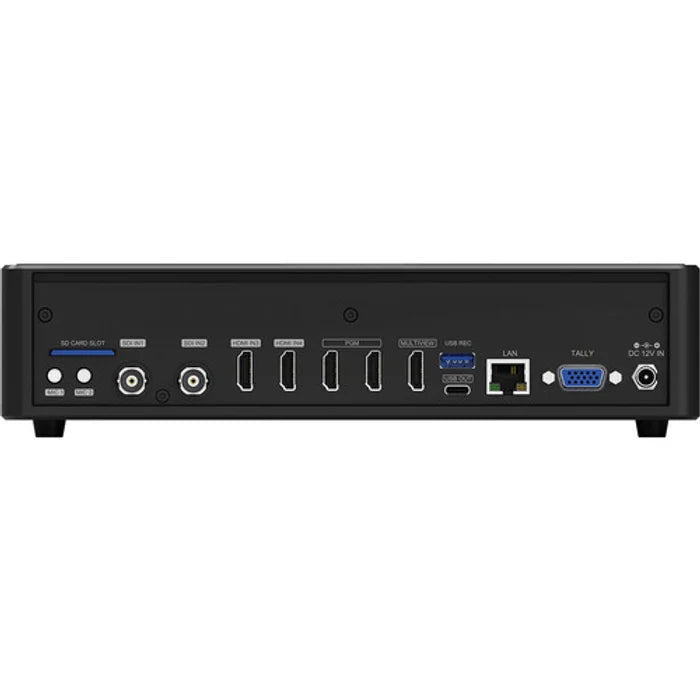

Several interfaces incorporate two 3G-SDI sources, two HDMI sources, Program feeds, multiview feed, audio sources, streaming, and recording ports. The feeds can all be configured to pass source, preview, program, clean program, and color bars.
Other capabilities
- Enhanced chroma key
- Professional audio mixer with embedded and analog audio inputs
- Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
- PiP, PoP, logo overlay, transition effects
Applications: Guide
- Broadcast
- Education
- Conference
- Social media/vlogging
- Live sports
- House of worship
- Live events
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
Key Features
- Compact 4-Channel Video Switcher
- Folding 10.1" IPS LCD Display
- 2 x 3G-SDI & 2 x HDMI Inputs
- 1 x HDMI Multiview & 2 x HDMI PGM Out
- 1 x USB-C Out for Capture & Streaming
- Supports up to 1080p60 Video In/Out
- 1 x LAN for Control Input & Streaming
- SD Card/USB-A Recording, 2 x Mic Inputs
- T-Bar, Auto & Cut Transitions
- Audio Mixing, Multiview Output
