SKU: SHARK H4M

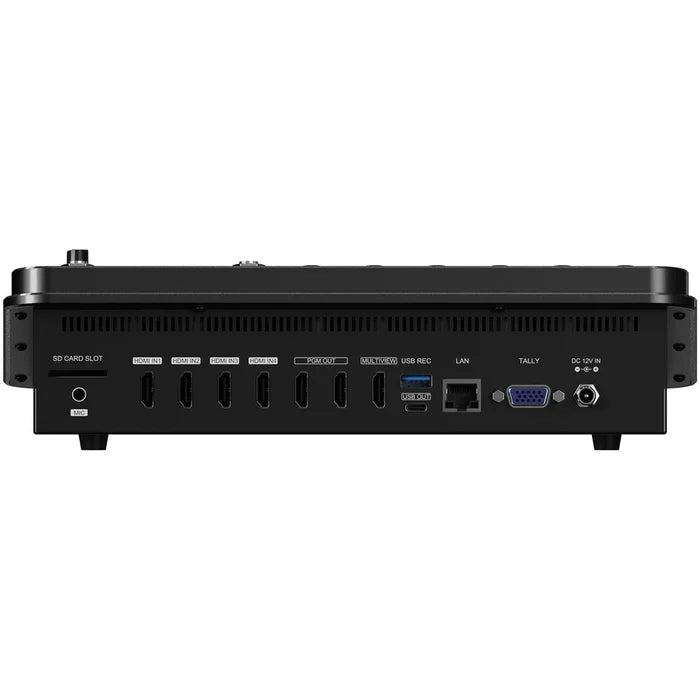

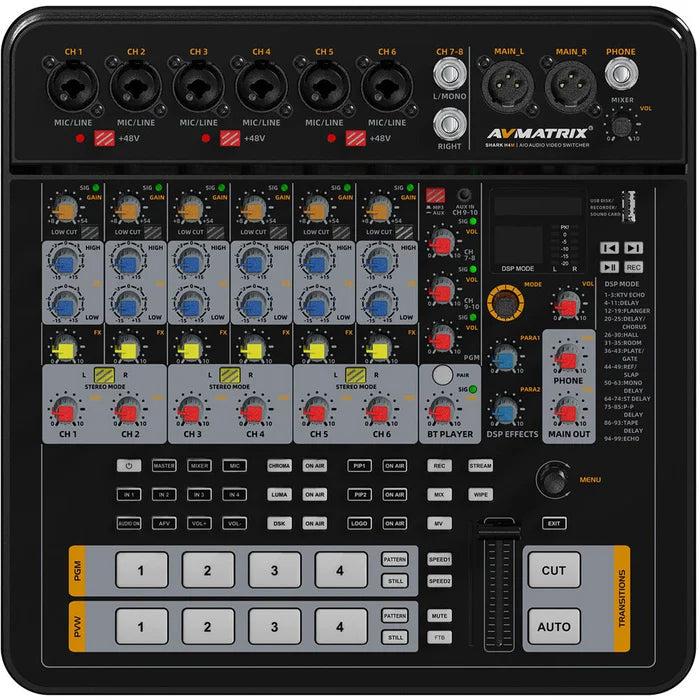

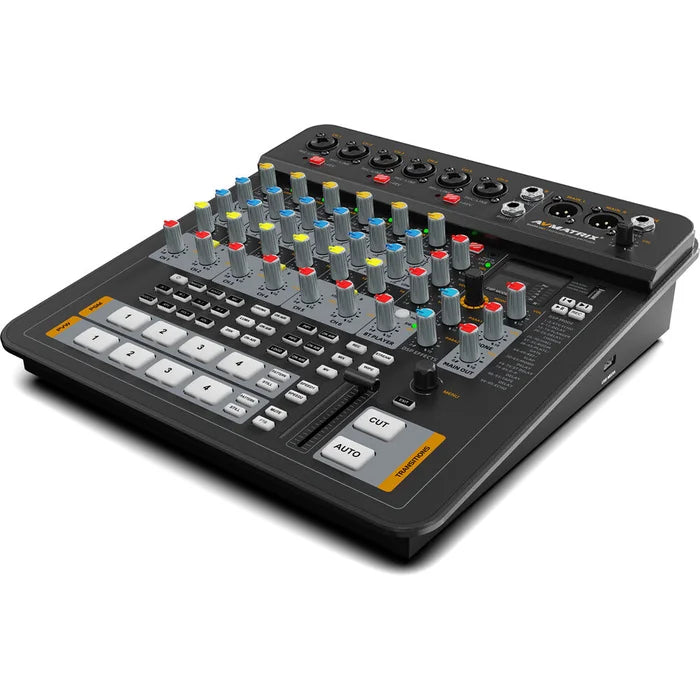

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher
AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher
In stock
View full details
WhatsApp us for inquiries
A Closer Look at AVMATRIX SHARK H4M
Starting with the optical platform, the AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher brings professional footage switching up to 1080p60 and diverse audio mixing in a portable form-factor together in an all-in-one live production workstation. The SHARK H4M is constructed for material creators, educators, houses of worship, as well as event producers and includes four HDMI footage sources alongside embedded audio, two HDMI program feeds, and a dedicated HDMI multiview feed for efficient source monitoring. Seamless UVC acquisition for streaming software is enabled by a USB-C port; meanwhile, the LAN port allows web management and direct RTMP/SRT streaming.
Its connection set comprises six mono microphone sources, two stereo line sources, one TRS headphone feed, and two well-controlled XLR main outputs-all alongside precision controls. Every channel supplies gain adjustment, a two-band EQ, low-cut filtering, as well as availability to 99 built-in DSP audio effect settings. Real-time effects such as chroma as well as luma keying, one PoP or two PiP group layouts, downstream keying, as well as logo overlays give creators additional ways to shape a production. Recording to SD card and USB disk capture complements the SHARK H4M's a streamlined option for multi-camera, multi-source workflows in one space-efficient device.
Versatile AV Switching: Guide
- Four HDMI AV inputs for flexible source selection
- Two HDMI program outputs for simultaneous feeds
- One HDMI multiview output for live monitoring
- USB-C port enables UVC video capture to PC or Mac
- RTMP and SRT streaming support via LAN port
- SD card and USB disk recording capabilities
Real-Time video signal Effects
- Luma key and chroma key for seamless green screen integration
- Dual PiP (Picture-in-Picture) and PoP (Picture-outside-Picture) modes
- Downstream key (DSK) and customizable logo overlay
- T-Bar, auto, and cut transition options
- Wipe, mix, and dip effects for professional presentation
Robust sound operation
- Six mono mic/line inputs and two stereo line inputs
- One stereo headphone output and two balanced XLR main outputs
- 48V phantom power support with peak indicator
- Individual gain control, low-cut filters, and stereo/mono switching
- 99 built-in DSP audio effect modes for vocal and instrument enhancement
- MP3 recorder/player with Bluetooth audio input and USB sound card functionality
Portable Design and Intuitive
- All-in-one hardware interface with tactile controls
- Web-based interface for remote configuration via LAN
- Integrated media library for logo and image overlays
- Lightweight, compact build
Key Features
- All-in-One 1080p60 AV Switcher & Mixer
- Four HDMI AV Inputs
- One HDMI Multiview, Two HDMI PGM Outputs
- USB-C Port for UVC Capture
- LAN Port for Web Control & Streaming
- Chroma Key, Luma Key, PiP & PoP Modes
- RTMP/SRT Streaming Support
- Six Mono, Two Stereo Audio Inputs
- One TRS, Two Balanced XLR Audio Outputs
- 99 Built-In Audio Effect Modes
