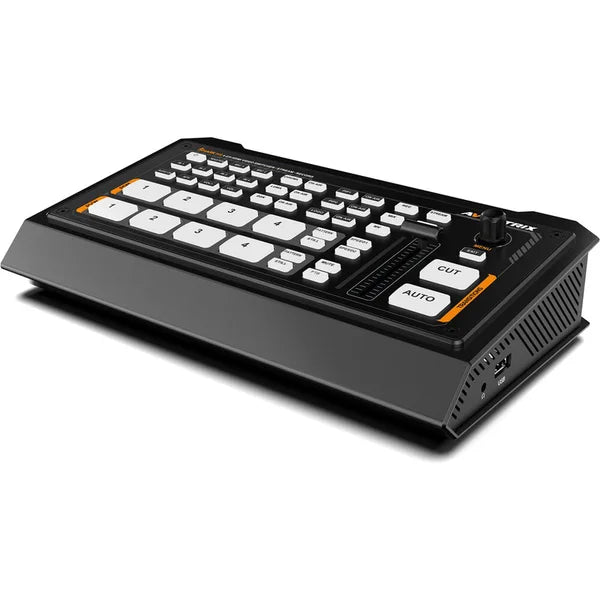

AVMATRIX Shark H4 4-Channel HDMI Video Switcher
AVMATRIX Shark H4 4-Channel HDMI Video Switcher
In stock
View full details
WhatsApp us for inquiries
AVMATRIX SHARK H4 4-Channel HDMI video signal Switcher

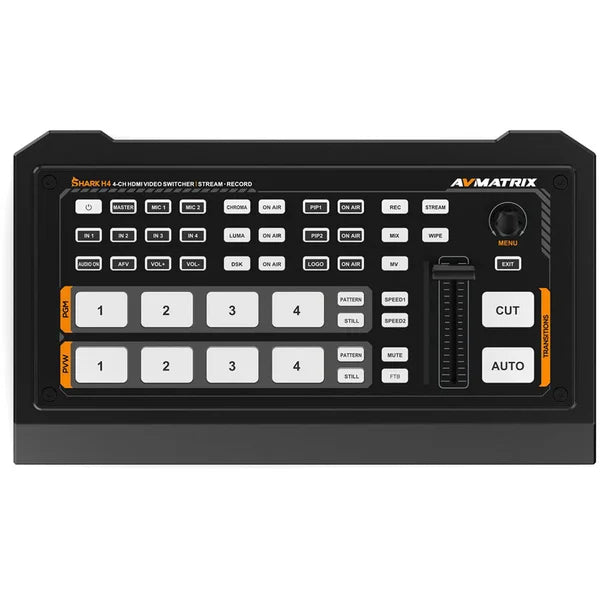

At the point of image capture, Switch up to four HDMI footage inputs while observation the program feed with the Shark H4 4-Channel HDMI Footage Switcher from AVMATRIX. Use the USB-C feed together with your computer for capture and live streaming through your computer, and capture directly from the unit through the USB-A feed or SD card slot. This space-efficient switcher accommodates up to 1080p60 footage input and feed with embedded audio, and it makes available audio mixing through the two analog stereo 3.5mm mic/line sources and embedded audio. Switcher control options incorporate push buttons, a T-bar, and IP control via the LAN port.
USB acquisition Streaming — AVMATRIX Shark H4&
Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming through software like OBS, Skype, Teams, VLC, Zoom, or vMix.
SD Card Recording and USB — AVMATRIX Shark H4
Capture your program to a SSD or flash drive in MP4 format through the USB-A capture feed, or utilize an optional SD card for in the built-in SD card capture slot.
Live Stream via Ethernet: Guide — AVMATRIX Shark H4
The LAN port allows IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.
Software distance-based operation — AVMATRIX Shark H4
Makes available easy control of all settings and operations via the control software, including transitions, audio configurations, media management, and more.
Multiple Interfaces: Guide — AVMATRIX Shark H4

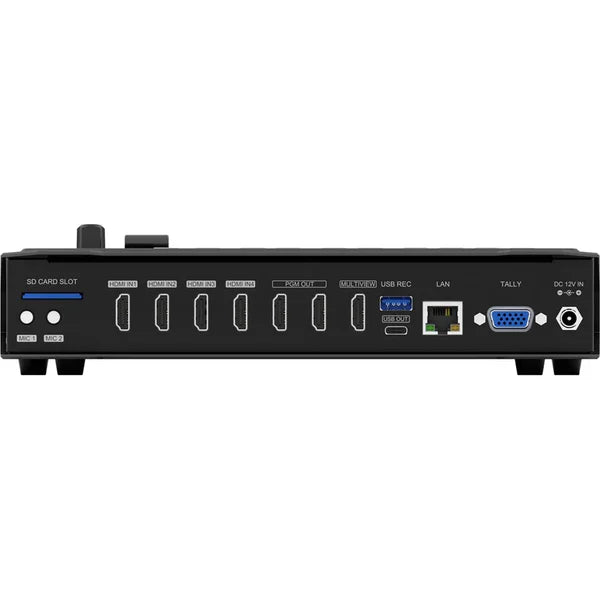

Several interfaces incorporate four HDMI sources, Program feeds, multiview feed, audio sources, streaming, and recording ports. The feeds can all be configured to pass source, preview, program, clean program, and color bars.
Other capabilities — AVMATRIX Shark H4
- Enhanced chroma key
- Professional audio mixer with embedded and analog audio inputs
- Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
- PiP, PoP, logo overlay, transition effects
- Applications
- Broadcast
- Education
- Conference
- Social media/vlogging
- Live sports
- House of worship
- Live events
Key Features
- Compact 4-Channel Video Switcher
- 4 x HDMI Inputs, USB-A Recording Output
- 1 x HDMI Multiview & 2 x HDMI PGM Out
- 1 x USB-C Out for Capture & Streaming
- Supports up to 1080p60 Video In/Out
- 1 x LAN for Control Input & Streaming
- SD Card Slot, 2 x Mic Inputs
- T-Bar, Auto & Cut Transitions
- Audio Mixing, Multiview Output
- Adjustable PiP Size & Positioning
