SKU: SD1151-12G-N

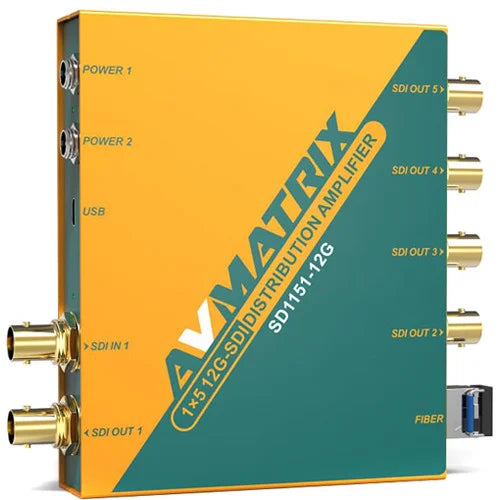

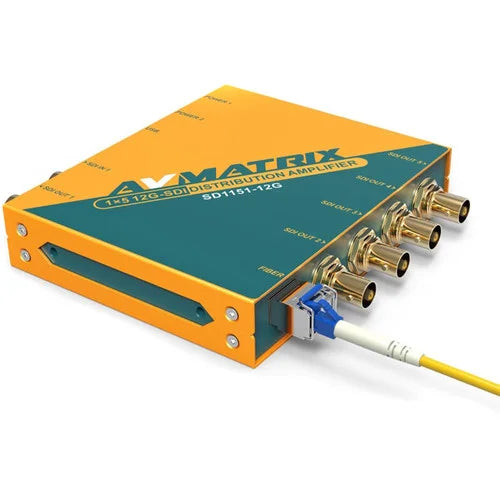

AVMATRIX SD1151-12G 12G-SDI 1x5 Reclocking Distribution Amplifier
AVMATRIX SD1151-12G 12G-SDI 1x5 Reclocking Distribution Amplifier
In stock
View full details
WhatsApp us for inquiries
A Closer Look at AVMATRIX SD11-12G
For professional deployment, Split one SDI signal into five feeds with the SD1151-12G 12G-SDI 1x5 Reclocking Distribution Amplifier from AV Matrix. Developed for footage production distribution, this DA integrates one source and five feeds and it reclocks, equalizes, and buffers your feed for optimal transmission. The SD1151-12G accommodates up to 4K60, 12Gb/s footage at maximums of 197' for 12G and 460' for HD-SDI signals.
SD1151-12G elements incorporate signal lock and power LED indicators, ancillary data passthrough to the feeds, support for DVB-ASI signals, and downward-compatible transmission. The space-efficient SD1151-12G switching DA provides redundant power sources with locking, threaded power connectors and incorporates a 5V power supply.
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
Key Features

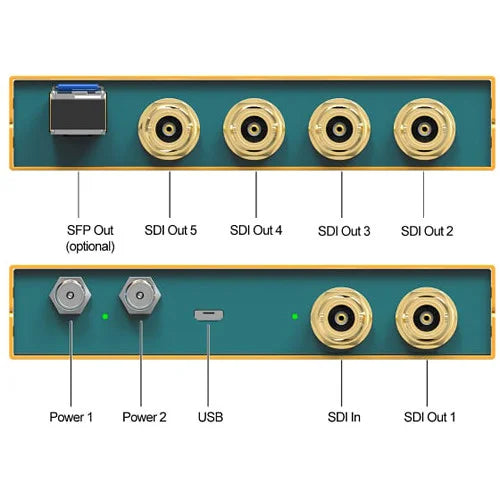

- 1 x 12G/6G/3G/HD/SD-SDI BNC Input
- 5 x 12G/6G/3G/HD/SD-SDI Outputs
- Reclocked and Equalized Outputs
- 1 x Slot for Optional SFP Fiber Module
- Redundant, Locking Power Inputs
- DVB-ASI Signal Support
- Ancillary Data Passthrough
- 1 x 5V Power Supply Included
