AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Converter

Name: AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Converter
Brand: AVMATRIX
SKU: SC2030
Price: 704.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

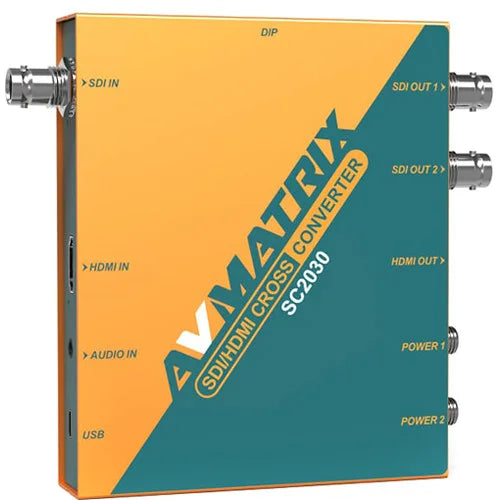

A Closer Look at AVMATRIX SC-2030

When image acquisition begins, combining functions usually reserved for a computer controlled converter the SC2030 3G-SDI/HDMI Scaling Cross Converter from AV Matrix is a space-efficient device that contains a footage cross converter and scaler all in one. The SC2030 integrates both a HDMI and a 3G-SDI source, and can cross convert either signal to the other. It additionally provides a 3.5mm analog audio source which can be embedded into your feed signal. The built-in scaler and frame rate converter each enable you to convert the source signal to your required feed standard.
The SC2030 provides one HDMI feed and two 3G-SDI feeds, controllable via selectable conversion settings accessed by DIP switches, delivering you with a variety of settings to fit your needs. It can additionally be controlled through a Windows computer with AV Matrix software via the micro-USB port, which is additionally used to power the unit. Dual threaded locking connectors enable you to power the unit with outboard power supplies for redundancy.

Feature Highlights

The HDMI or SDI input can be scaled and/or frame-rate converted to the required standard

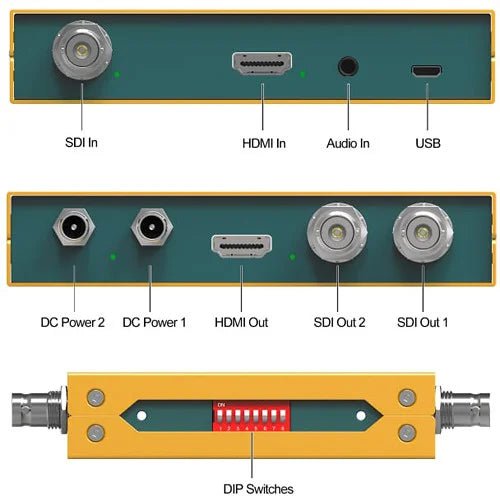

One HDMI and two SD/HD/3G-SDI outputs
One 3.5mm analog audio input can be embedded in output

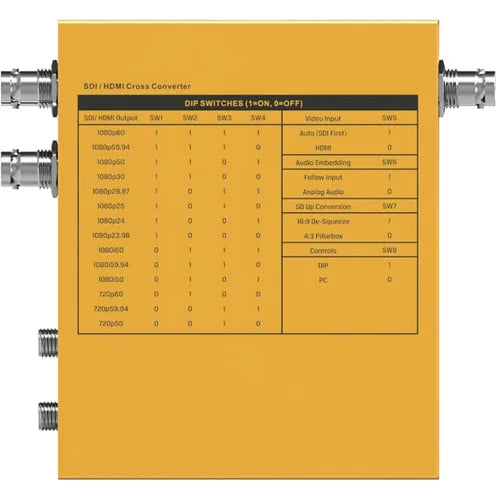

Use the DIP switches or a computer to change settings
The embedded audio pairs in the SDI and HDMI outputs can be rearranged as required
The unit incorporates a USB port for control, power, and firmware updates
Dual threaded locking connectors can provide redundant power
