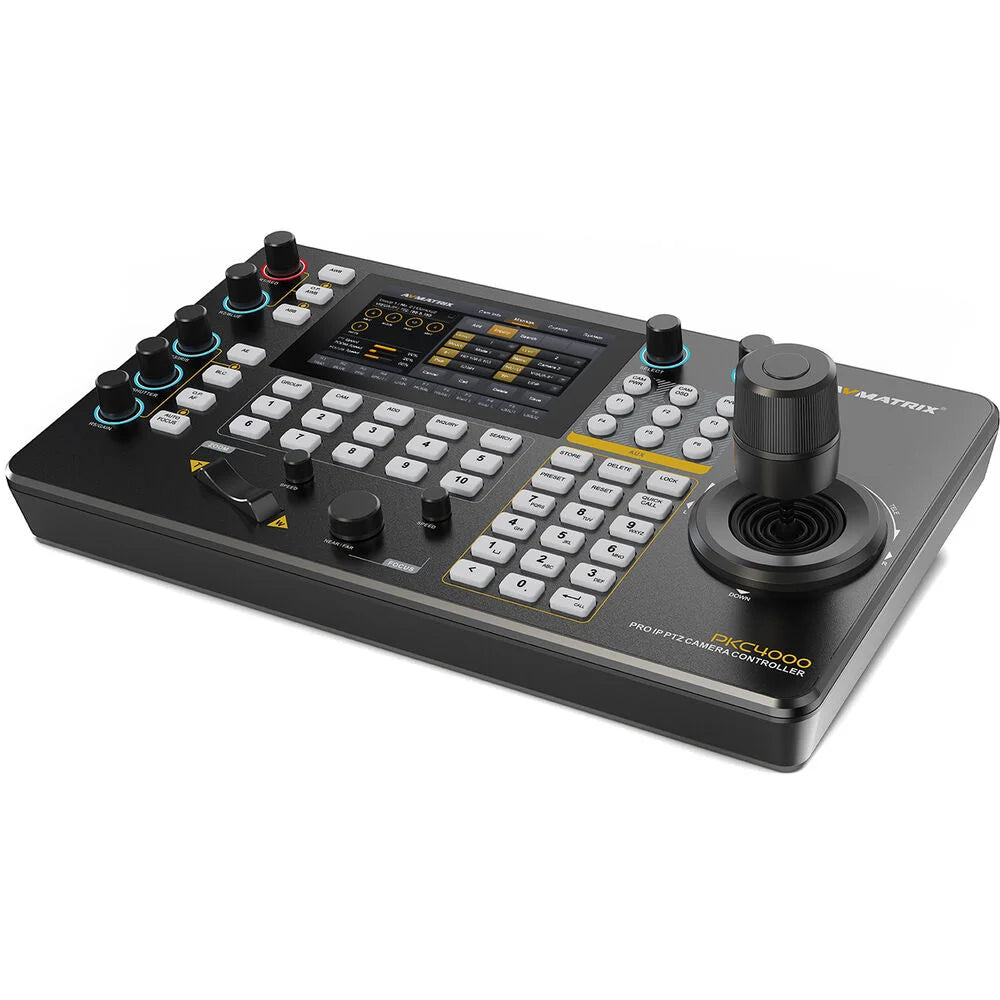

AVMATRIX PKC4000-NDI IP & Serial PTZ Camera Controller

A Closer Look at AVMATRIX PKC4000-NDI

When image acquisition begins, Control up to 100 PTZ cameras with a single operator through NDI, IP, or serial with the IP & Serial PTZ Camera Controller with NDI from AVMATRIX. The controller supplies joystick and button control for up to 100 PTZ cameras over IP and up to 7 cameras via serial, and it can control up to 10 groups of 10 cameras in each group.

Joystick and Buttons

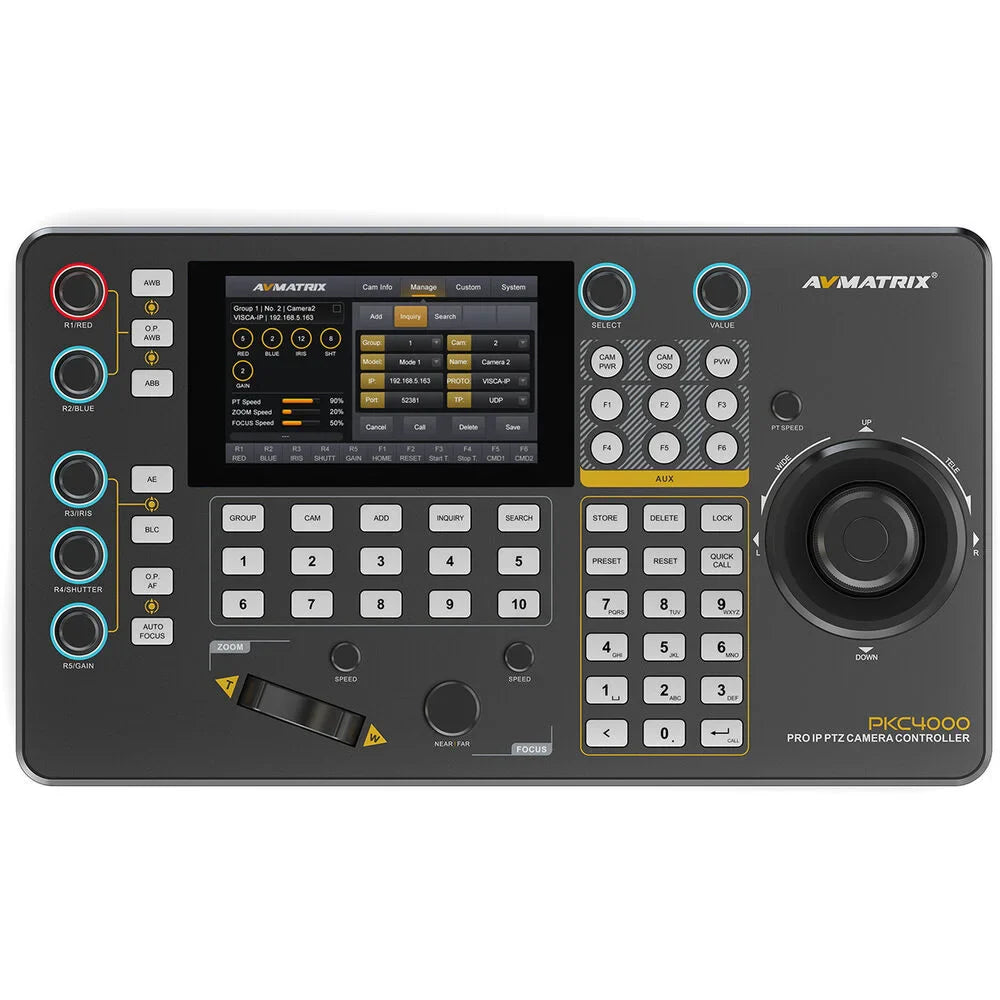

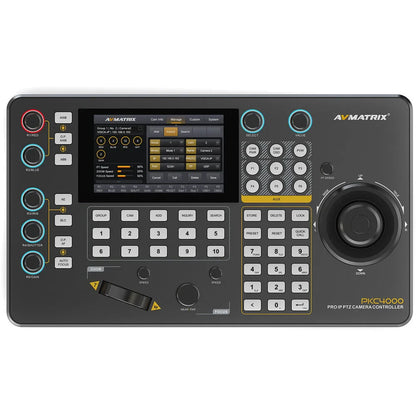

Physical control attributes incorporate glowing buttons for working in the dark, six user-assignable keys for quick function access, a 4D joystick, a rocker for smooth in/out zooms, 255 programmable camera presets, 10 quick presets, and numerous knobs and buttons.

operation Protocol Options

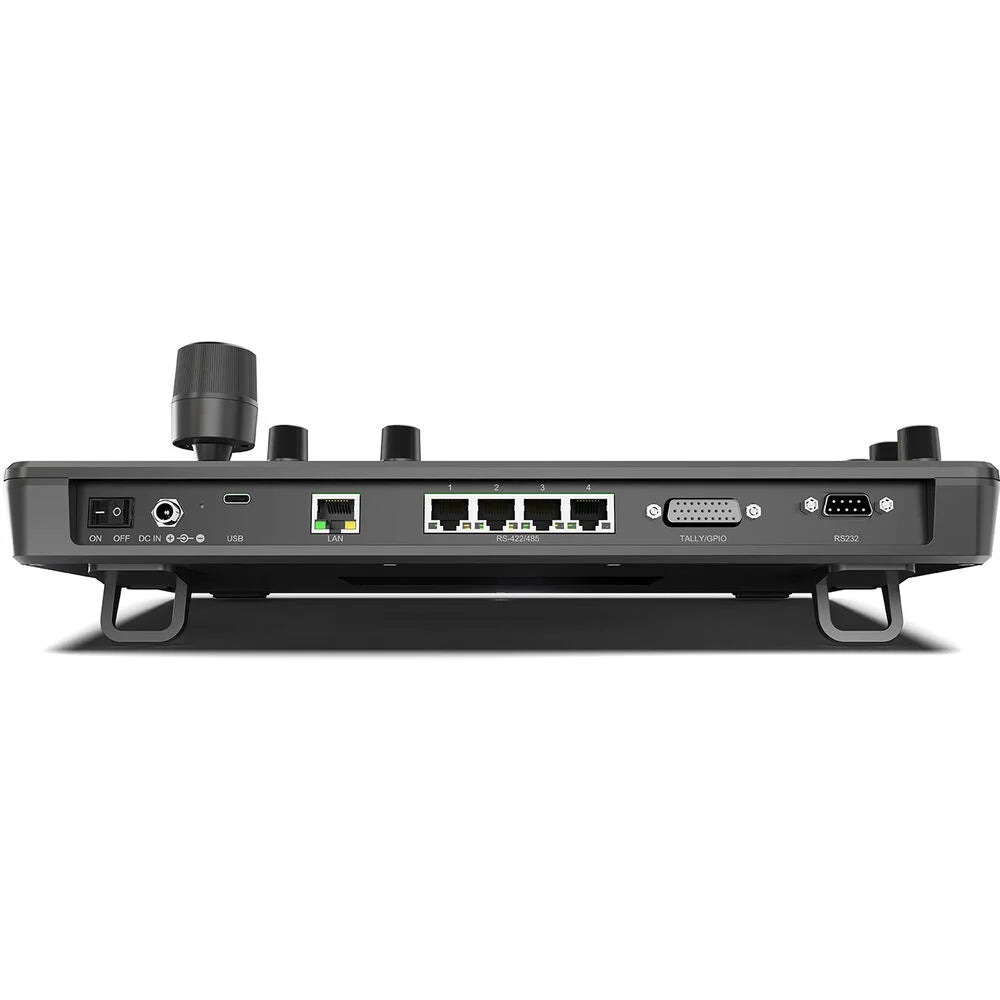

Control protocol support incorporates NDI, VISCA, VISCA-over-IP, ONVIF, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It permits you to control the speed of your pan, tilt, zoom, and lock moves and incorporates a LCD screen. The controller also includes the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras, and the unit provides support for tally/GPIO source.

Bright 5" Touchscreen: Guide

The PTZ controller provides a bright touchscreen that enables you to control settings and camera movements directly on the screen.You can additionally monitor camera previews in real time.

powering Options

You can power the controller through the included power adapter or via PoE on supported networks.

Real-Time Preview: Guide

The controller permits decoding via NDI, RTSP, and ONVIF, which enable simultaneous real-time previews of your camera footage streams on the controller's 5" display. You can additionally capture and playback the cameras' paths into complex presets, so you don't have to control the camera manually.

Switcher Integration: Guide

The controller can sync with AVMATRIX switchers and tally systems via GPIO, syncing your camera operations with ease.
A tally connector is included with the controller.
