SKU: PKC4000

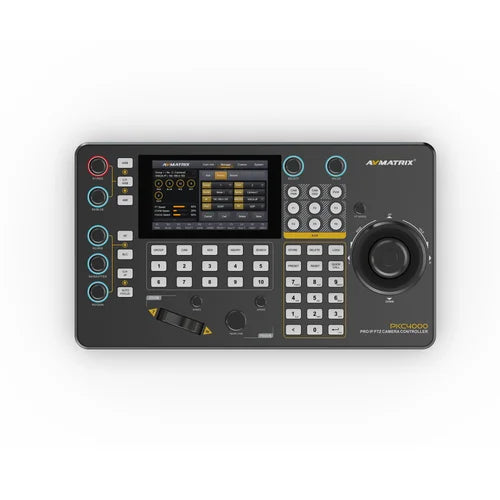

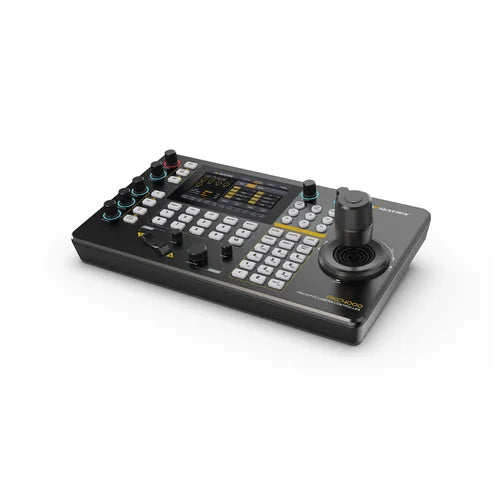

AVMATRIX PKC4000 IP & SERIAL PTZ CAMERA CONTROLLER
AVMATRIX PKC4000 IP & SERIAL PTZ CAMERA CONTROLLER
In stock
View full details
WhatsApp us for inquiries
AVMATRIX PKC4000 IP SERIAL PTZ CAMERA CONTROLLER: Guide&
In its primary imaging role, AVMATRIX PKC4000 boasts a 5"touch screen that permits direct on-screen configuration of camera menu parameters as well as observation camera status in real-time. The AVMATRIX PKC4000 accommodates decoding under NDI, RTSP and ONVIF protocols which permits simultaneous real-time preview of the camera footage streams on the 5-inch screen and refine your control accordingly.
Camera operation Protocol of AVMATRIX PKC4000
The controller has a variety of control interfaces which include IP, RS-422/ RS-485/ RS-232. The rich control interface makes it easy to match camera links of different interfaces. It delivers cross protocol mix-control on one controller working protocol by ONVIF, VISCA, VISCA-IP and Pelco P&D, as well as NDI ("NDI For Optional).
Playback and Track Recording
The PTZ camera controller accommodates track loop function which enables you to capture camera path (pan, tilt, zoom) and replay it whenever required without having to manually control the camera.
powering-over-Ethernet (PoE)
Control up to total of 100 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but additionally POE power supply to set up in numerous locations.
1x RS-232 4 x RS-485 /422 operation Interfaces&
RS-232, RS-422 and RS-485 communication support protocols such as PELCO-D, PELCO-P and VISCA,. Each serial port can connect up to 7 cameras under the Visca protocol.
Connection Diagram of AVMATRIC PKC4000: Guide
Adopt RS-232, RS-422, RS-485 and IP(RJ45) several interface control signal, up to 100 cameras can be connected. The following use process shows how to control several cameras via IP Interface via the PTZ controller.
IP operation connection panel of AVMATRIX PKC4000
IP control is a very smart and convenient control setting. With IP control, automatically search provided IP cameras in the network and assign IP addresses easily. IP control allows NDI, ONVIF and Visca-IP. PKC4000 permits operator to easily control up to 100 IP camera (10 groups, 10 cameras/ group).
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
Key Features:
- Easy operation with a 5-inch touch screen and 4D joystick
- Supports video decoding for real-time monitoring
- Supports Visca, Visca Over IP, Pelco P&D & Onvif protocols
- Control via IP, RS-422, RS-485, and RS-232
- Automatic IP address assignment for quick setup
- Manages up to 100 IP cameras on a single network
- 6 user-assignable keys for quick function access
- Quick control of exposure, iris, focus, pan, tilt, etc.
- Supports PoE and 12V DC power supply
- NDI version for optional
