SKU: FE1121

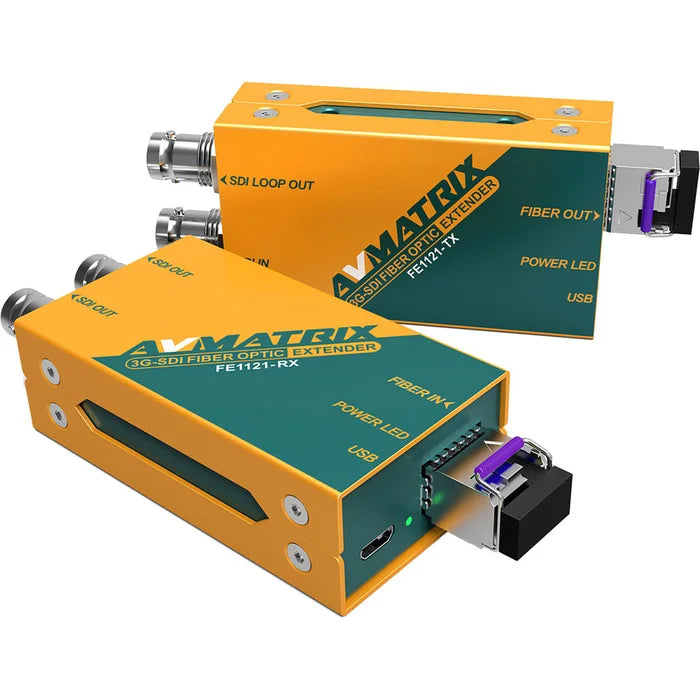

AVMATRIX FE1121 3G-SDI Fiber Optic Extender Transmitter & Receiver Set
AVMATRIX FE1121 3G-SDI Fiber Optic Extender Transmitter & Receiver Set
In stock
View full details
WhatsApp us for inquiries
A Closer Look at AVMATRIX FE1121
When image acquisition begins, the 3G-SDI Fiber Optic Extender from AV Matrix extends HD/SD signals up to 3G-SDI through your fiber optic cable network. This transmitter and receiver set has a range of up to 12.5 miles and incorporates dual 3G-SDI feeds on the receiver. Supporting all SDI footage resolutions up to 1080p at a bandwidth of up to 3Gb/s, this space-efficient set is compatible with single-mode LC simplex fiber cable. Contains incorporate SDI equalization, re-clocking, hot-pluggable SFP modules with LC connectors, and up to 16-channel embedded audio support. This set incorporates two USB cables, 5V power adapters, and mounting brackets.
- Extends HD/SD signals up to 3G-SDI, 1080p over single-mode LC fiber optic cable

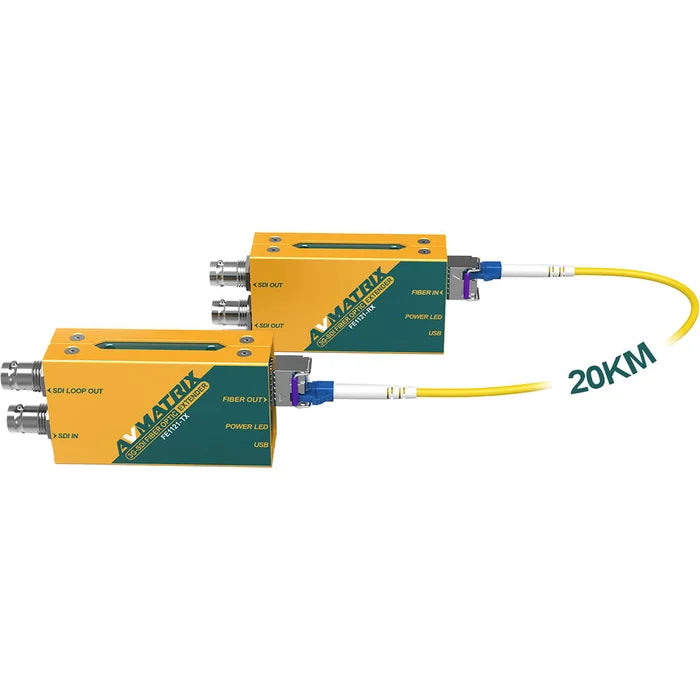

- Supports range of up to 12.5 miles

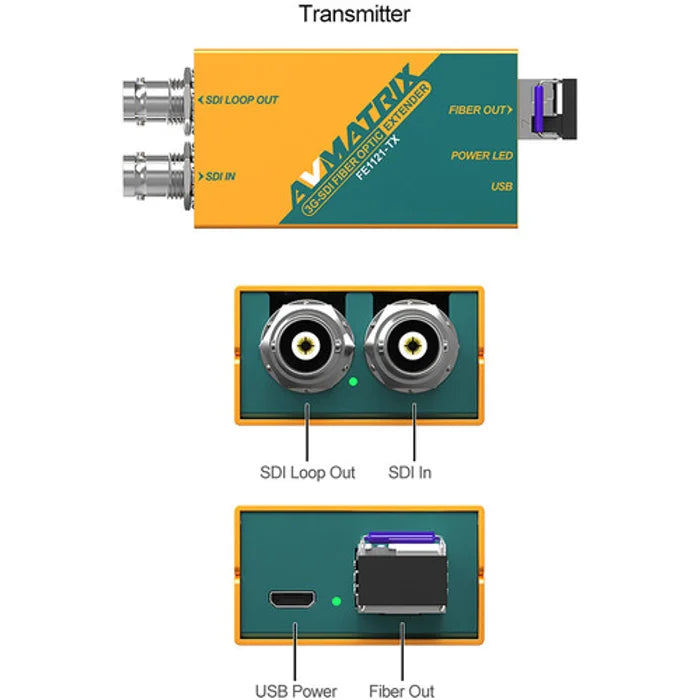

- SDI input and loop out, LC single-mode fiber output on transmitter

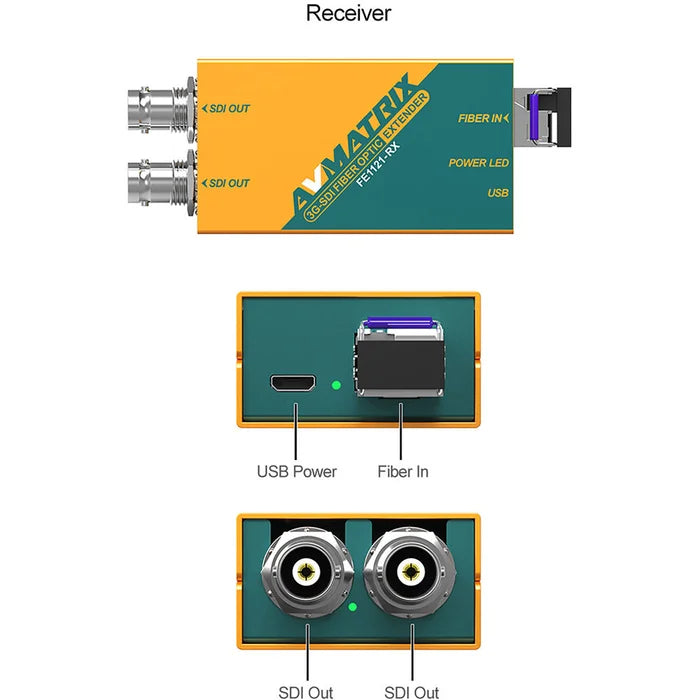

- LC single-mode fiber input, dual SDI outputs on receiver
- Supports metadata and 16-channel embedded audio
- Signal re-clocking
- Compact, USB-powered form
Locate us: https://goo.gl/maps/YZQmjfG5vYQS3ZLU7
Key Features
- 1 x Transmitter & 1 x Receiver
- Transmits 1080p up to 12.5 Miles
- 3Gb/s Maximum Bandwidth
- SD-SDI/HD-SDI/3G-SDI Automatic Switching
- Dual 3G-SDI Outputs on Receiver
- SDI Equalization & Re-Clocking
- Hot-Pluggable SFP Module with LC Port
- 2 x USB Cables and 2 x 5V Power Adapters
- 2 x Mounting Brackets
