SKU: ATOMSUMSE1

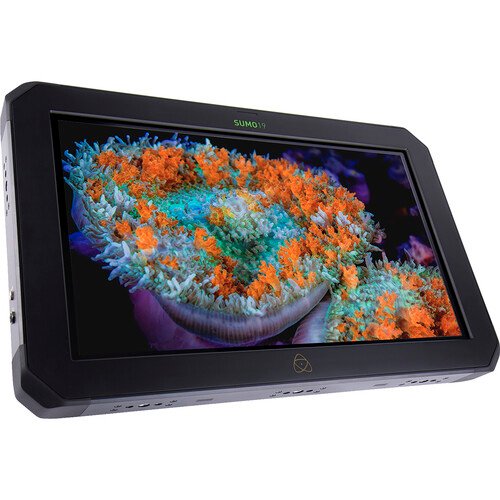

Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
In stock
View full details
WhatsApp us for inquiries
The Atomos Sumo 19" SE HDR Display, Recorder, and Switcher With an upgraded 19" 1920 x 1080 QLED touchscreen screen and 1200 cd/m² luminance, it maintains the same 4K capture, monitoring, and switching functions of the previous model with a sharper and brighter screen.
Four 12G-SDI sources and one HDMI 2.0 source can receive footage feeds up to 4K60 and support live quad-channel switching.
Five-channel capture captures the source feeds as well as the live switching to produce one feed video for efficient observation.
Genlock and LTC timecode are additionally supported by the HDMI 2.0 and quad-SDI links.
The Sumo 19" SE can capture in ProRes RAW and 8-little+FRC 422 ProRes/DNxHR encoding formats.
RAW, Log, PQ, and HLG feeds from numerous cameras or gaming consoles can be processed by the device and mapped to screen 10+ stops of dynamic selection HDR in real time.
This makes the Sumo 19" SE excellent for observation in the focus area by the director or client.
Two XLR sources with +48V phantom power support well-controlled audio capture with outboard devices.
Supplied desktop feet, mounting supplies, and a range of power supply options enable you to readily integrate the Sumo 19" SE into your soundstage setup.
Contact us
Visit us
Four 12G-SDI sources and one HDMI 2.0 source can receive footage feeds up to 4K60 and support live quad-channel switching.
Five-channel capture captures the source feeds as well as the live switching to produce one feed video for efficient observation.
Genlock and LTC timecode are additionally supported by the HDMI 2.0 and quad-SDI links.
The Sumo 19" SE can capture in ProRes RAW and 8-little+FRC 422 ProRes/DNxHR encoding formats.
RAW, Log, PQ, and HLG feeds from numerous cameras or gaming consoles can be processed by the device and mapped to screen 10+ stops of dynamic selection HDR in real time.
This makes the Sumo 19" SE excellent for observation in the focus area by the director or client.
Two XLR sources with +48V phantom power support well-controlled audio capture with outboard devices.
Supplied desktop feet, mounting supplies, and a range of power supply options enable you to readily integrate the Sumo 19" SE into your soundstage setup.
capabilities and SE Upgrades
- Upgraded 19" Quantum Dot OLED display with 1200 cd/m² brightness (±10%)
- Live, quad-channel HD switching and recording
- Supports recording in ProRes RAW and 10-bit 422 ProRes/DNxHR
- HDMI 2.0 and quad-SDI support genlock and LTC timecode
- Works in HLG and PQ formats of HDR
recording workflow and Live Quad-Channel HD Switching
- Record four streams simultaneously as separate ISOs while cueing and switching in real time
- Record fifth channel of switched feel and display resulting in mixed output live on set (via HDMI or SDI)
- Switching is asynchronous and can be output with Atomos Connect 4K
HDR Capabilities: Guide
- 10-bit processing takes RAW/Log/PQ/HLG output from camera or gaming consoles
- Maps to display 10+ stops of dynamic range in real time
Two XLR Inputs: Phantom Power
- Full-size XLR connections with +48 phantom power
- Connect two external microphones for balanced analog audio recording and monitoring
- Dedicated meters, gain controls, and adjustments for frame delay on each channel
- Mic or line level audio can be synced with embedded HDMI and SDI audio
Powering the SE: Guide
- Dual 4-pin XLR inputs for continuous dual battery power
- Includes BattWing mounting bracket for integration of V-mount or Gold mount battery 95Wh or larger
- Includes AC power supply, 12-16.8V DC input
Contact us
Visit us
Key Features
- 1920 x 1080 QLED Touchscreen Display
- HDMI 2.0 & 12G-SDI Inputs/Outputs
- Quad-HD Live Switching & 5-Ch Recording
- 1200 cd/m² (±10%) Brightness
- ProRes RAW Support
- 8-Bit+FRC 422 ProRes/DNxHR Encoding
- HDR Mode with 10-Stop Dynamic Range
- Two XLR Inputs with +48V
