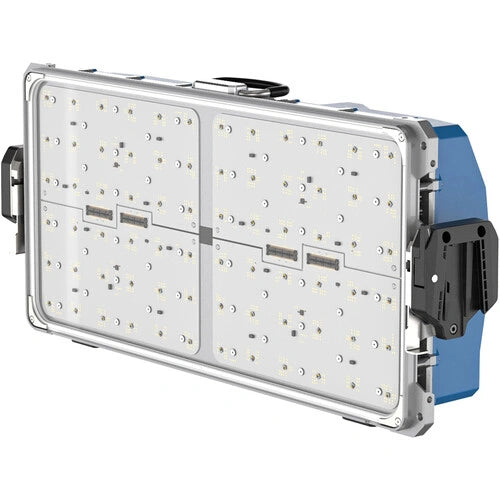

The 2x1 panel has dimensions of 29.1 x 13.3" and incorporates a full-spectrum RGBACL engine, accurate color reproduction, a 1500-20,000K CCT span, and extensive wired and wireless control. An IP66 rating supports operation throughout demanding weather. Portability is aided by an internal power supply, and several SkyPanel X fixtures can share power through daisy chaining to form larger lighting grids. An optional adapter also permits use of every S60 accessory.
From Manufacturer
Weather-Ready Construction
Soft-Source Capabilities
- Generates high-lumen output
- Provides flicker-free low-level dimming from 100 to 0% for close-up work
- Supports established SkyPanel methods and includes the new X21 Dome
- Produces effects using 8-pixel patterns
- A simplified, efficient workflow accelerates setup
Focused Hard-Light Performance
- Produces a carefully shaped circular beam with strong punch and refined quality
- The optional high-performance SkyPanel X HyPer Optic creates a long-throw fixture
- An X23 configuration exceeds the output of a 2.5kW open-face HMI light
- Supports distinctive pixel-based looks
- Suitable for bounce lighting, window projection, or operation from a cherry picker
Expandable Modular Platform
- Modular SkyPanel X panels make lighting-system expansion straightforward
- One daisy-chained power lead supplies dependable electricity to every connected fixture
- Quick-lock frames assemble without tools
- A single DMX profile provides access to the full range of controls
Comprehensive Control Support
LiOS3 Software Enhancements
Virtual SkyPanel X Counterpart
Authentic fixture behavior, detailed 3D models, and approachable interfaces give filmmakers sophisticated planning tools. Teams can visualize, organize, and collaborate more easily, increasing consistency, efficiency, and creative freedom.
On-Set Applications

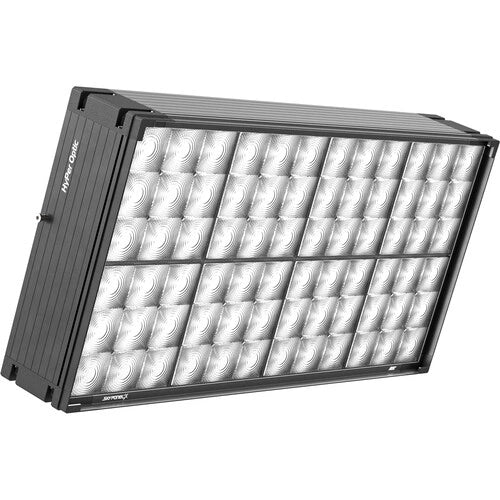

ARRI X21 HyPer Optic
Turn a SkyPanel X into a long-throw source using the high-output X21 HyPer Optic from ARRI. This hot-swappable SkyPanel X component converts the fixture into a native hard light with one circular beam. Once installed, it delivers the punch expected from a traditional point source while preserving the rounded beam and practical advantages of LED technology.
A Unified Circular Beam
Simple Mounting and Broad Accessory Support
Additional Beam Shaping
Core Characteristics
- Hot-swappable multi-lens
- Emulation of hard, point-source lights
- For applications where you need a very punchy light
- Amplified, high lux output
- 72 individual lenses collimated into one single beam
- Includes eyelet for safety wire and easy handling

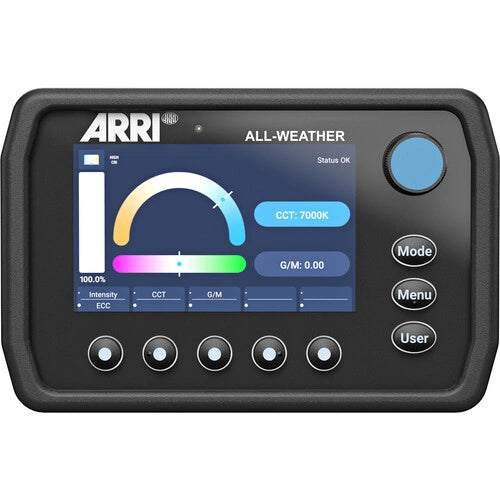

ARRI All-Weather Control Panel
The IP66-rated All-Weather Control Panel from ARRI provides flexible, durable operation of SkyPanel X functions. Its integrated display and shortcut navigation buttons enable local control, or the panel can be detached and operated remotely through an optional 16.4' or 49.2' cable. It offers a convenient centralized interface for changing parameters and building presets during production.
Operational Design
Compatible across ARRI Fixtures
ARRI X Modular Yoke with Spigot
Use the X Modular Yoke with Spigot from ARRI to support X22 and X23 modular frames. Constructed from silver aluminum, the 6.1 lb yoke comes with a 28mm spigot. Integrated shock absorbers lessen impacts when working in demanding environments.
ARRI X22 Modular Frame System
Arrange as many as two X21 fixtures together with the X22 Modular Frame System from ARRI. Intended for lighting crews requiring greater combined output, the frame attaches to the X Modular Yoke or rigs directly through conventional 28mm spigots paired with C-clamps or pipe clamps.
Frame Features
- Aluminum profiles incorporate daisy-chain wiring for both Ethernet and power
- Large stainless steel handles
- High-strength tilt locks and robust tilt lock levers
- Quick-lock brackets support separately sold HyPer Optics and X21 Domes
- Separately available S60 adapters allow the spacing between brackets to be changed
- An angle indicator is positioned near the side lever
- Installation requires no tools
ARRI Mains Cable powerCON TRUE1 TOP with Bare Ends (9.8')
Supply mains electricity to a SkyPanel X using this 9.8' Mains Cable powerCON TRUE1 TOP with Bare Ends from ARRI. Designed for 20A service, it supports SkyPanel X fixtures in X21, X22, and X23 arrangements. All-weather suitability is provided by its insulated rubber construction.
Cable Specifications
- powerCON TRUE1 TOP lamphead connector
- Bare ends mains connector
- Rubber insulated cable, 3 x 12 AWG
- UL certified
