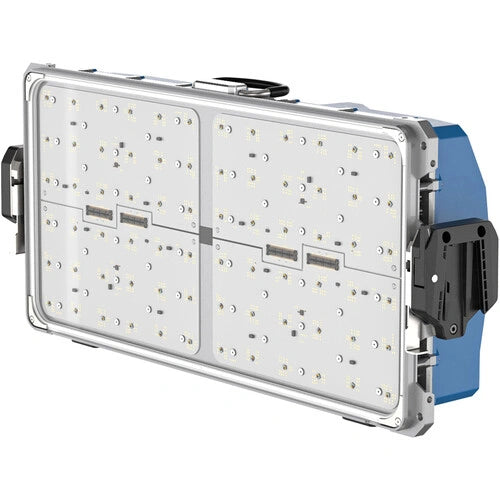

Measuring 29.1 x 13.3", this 2x1 panel incorporates a full-spectrum RGBACL engine, an expansive 1500-20,000K CCT range, precise color reproduction, and numerous wired and wireless control methods. Its IP66-rated enclosure supports operation in all weather. A built-in power supply improves portability, while power daisy chaining enables larger grids made from several SkyPanel X units. With an optional adapter, the fixture can also accept every S60 accessory.
From Manufacturer

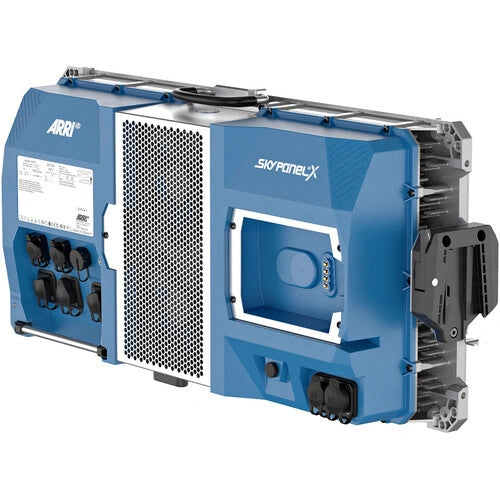

Meet the SkyPanel X
SkyPanel X Premiere
Built for Any Weather
Created as an all-weather lighting platform, the SkyPanel X carries IP66 certification and is engineered to withstand rain, storms, and cleaning with cold-water pressure washers. Its construction emphasizes durability, dependable performance, and technical innovation.
Native Soft-Light Performance
- Produces high-lumen illumination
- Dims smoothly and without flicker from 100 to 0%, including at the low levels needed for close-ups
- Supports familiar SkyPanel methods and comes with the new X21 Dome
- Enables effects to be built from 8-pixel patterns
- Streamlined operation allows faster, simpler setup
High-Output Hard Light
- Creates a well-shaped circular beam with strong output and refined quality
- Add the optional high-performance SkyPanel X HyPer Optic to configure a long-throw source
- In an X23 arrangement, output exceeds that of a 2.5kW open-face HMI fixture
- Produces distinctive pixel-based appearances
- Well suited to window projection, bounce lighting, or use from a cherry picker
Flexible Modular System
- Expand or reconfigure a lighting package readily with modular SkyPanel X fixtures
- A single daisy-chained power cable supplies dependable power to every connected light
- Quick-lock frames install without tools
- One DMX profile delivers the complete set of control capabilities
Extensive Control Connectivity
SkyPanel X provides numerous control pathways, beginning with its robust weather-resistant panel and ARRI's new Bluetooth-enabled LiCo App. Additional choices include LumenRadio wireless integration, DMX-512A, RDM, Art-Net 4, sACN, LAN IP, CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, and Native Bluetooth 5.0.
Expanded LiOS3 Features
LiOS3 introduces multiple software enhancements, including new DMX presets, additional ARRI ALEXA modes, and one unified DMX profile when fixtures operate in X22 or X23 configurations.
Virtual SkyPanel X Digital Twin
The SkyPanel X digital twin from ARRI enables highly accurate lighting simulations in a virtual environment. By bringing digital-twin technology into the process, it reshapes cinematic lighting workflows throughout preproduction, production, and postproduction.
Realistic operating behavior, detailed 3D models, and approachable interfaces provide filmmakers with sophisticated planning resources. Lighting can be visualized, coordinated, and shared more easily, improving creative flexibility, consistency, and production efficiency.
Production Uses
Place the X21 near talent as a soft source and use its flicker-free low-end dimming for close work. ARRI ALEXA modes also let its color science be tailored to the ALEV 3 and ALEV 4 sensors found in ARRI ALEXA cameras.
When fitted with the HyPer Optic, the SkyPanel X becomes a forceful source suitable for projecting through windows with diffusion. It provides the punch and circular beam associated with conventional point-source fixtures while retaining the benefits of LED technology.
