The SkyPanel S360-C Kit from ARRI equips the 360-C LED panel for extensive creative use. Its bi-color fixture presents a substantial 50.4 x 34.4" illuminated area and comes with both a carbon-fiber yoke and a short yoke for suspending the panel in a downward-facing position. Since the versatile fixture accepts interchangeable diffusion screens, the kit supplies Standard, Lite, and Heavy Diffusion panels along with an Intensifier for higher output and longer throws. Included 30 and 60° Honeycomb Grids narrow the native 105° spread, reducing spill and enabling more selective or dramatic illumination. A Super Clamp Adapter is also provided for securing the Power Supply Unit to light stands, truss, and other suitable objects.

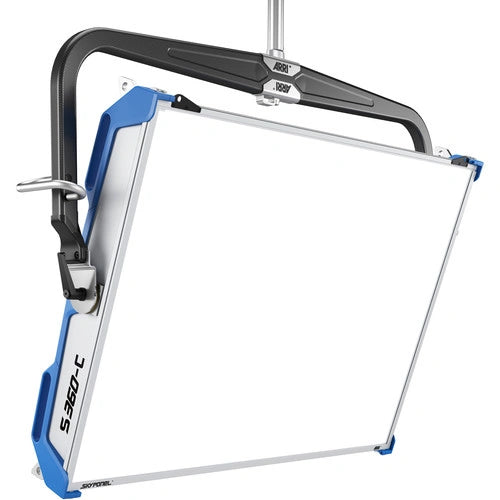

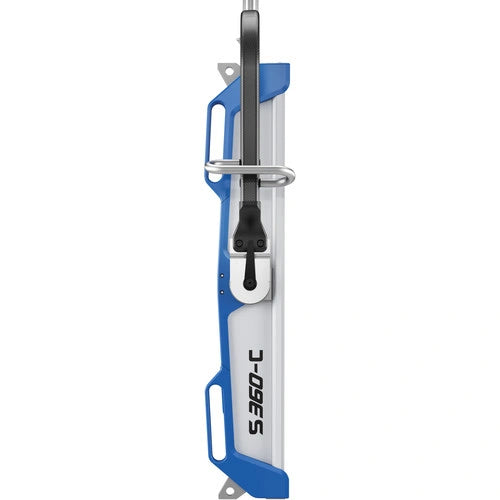

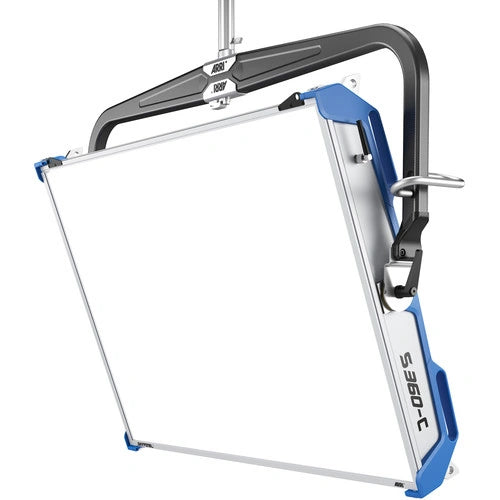

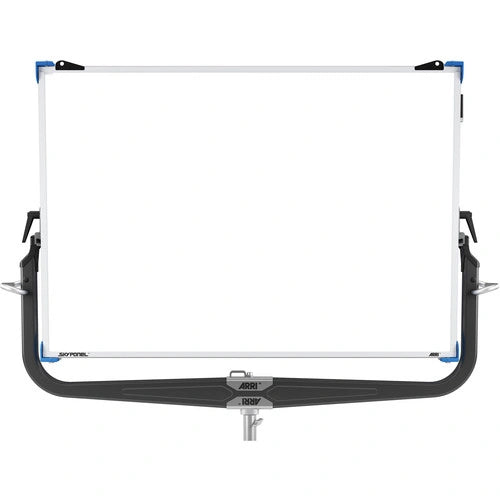

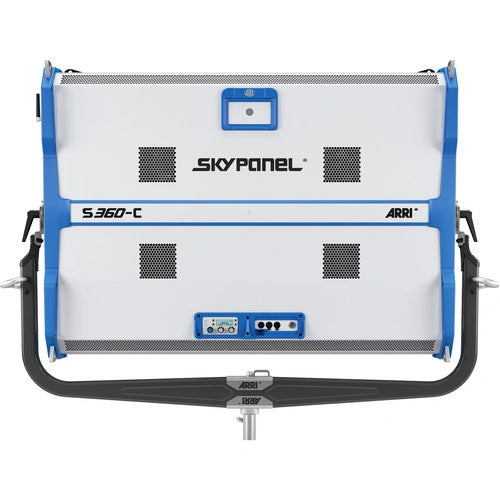

ARRI SkyPanel S360-C LED Softlight (Blue/Silver, Manual, Standard Diffusion, Edison)
The imposing SkyPanel S360-C LED Softlight extends ARRI's professional LED lineup with a 34.4 x 50.4" emitting surface supported by a weight-saving carbon-fiber yoke. Replaceable thermoplastic diffusers, available from Lite through Heavy, alter softness and help the output envelop a subject. An Intensifier can also increase brightness for longer-distance applications, while a medium-strength Standard diffuser accompanies the fixture. With a maximum draw of only 1500W, the SkyPanel produces approximately the output of an 8000W tungsten soft source.

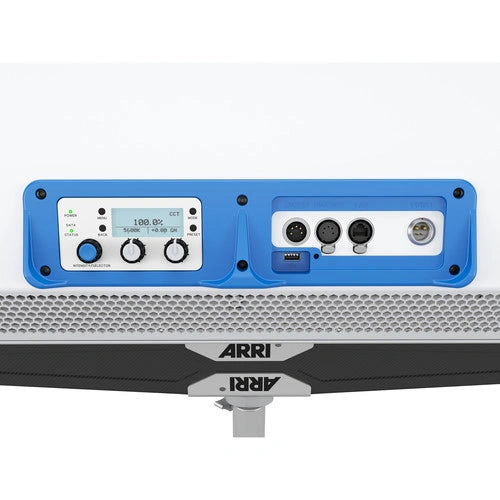

Adapted from technology initially developed for the L7-C Fresnel, the SkyPanel S360-C offers complete color tuning from warm 2800K through cool 10,000K. Its full RGB+W gamut includes detailed hue and saturation adjustment, and green-magenta correction is available across plus or minus 1/8. Users can therefore select an appropriate color directly when illuminating blue or green screens. This breadth of control contributes to a CRI of 95 and TLCI rating of 90. Local operation is possible through the integrated controller, while an optional wired remote, conventional DMX, or onboard LumenRadio wireless DMX and RDM provide remote access. These methods control every function, including 0-100% dimming. USB-A and Ethernet connections additionally support DMX configuration, fixture monitoring and operation, plus firmware installation from a flash drive, Windows system, or Mac.
Worldwide operation is supported by the supplied 100-240 VAC power source. The fixture also includes a Junior (1-1/8") pin, Standard diffuser, and Edison mains lead. This particular version uses a manually adjusted carbon-fiber yoke.
Expansive Light-Emitting Surface
Exceptional Light Output
Integrated Wireless DMX Operation
Complete Color Adjustment
Large-Scale Lighting Effects
Interchangeable Diffusion
Lightweight Carbon-Fiber Yoke
Docking Support for a Dedicated Remote
Photometric Output
3200K: 5156 lux / 479 fc
5600K: 4833 lux / 449 fc
ARRI SkyPanel Remote
Operate an ARRI SkyPanel from a distance with this wired SkyPanel Remote from ARRI. It reproduces the functions of the fixture's integrated controls, including its informational LCD, while the supplied USB cable permits operation from as far as 16' away. An ergonomic shape promotes comfortable, straightforward handling.
Aluminum construction is protected by rubberized corners, and an integrated magnet allows attachment to many compatible surfaces, including steel light stands. The included lead connects through the remote's Type-B USB port. A carrying case is supplied for protection during transportation and storage.
ARRI Super Clamp Adapter for SkyPanel S30 and S60 PSU
The Super Clamp Adapter for SkyPanel S30 and S60 PSU LED fixtures from ARRI connects to a SkyPanel power supply without requiring tools. Once attached, it enables the PSU to be secured to numerous compatible structures, including sections of light stands and truss.
