SKU: L0.0007714

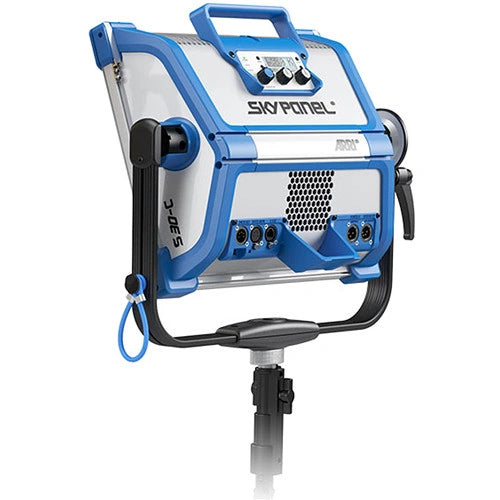

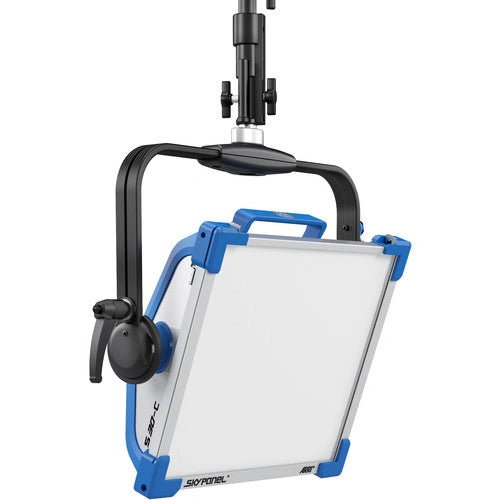

ARRI SkyPanel S30-C LED Softlight (Blue/Silver, Bare Ends)

Name: ARRI SkyPanel S30-C LED Softlight (Blue/Silver, Bare Ends)
Brand: Arri
SKU: L0.0007714
Price: 15908.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

With the blue-and-silver SkyPanel S30-C LED Softlight, ARRI expands its LED fixture range while continuing its emphasis on faithful color reproduction. A pole-operated aluminum yoke supports the portable panel, whose 14 x 11.8" illuminated surface is well suited to mobile productions. Interchangeable thermoplastic diffusers in Standard, Lite, and Heavy strengths control softness and help the illumination wrap around a subject. Although it consumes no more than 240W, the SkyPanel S30-C delivers output comparable to a 1000W tungsten soft light.

Technology first developed for the L7-C Fresnel gives the fixture full color tunability, including a CCT span from a warm 2800K to a cool 10,000K. Its complete RGB+W gamut provides detailed hue and saturation adjustment, while correction extends from full minusgreen through full plusgreen. For blue- or green-screen work, the desired chroma color can therefore be selected directly. This control contributes to a CRI of 95 and a TLCI rating of 91. Every function, including continuous 0-100% dimming, is accessible from the onboard controller or remotely through DMX or LAN. Alongside the necessary control inputs and outputs, a USB-A port permits firmware installation from a thumb drive, Windows computer, or Mac.

An included 90-250 VAC power supply allows worldwide mains operation, while separately available 23-36 VDC batteries can run the light where AC power is inaccessible. The package also contains a standard diffuser and a combination baby/junior (5/8" | 1-1/8") pin. This configuration includes a 3.3'-long bare-ends DC power cable.

Precise, Fully Adjustable Color

Drawing on technology from ARRI's established L-Series LED Fresnels, the SkyPanel combines high output with exceptional soft-light flexibility. Color-designated SkyPanel "C" models permit complete adjustment of correlated color temperature from 2800K to 10,000K while maintaining accurate rendition throughout the range. A single knob moves correction from full plusgreen to full minusgreen, and separate controls provide vivid color selection with saturation adjustment. This versatility covers tasks ranging from rapidly changing CCT to shape a scene's atmosphere to producing chroma green for keying work. Computer calibration of every LED engine maintains accurate color temperatures and consistency between individual units and production batches.

Authentic Soft-Light Output

A broad, uniform field and smooth illumination define a true soft source. By combining carefully selected diffusion panels with a large emitting surface and LED mixing chamber, the SkyPanel wraps light around objects, reduces hard-edged shadows, and serves effectively as a beauty light. Both intensity and color remain even throughout the beam.

Clean, Natural-Looking Shadows

Calibrated red, green, blue, and white LEDs blend into one consistent soft beam, providing both refined illumination and natural shadow reproduction. Shadows retain clean edges without color fringing or the multiple outlines sometimes produced by mixed sources.

Adaptability as Standard

Although conceived primarily as a soft source for illuminating people, the SkyPanel includes numerous features that suit other applications. Front diffusion panels exchange in seconds, making a transition from Heavy to Lite diffusion quick and straightforward.
An integrated battery input accepts industry-standard batteries, and the S30 can deliver full output while operating from battery power.
With an optional silk cylinder, the fixture can function as a space light and cast a broad, downward pool of color-adjustable soft illumination.

Engineered for Long-Term Use

Hand-assembled in Germany to ARRI's recognized manufacturing standards, the SkyPanel uses robust materials selected for professional environments. Fiberglass-reinforced thermoplastics surround an aluminum core, producing a sturdy fixture capable of enduring intensive daily work on active film sets. Its electronics are designed for a service life ranging from at least 25,000 to as many as 50,000 hours, and the LED engine supports recalibration.

Comprehensive yet Accessible Control

The SkyPanel interface places extensive adjustment within an approachable control layout. Three uncomplicated knobs provide immediate access to color temperature, green/magenta balance, output intensity, hue, and saturation. Every function can additionally be managed from a distance through either DMX or LAN.

Photometric Measurements

At 16.4' and 3200K:

With Standard Diffusion: 217 lux / 20 fc
With Lite Diffusion: 235 lux / 22 fc
With Heavy Diffusion: 180 lux / 17 fc
With Intensifier: 282 lux / 26 fc

At 16.4' and 5600K:

With Standard Diffusion: 222 lux / 21 fc
With Lite Diffusion: 240 lux / 22 fc
With Heavy Diffusion: 185 lux / 17 fc
With Intensifier: 289 lux / 27 fc

Key Specs

Item Type	1x LED Light Panel
Included Storage Case	No
Photometrics at 3.3' / 1 m	3200K: 513 fc / 5526 Lux 5600K: 502 fc / 5409 Lux
Color Temperature	10,000 to 2800K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 91
Dimming	Built-In Dimmer / DMX / RDM (Continuous) • 0 to 100%
Front Accessory Mount	Proprietary
Power Source	AC Power (Cable Included) Battery (Not Included)
Battery Plate Type	2x V-Mount (Not Included) 2x Gold Mount (Not Included)
Battery	2x Rechargeable (Not Included)
Input Power	48 VDC 23 to 36 VDC 110 to 250 VAC, 50 / 60 Hz
Power Consumption	220 W
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Light Fixture

Item Type	1x LED Light Panel
Included Filters	Diffusion
Included Storage Case	No
Photometrics	3200K: 513 fc / 5526 Lux at 3.3' / 1 m* 57 fc / 614 Lux at 9.8' / 3 m 21 fc / 221 Lux at 16.4' / 5 m 5600K: 502 fc / 5409 Lux at 3.3' / 1 m* 56 fc / 601 Lux at 9.8' / 3 m 20 fc / 216 Lux at 16.4' / 5 m *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	10,000 to 2800K +/- 100K (with 200K Shift over Lifetime)
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 91
Dimming	Built-In Dimmer / DMX / RDM (Continuous) • 0 to 100%
Cooling System	Fan
Expected Lamp Life	50,000 Hours (L70)
Beam Angle	110°
Built-In Flash	No
Preprogrammed Effects	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Power & I/O

Power Source	AC Power (Cable Included) Battery (Not Included)
Inputs/Outputs	Light Fixture 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x etherCON/RJ45 DMX Input 1x USB-A Remote/Service Input 1x XLR 3-Pin Power Input (48 VDC) 1x XLR 4-Pin Battery Input (23 to 36 VDC) Power Supply/Controller 1x powerCON TRUE1 AC Power Input 1x powerCON TRUE1 AC Power Output 1x XLR 3-Pin Power Output (48 VDC)
Battery Plate Type	2x V-Mount (Not Included) 2x Gold Mount (Not Included)
Battery	2x Rechargeable, 23 to 36 VDC (Not Included)
Input Power	48 VDC 23 to 36 VDC 110 to 250 VAC, 50 / 60 Hz
Included Adapter / Cable	1x Bare Ends to powerCON TRUE1 Cable
Inline Switch	No
Power Pass-Thru	Yes
Power Consumption	220 W

Mounting

Yoke Type	Pole-Operated Yoke (180° Tilt)
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

General

Display	No
Environmental Resistance	Dust-Resistant (IP20)
Operating Conditions	-4 to 113°F / -20 to 45°C
Certifications	CB, CE, ENEC, FCC, PSE, cNRTLus
Dimensions	15 x 4.6 x 3.5" / 38.3 x 11.6 x 9 cm (Power Supply/Controller) 15.6 x 13.5 x 5.2" / 39.7 x 34.2 x 13.3 cm 22 x 20 x 5.2" / 55.9 x 50.7 x 13.3 cm (Fixture with Yoke) 14 x 11.8" / 35.5 x 30 cm (Fixture Panel)
Weight	19.4 lb / 8.8 kg (Fixture with Yoke) 5.5 lb / 2.5 kg (Power Supply/Controller)
