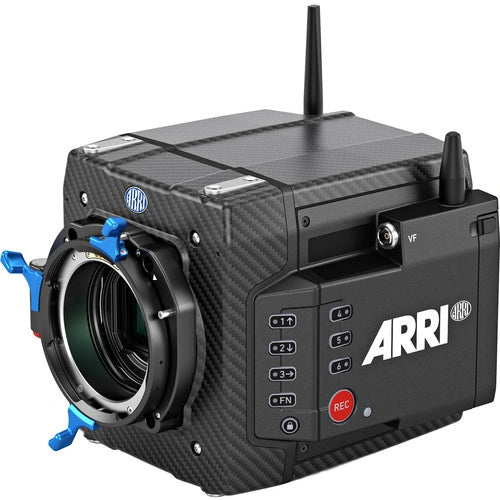

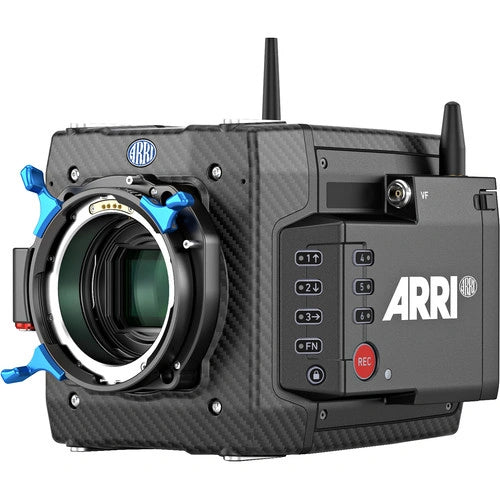

ARRI ALEXA Mini LF and Lens Mount Set (LPL)

ARRI ALEXA Mini LF and Lens Mount Set (LPL)

In stock

Whatsapp Icon WhatsApp us for inquiries
View full details

Learn from B&H Experts

From Manufacturer

The ARRI ALEXA Mini LF (LPL) camera in this Lens Mount Set uses a large-format 4K development of the original ALEXA sensor. Three native 4K sensor modes support ARRIRAW or ProRes capture in LF Open Gate, LF 16:9, and LF 2.39:1. Combining large-format resolution with an optimal pixel size produces excellent image quality, including vivid nuance, natural skin color, and smooth bokeh. The large-format-optimized ARRI LPL mount accepts all PL lenses through a PL-to-LPL adapter. A wider opening and shorter flange focal distance than the original ARRI PL design allow smaller, lighter LPL optics.

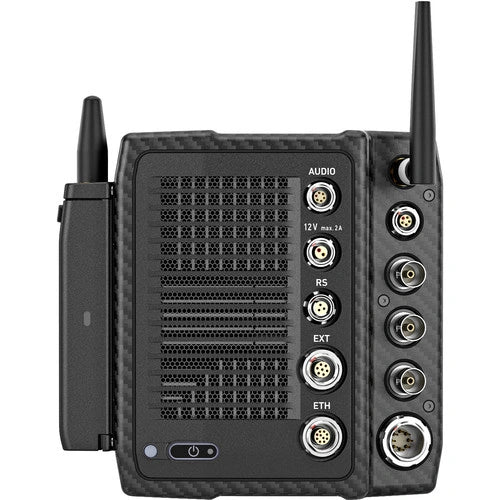

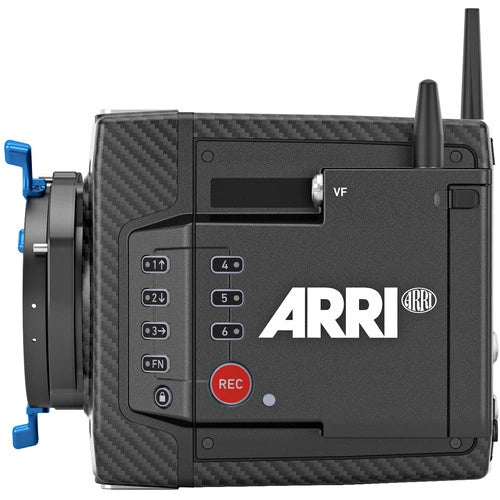

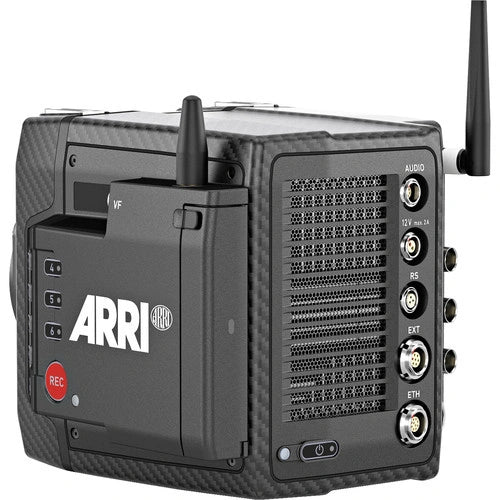

Combining characteristics of the ALEXA LF and ALEXA Mini, the ALEXA Mini LF retains the LF sensor inside a Mini-style body. Its redesigned exterior places a media compartment on the left, two connector rows on the rear, and a slot for 1TB Codex media. Six configurable user buttons provide three more than the Mini. Additional connections include 12 and 24V power outputs plus a black-burst/tri-level input. Moving audio to a 6-pin connector prevents interference with the 5-pin timecode port.

The Mini LF records MXF ARRIRAW and MXF ProRes formats to 1TB Codex capture drives. Footage is effectively prepared for future HDR displays through EI 800 base sensitivity, 16-bit processing, and more than 14 stops of dynamic range. Rates reaching 90 fps produce smooth slow-motion footage and higher-clarity HFR (High Frame Rate) acquisition.

Its internal Large-Format Full-Spectrum Neutral Density (LF FSND) system supplies 0.6, 1.2, and 1.8 filtration. Further functions include support for existing ARRI Look files and workflows, playback of MXF ARRIRAW and MXF ProRes clips, and two-channel audio input through a 6-pin XLR connection.

This set combines the ALEXA Mini LF body with an ARRI LPL lens mount and PL-to-LPL adapter, enabling work with varied lenses.

Large Full-Frame Sensor with Three Operating Modes

High resolution is paired with optimal pixel dimensions to maintain the excellent image quality associated with the broader ALEXA range. The three recording areas are 4448 x 3096 Open Gate, 3840 x 2160 16:9, and 4448 x 1856 2.39:1 anamorphic.

Native 4K Recording with ALEXA Image Quality

The ALEXA Mini LF captures natural-looking skin tones and richly nuanced, vivid imagery in native 4K. Colorimetry compatible with WCG (Wide Color Gamut) and HDR (High Dynamic Range) workflows supports a subtle and immersive visual character.

Array of Recording Choices

With Codex capture drives, available rates extend to 40 fps in both MXF ARRIRAW and MXF ProRes 4444 XQ for LF Open Gate; 90 fps MXF ARRIRAW and 60 fps MXF ProRes 4444 XQ for LF 16:9; and 60 fps in both formats for LF 2.39:1 anamorphic. All three sensor configurations offer MXF ARRIRAW and MXF ProRes 444 XQ/4444/422 HQ/422 options.

Wide Exposure Latitude

HDR production benefits from a base sensitivity of ASA 800, reduced noise, and 14+ stops of dynamic range.

New LPL Lens Mount

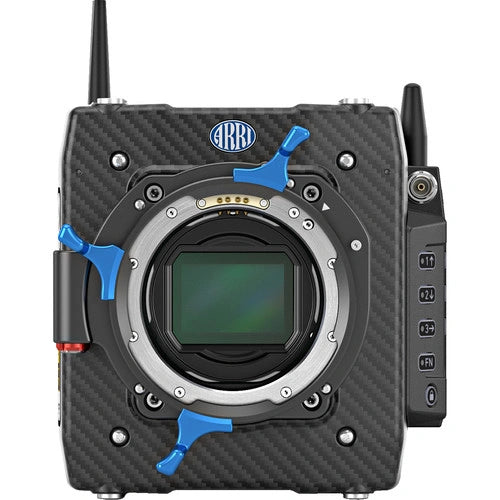

Integrated into the ALEXA Mini LF, the LPL mount is designed expressly for large-format sensors. Relative to the original ARRI PL mount, its wider diameter and shorter flange focal depth enable more compact, lighter-weight LPL lenses than earlier large-format designs.

ARRI Signature Primes

The 16 separately available ARRI Signature Primes are large-format LPL lenses spanning 12 to 280mm. Their imagery features natural skin color, smooth bokeh, and an organically pleasing quality. ARRI's fast, comprehensive LDS-2 metadata system is included, while machined-magnesium bodies improve durability and reduce weight.

Compatible with PL Lenses, ALEXA Accessories, and Workflow Tools

Most lenses, accessories, and production workflows built around the ALEXA Mini remain compatible with the ALEXA Mini LF, including established ARRI Look files and software utilities. A separately sold PL-to-LPL adapter works with any Super 35 or full-frame PL lens. The camera transmits information from LDS-2, LDS-1, and Cooke /i lens-data systems.

Image Processing

Internal: 16-bit linear processing in full ALEXA Wide Gamut/Log C color space
Target Output: Log C, Rec 709, or Rec 2020 color spaces
Supports ARRI Look File (ALF-2) with CDL values and a 3D LUT
3D LUTs available for SDR, HDR PQ, and HDR HLG

Internal ND Filter

Select among integrated Large-Format Full-Spectrum Neutral Density (LF FSND) filtration at ND 0.6, 1.2, or 1.8.

Playback

Review MXF ProRes and MXF ARRIRAW footage directly on the ALEXA Mini LF.

Key Specs

Lens Mount
Interchangeable Mount with Included ARRI LPL
Image Sensor
ARRI Large Format
Effective Sensor Resolution
13 Megapixel (4448 x 3096)
Image Stabilization
No
ISO/Gain Sensitivity
Native: 160 to 3200
Max Recording Modes
ARRIRAW/MXF/ARRIRAW
Up to 4.4K up to 40 fps
MXF/ProRes/ProRes 422/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ
Up to 4.4K up to 40 fps
Media/Memory Card Slot
Slot 1: Codex Compact Drive
Mobile App Compatible
No

Imaging

Lens Mount
Interchangeable Mount with Included ARRI LPL
Lens Communication
Yes: Cooke /i, ARRI LDS, ARRI LDS-2
Image Sensor
36.7 x 25.54 mm (ARRI Large Format) CMOS
Effective Sensor Resolution
13 Megapixel (4448 x 3096)
Image Stabilization
No
Built-In ND Filter
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Internal Filter Holder
No
Capture Type
Video Only

Exposure Control

Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/8000 to 1 Second
Shutter Angle
5 to 356°
ISO/Gain Sensitivity
Native: 160 to 3200
Advertised Dynamic Range
14 Stops
White Balance
Range: 2000 to 11,000K
Presets: Auto, Color Temperature, Manual

Focus

Focus Mode
Automatic, Manual Focus

Video Capture

Internal Recording
ARRIRAW/MXF/ARRIRAW
4448 x 3096 up to 40 fps
2880 x 2880 up to 60.00 fps*
3424 x 2202 up to 60.00 fps*
3840 x 2160 up to 60.00 fps*
4448 x 1856 up to 60.00 fps
MXF/ProRes/ProRes 422/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ
4448 x 3096 up to 40 fps
2880 x 2880 up to 60.00 fps*
3840 x 2160 up to 48.00 fps*
2880 x 2160 up to 75 fps*
4448 x 1856 up to 60.00 fps*
3200 x 1800 up to 75 fps*
1920 x 1080p up to 75/100 fps*
*Sensor Crops During Recording
Fast-/Slow-Motion Support
Yes
Gamma Curve
ARRI Log C, Rec709, Rec2020
Built-In Microphone
Stereo
Audio Recording
MXF: 2-Channel, 24-Bit at 48 kHz via LPCM Audio

Interface

Media/Memory Card Slot
Slot 1: Codex Compact Drive
Internal Storage
No
Video I/O
2x BNC (6G-SDI) Output
Audio I/O
1x 6-Pin LEMO Input
Power I/O
1x LEMO 8-Pin (10.5 to 34VDC) Input
1x RS 3-Pin (24VDC) Output
1x LEMO 2-Pin (12VDC) Output
1x Proprietary (24VDC) Output
Other I/O
1x LEMO 5-Pin (Timecode) Data Input/Output
1x LEMO 10-Pin (LAN) Control/Data Input/Output
1x BNC (Sync) Control Input
1x LEMO 7-Pin Monitor/Video Input/Output
1x USB-A (USB 2.0) Data
1x Proprietary Viewfinder
Wireless
Wi-Fi
Mobile App Compatible
No
Global Positioning (GPS, GLONASS, etc.)
No

Viewfinder

Type
Optional, Not Included

Power

Power Consumption
≥65 W

Environmental

Operating Conditions
-4 to 113°F / -20 to 45°C
Storage Conditions
-22 to 158°F / -30 to 70°C

General

Accessory Mounting Thread
5x 3/8"-16
Netflix Approved
Yes
Dimensions (W x H x D)
7.4 x 5.6 x 5.5" / 188 x 143 x 140 mm
Weight
5.7 lb / 2.6 kg (With Lens Mount Adapter)

Packaging Info

Package Weight
10 lb
Box Dimensions (LxWxH)
19.9 x 16.2 x 15.8"

Key Features

  • Large-Format 4448 x 3096 Sensor
  • Native 4K Recording in ARRIRAW & ProRes
  • Large-Format Optimized LPL Lens Mount
  • Open Gate, 16:9 & 2.39:1 Anamorphic Mode
  • Native 800 ASA, 14+ Stops Dynamic Range
  • Array of ARRIRAW & ProRes Capture Modes
  • Works with Most ALEXA Mini Components
  • Internal FSND 0.6, 1.2 & 1.8
  • PL-to-LPL Adapter Included
