SKU: Amaran F22x

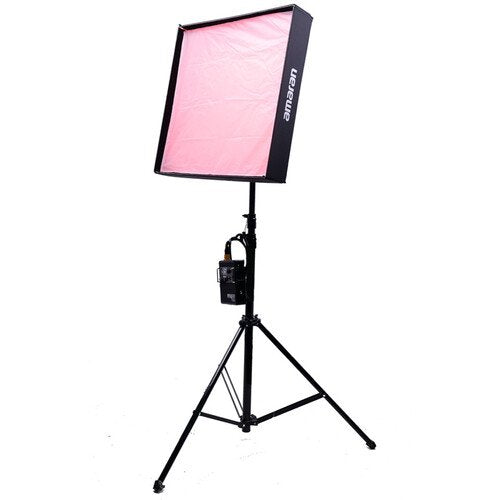

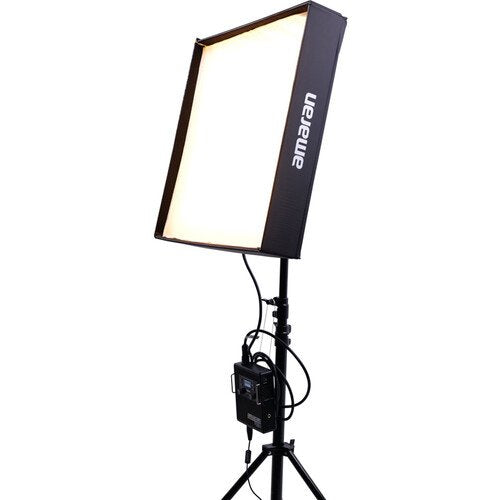

Aputure Amaran F22x Bi-Color LED Mat (V-Mount, 2 x 2')

Aputure Amaran F22x Bi-Color LED Mat (V-Mount, 2 x 2')

In stock

View full details

Aputure Amaran F22x Bi-Color LED Mat (V-Mount, 2 x 2'): Guide


The Amaran F22x  Bi-Color LED Mat from amaran is capable, versatile, and adaptable bi-color LED mat that protection 2 x 2' by.
the unit supplies outstanding light feed and color rendering appropriate for a variety of operators, from creators to videographers, material creators, and still photographers. Delivering 200W of power, this ultralight fixture's high-output bi-color chipset can be tuned from 2500K to 7500K, and provides nine customizable lighting FX.
It has stellar CRI and TLCI scores of 95+ and 98+, and stepless dimming from 0 to 100%. An supplied folding X-frame stretches the mat to a rigid interface that can be mounted directly to a C-stand handhold head through the straight Baby Pin interface, or onto any conventional light stand with the supplied right angle Baby Pin and tilting stand fitting.

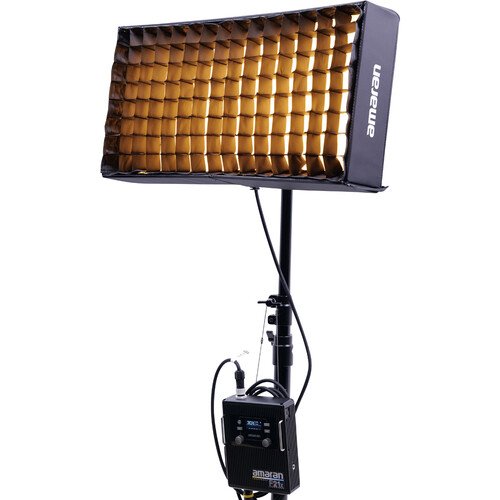

The supplied foldable softbox has two strengths of diffusion, and a fabric grid that uses through a built-in hook-and-loop fabric to instantly turn this adaptable mat into an ultrathin soft illumination that will attach beautifully managed soft illumination to a scene.
The control box is a multi-voltage AC power adapter that additionally contains a V-Mount battery plate for use with compatible 14.4V, 26V, or 28.8V battery packs. Full feed can be achieved whenever using the AC power supply, through batteries enables the F22x to be employed at either half-power or full-power, depending on battery intensity.
The no-cost Sidus Stage app makes it possible to apply tools distinct to the Aputure and amaran ecosystems, such as Source Match, Colour Picker, and Custom FX.
The F22x can additionally be controlled through DMX with a separately provided USB-C to 5-Pin DMX512 in & output adapter lead, attaching professional-level control to an individual device or groups of lighting.
The amaran F22x is excellent for videographers who requirement a versatile and literally adaptable lighting solution.
The bi-color adaptable panel gives operators unmatched intensity and control over a wide, broader CCT selection to match a selection of white light settings.
Find output more here.

Key capabilities:


  • 200W output
  • 2 x 2'' bi-color flexible LED mat
  • Color temperature from 2500-7500K
  • CRI: 95+, TLCI: 98+, CQS: 96+
  • SSI (Tungsten): 81+, SSI (D56): 72+
  • Stepless dimming from 0 to 100%
  • Ultralight LED mat
  • Sidus Link App control for smartphones & tablets
  • DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
  • 9 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing
  • Easy-mounting multi-voltage AC power supply with included V-Mount battery mount
  • Multiple DC power solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
  • Soft carrying case

You can additionally visit Aputure to see additional by clicking here.
[caption id="" match="alignnone" width="1000"]Aputure Amaran F22x Bi-Color LED Mat (V-Mount, 2 x 2') Aputure Amaran F22x Bi-Color LED Mat (V-Mount, 2 x 2') [/caption]

Key Features

  • Panel Surface Area: 2 x 2'
  • Color Temperature from 2500-7500K
  • CRI 95, TLCI 98, CQS 96
  • 200W Output
  • 0-100% Dimming, DMX Control
  • Multi-Voltage AC, Optional Battery Power
  • V-Mount Battery Compatible
  • Softbox Frame with Two Diffusers & Grid
  • 9.8" Head Extension Cable
  • Carrying Case
