In its primary imaging role,
Feed up to 4K footage from your Thunderbolt 3-enabled Windows/macOS computer or NLE to HDMI and SDI destinations for live broadcast, observation, switching, and capture processes with the T-TAP Pro from AJA. The T-Tap Pro enhances on its predecessor by delivering feed of up to 10/12-bit 4:4:4 footage in up to DCI 4K60 definition. The ultracompact T-Tap Pro feeds footage and embedded audio from a Thunderbolt 3-enabled computer and feeds it in the same broadcast-quality to professional and consumer monitors and capture gear via 12G-SDI and HDMI 2.0 feeds.
Both feeds can be used simultaneously at all times, and the HDMI feed can be connected directly into 4K HDMI monitors for observation HDR footage in PQ, HLG, HDR10, and Dolby Vision formats with third-party support. Audio support incorporates 16 channels of audio via the 12G-SDI feed and up to 8 channels of audio via the HDMI feed. Other functions incorporate 4K closed caption support, VPID signaling via SDI, HDR metadata, auto playback detection, a headphone jack, front-panel audio levels, and link status indicators.
The T-TAP Pro connects to the computer's Thunderbolt 3 connector and is powered through the included power supply.
SKU: T-TAP PRO

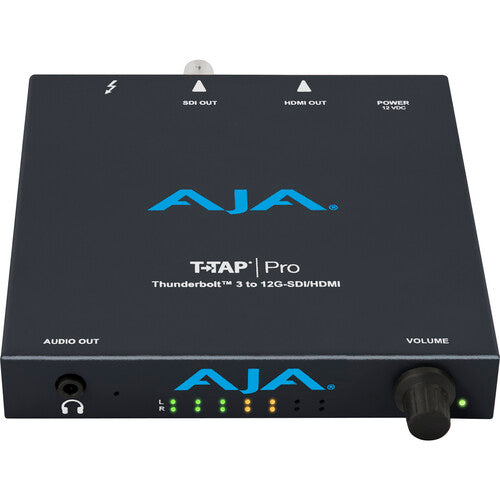

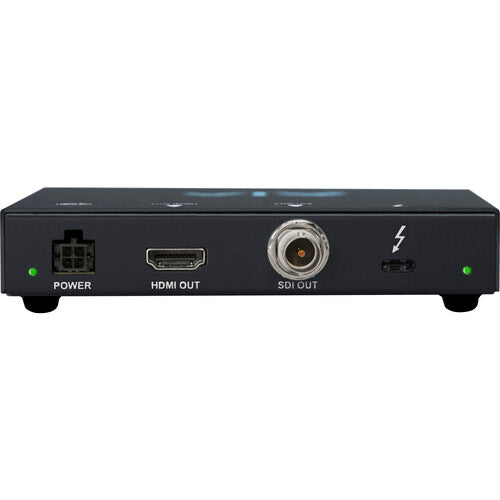

AJA T-TAP Pro Thunderbolt 3-Powered Converter with 12G-SDI and HDMI 2.0 Output
AJA T-TAP Pro Thunderbolt 3-Powered Converter with 12G-SDI and HDMI 2.0 Output
In stock
View full details

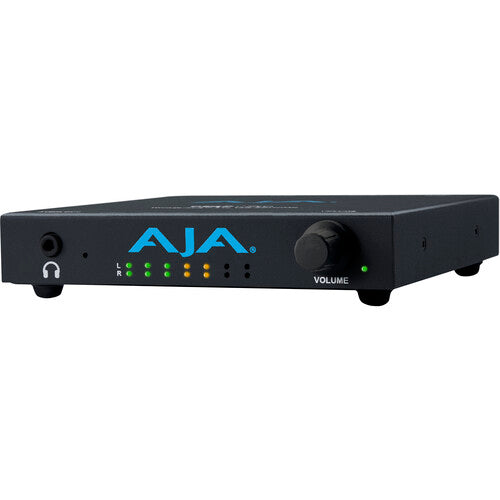

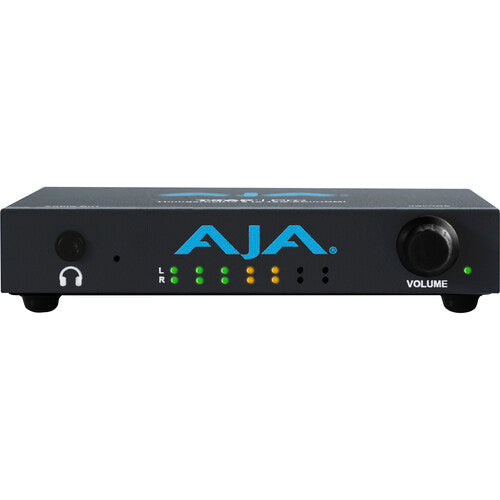

A Closer Look at AJA TAP-PRO
| Key Specs | |
|---|---|
| Video I/O |
1x BNC (12G-SDI) Female 1x HDMI 2.0 Female |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Audio Format | Analog Output: 48 kHz |
| Broadcast System Compatibility | NTSC |
| Wireless | No |
| OS Compatibility | Windows, macOS |
| Inputs / Outputs | |
| Other I/O | 1x Thunderbolt 3 |
| Expansion Slots | No |
| Latency | No |
| Format Support | |
| HDMI Input Resolution |
4096 x 2160 up to 60 fps 3840 x 2160 up to 60 fps 2048 x 1080p up to 60 fps 1920 x 1080p/i up to 60 fps 1280 x 720 up to 60 fps |
| SDI Input Resolution |
4096 x 2160 up to 60 fps 3840 x 2160 up to 60 fps 2048 x 1080p up to 60 fps 1920 x 1080p/i up to 60 fps 1280 x 720 up to 60 fps |
| HDMI Output | 8/10-Bit 4:4:4 / 4:2:2 RGB, YUV, YCC |
| SDI Output | 8/10-Bit 4:4:4 / 4:2:2 RGB, YUV, YCC |
| Embedded Audio |
HDMI: 8-Channel SDI: 16-Channel |
| Reclocking | No |
| Standards | |
| Video Standard Compliance | SMPTE: 259M-C / 292M / 425M / ST-2081 / ST-2082 |
| HDR Support | HDR10 / Dolby Vision / Hybrid Log Gamma |
| Power | |
| Power I/O | 1x Proprietary Input |
| Power Consumption | 18 W |
| General | |
| Operating Conditions | 32 to 95°F / 0 to 35°C at 10 to 90% Humidity |
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Dimensions | 5 x 5 x 1" / 12.7 x 12.7 x 2.5 cm |
| Weight | 8.1 oz / 230 g |
| Packaging Info | |
| Package Weight | 2.365 lb |
| Box Dimensions (L x W x H) | 10.15 x 6.4 x 5.1" |
Key Features
- Compact Unit, Connects via Thunderbolt 3
- 12G-SDI and HDMI 2.0 Output
- DCI 4K/UHD 4K/HD/SD Format Support
- RGB 4:4:4 12-Bit, YCbCr 4:2:2 10-Bit
- HDMI 8-Channel/12G-SDI 16-Channel Audio
- PQ/HLG/HDR10/Dolby Vision
- Headphone Jack with Audio Level Control
- Windows and macOS Support
- 4K Closed Captioning Support
- Power Supply Included
