SKU: KONA-HDMI4R-R0

AJA KONA HDMI 4-Channel HDMI Capture Card for Multi-Channel HD or Dual-Channel UltraHD

Name: AJA KONA HDMI 4-Channel HDMI Capture Card for Multi-Channel HD or Dual-Channel UltraHD
Brand: AJA
SKU: KONA-HDMI4R-R0
Price: 6311.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

A Closer Look at AJA KONA

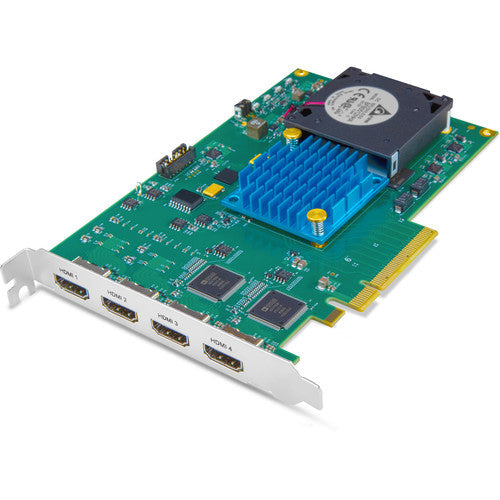

At the center of the specification, The AJA KONA HDMI 4-Channel HDMI Capture Card for Multi-Channel HD or Dual-Channel UltraHD is an 8-lane PCIe multi-channel HDMI capture card. Suitable for several processes such as gaming, streaming, VJ-ing, live events switching, vlogging, VR, post, and broadcast, this powerful card accommodates dual-channel capture up to 4K/UltraHD 60p or four-channel capture up to 2K/HD 60p.

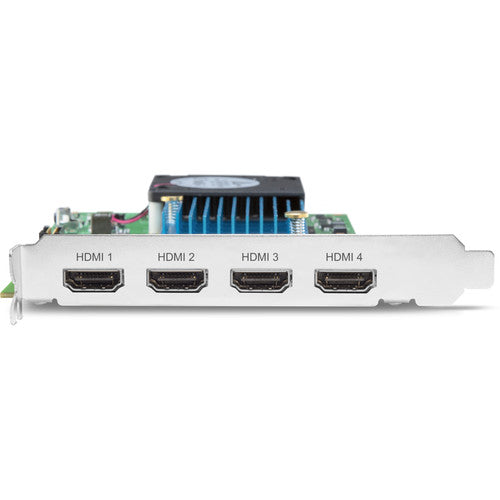

KONA HDMI offers four full-size HDMI ports that can be used to switch, stream, or capture up to four channels of 2K/HD 60p via HDMI 1.4b with third-party software. It accommodates up to 8 channels of embedded audio per source (32 channels total) and footage from SD to DCI 4K at up to 60p 4:2:2 10-bit.

Streaming and Multi-Channel HD Capture

KONA HDMI accommodates up to 4-channel 1080p HDMI capture. It works with streaming software like Wirecast and vMix, and handles AJA SDK and V4L2 for developers.

4K/UltraHD acquisition up to 60p

allows dual-channel 4K/UltraHD capture up to 60p over HDMI 2.0 through AJA Control Room software.

HDR: Guide

accommodates HDR signals from devices like PS4 Pro over HDMI.

Extensive Software compatibility

Compatible with editing, VFX, streaming, and broadcast software. Includes free AJA utilities.

OS Compatibility: Guide

Compatible with macOS, Windows, and Linux.

OS Compatibility	Windows macOS Linux
Expansion Slot	PCIe 2.0
Inputs	HDMI 2.0: 1 x Type A HDMI 1.4b: 3 x Type A
Supported Video Formats	4K DCI 4096×2160: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 UHD 3840×2160: same frame rates 2K 2048×1080p: 60 to 23.98 fps HD 1080p / 1080PsF / 1080i / 720p supported SD 625i / 525i
Video Sampling	Single Stream 4K/UltraHD up to 60p, 4:2:2, 10-bit Quad Stream HD/SD up to 60p, 4:2:2, 10-bit
Audio Sampling	8-channel HDMI embedded audio 48 kHz sample rate Up to 32 channels (quad stream)
Environment	0 to 40°C operating temperature 10–90% humidity (non-condensing) Up to 3000 m altitude
Dimensions	1.91 × 20.96 × 12.7 cm
Weight	0.14 kg
