SKU: KONA 1-S

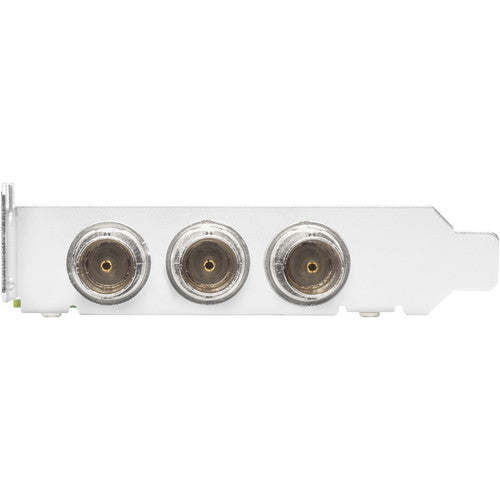

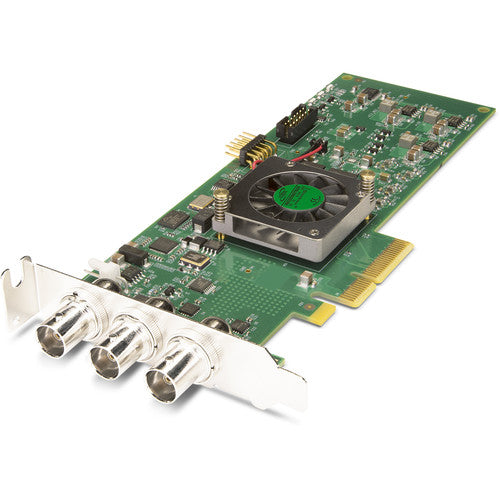

AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card

Name: AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card
Brand: AJA
SKU: KONA 1-S
Price: 3036.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

A Closer Look at AJA Kona 1

For professional deployment, The AJA KONA 1-S brings KONA 1 capture and playback capabilities to the short, low-profile card format. It's developed for OEM developers and enables an onboard link for an optional outboard RS-422 9-pin connector (while the tall version incorporates an integrated 9-pin connector).

Mac, Windows, and Linux compatibility is provided through its 2-lane PCIe 2.0 interface, while the card provides single-channel 3G-SDI 2K/HD 60p frame-accurate source/feed with selectable reference/LTC source. It also handles simultaneous monitoring during capture.

Video Formats	2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080PsF at 23.98, 24, 25 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94
Video Inputs	1 x 3G-SDI on BNC, SMPTE-259/292/296/424 Supports 16-channel 24-bit / 48 kHz embedded audio
Output	1 x 3G-SDI on BNC, SMPTE-259/292/296/424 Supports 16-channel 24-bit / 48 kHz embedded audio
Reference / LTC Input	1 x BNC (analog black / HD tri-level sync / LTC)
Interface	2-lane PCIe 2.0
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-40 to 60°C (-40 to 140°F)
Relative Humidity	10–90% non-condensing
Operating Altitude	< 3000 m (< 9850 ft)
Dimensions	1.9 x 18.4 x 7.9 cm
Weight	Approx. 0.3 lb / 135 g
