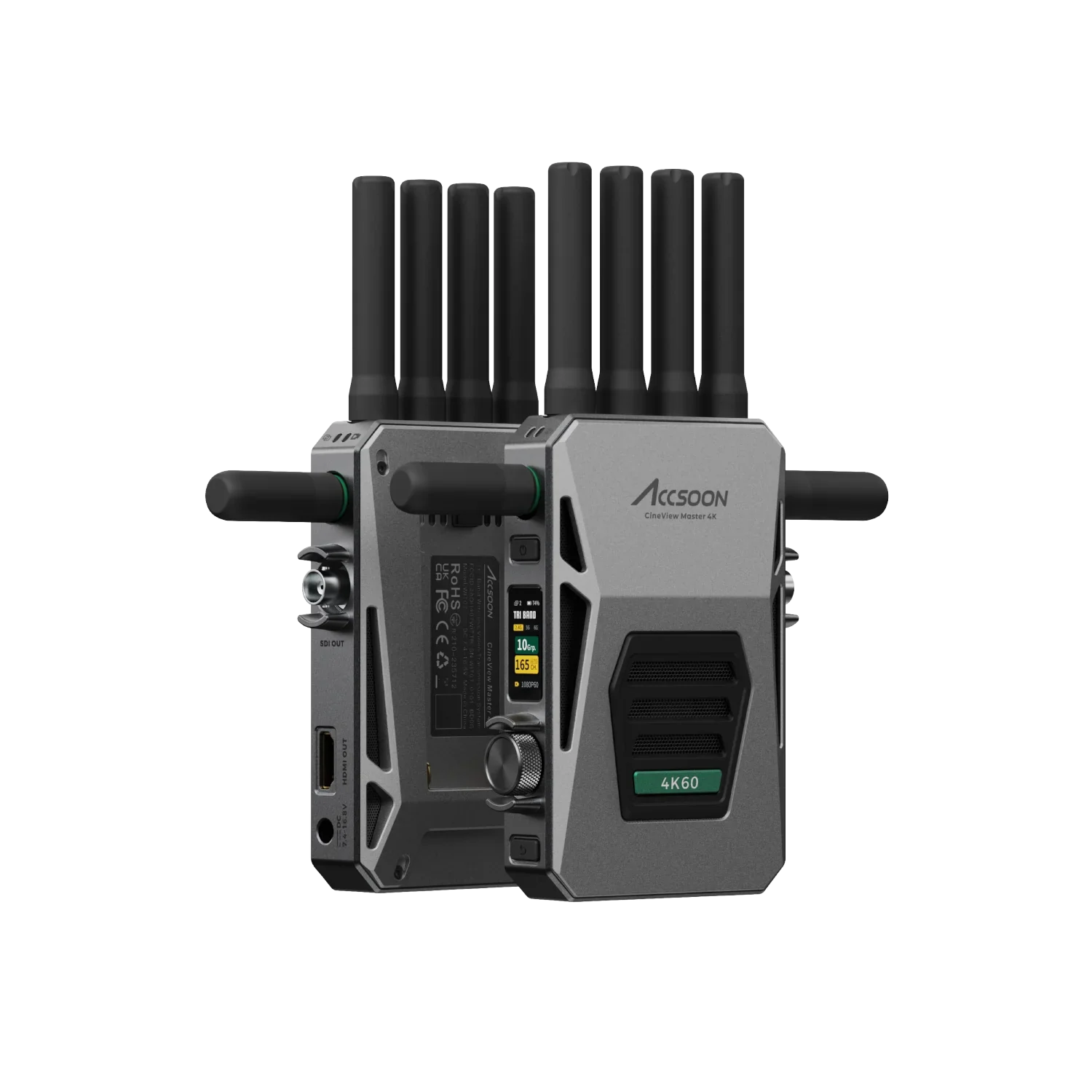

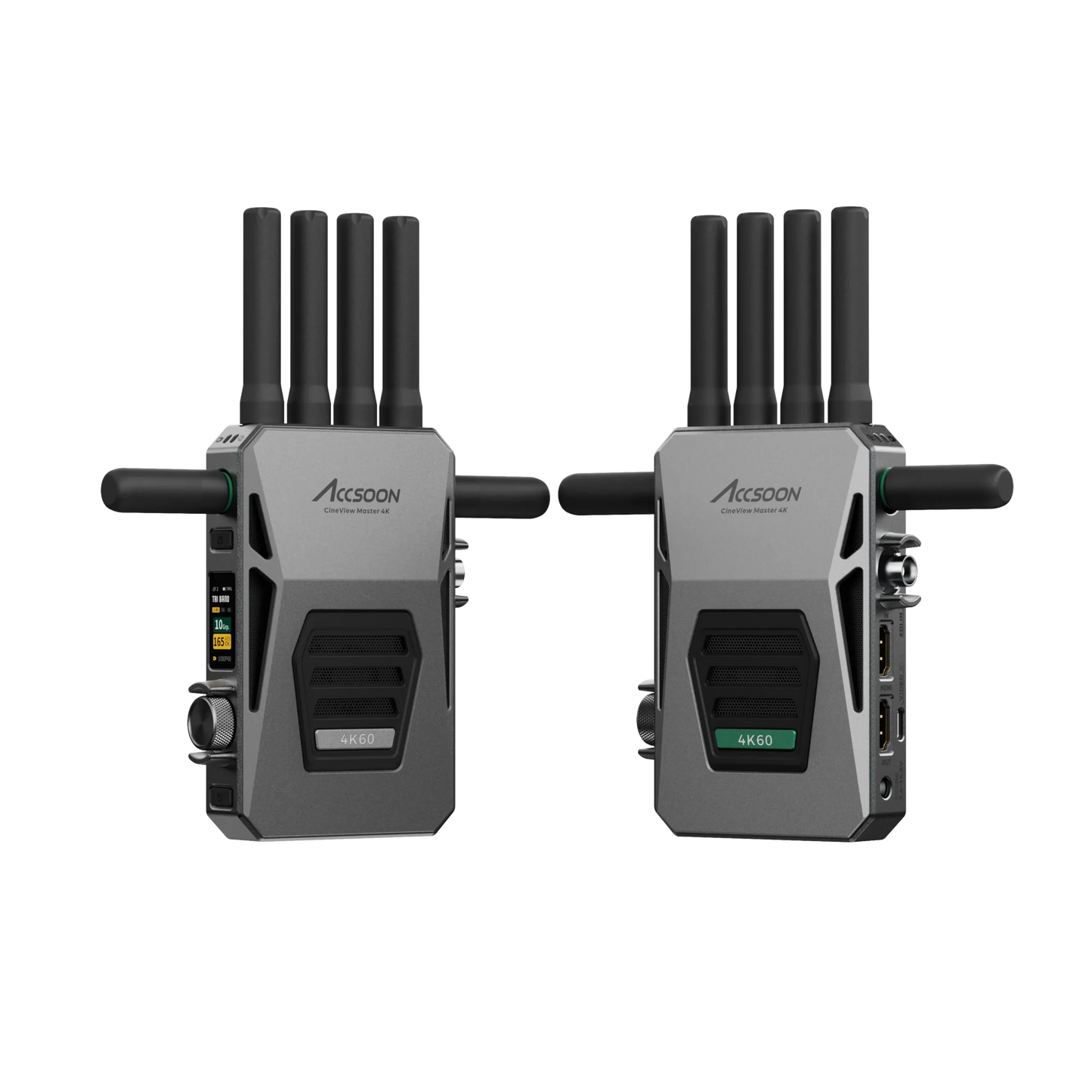

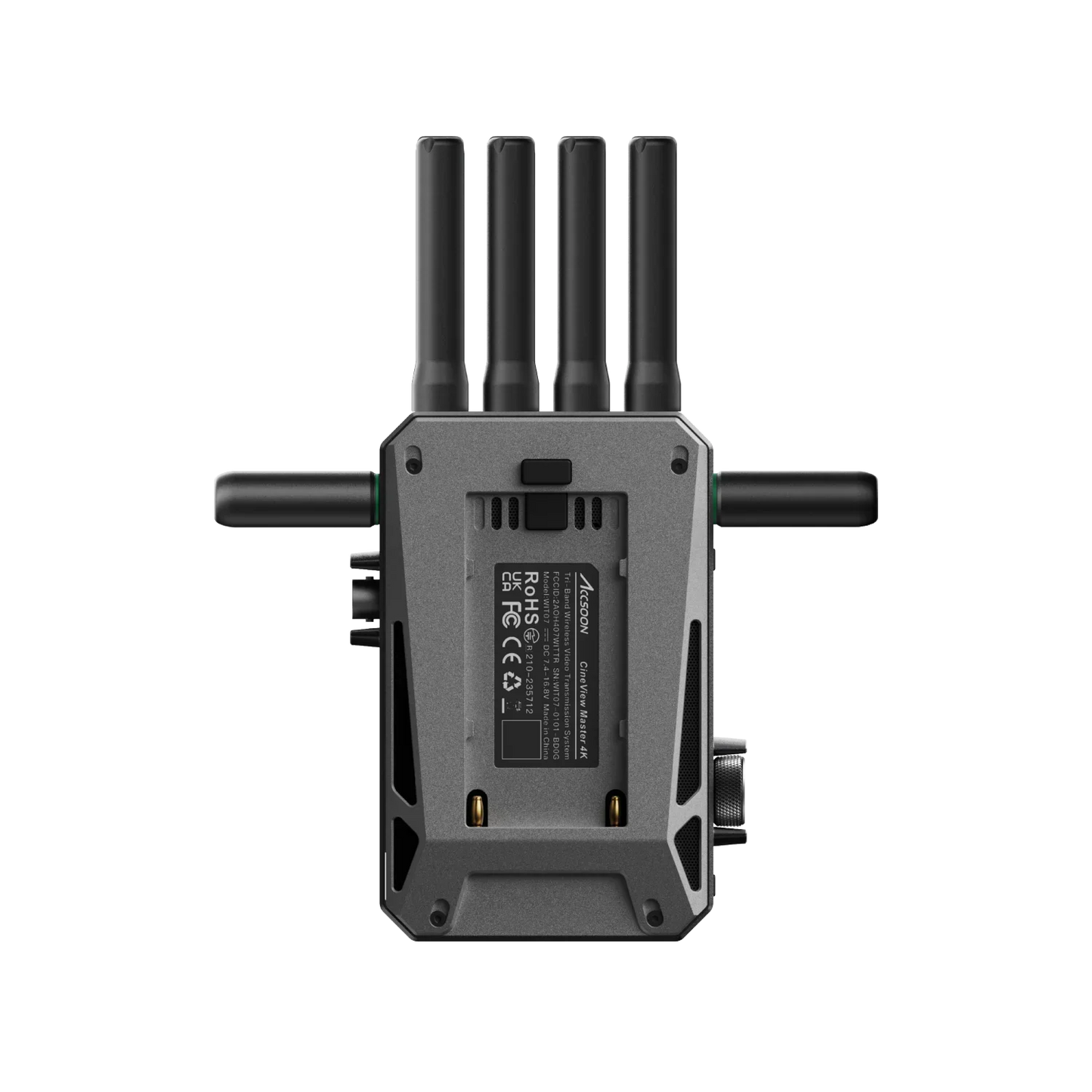

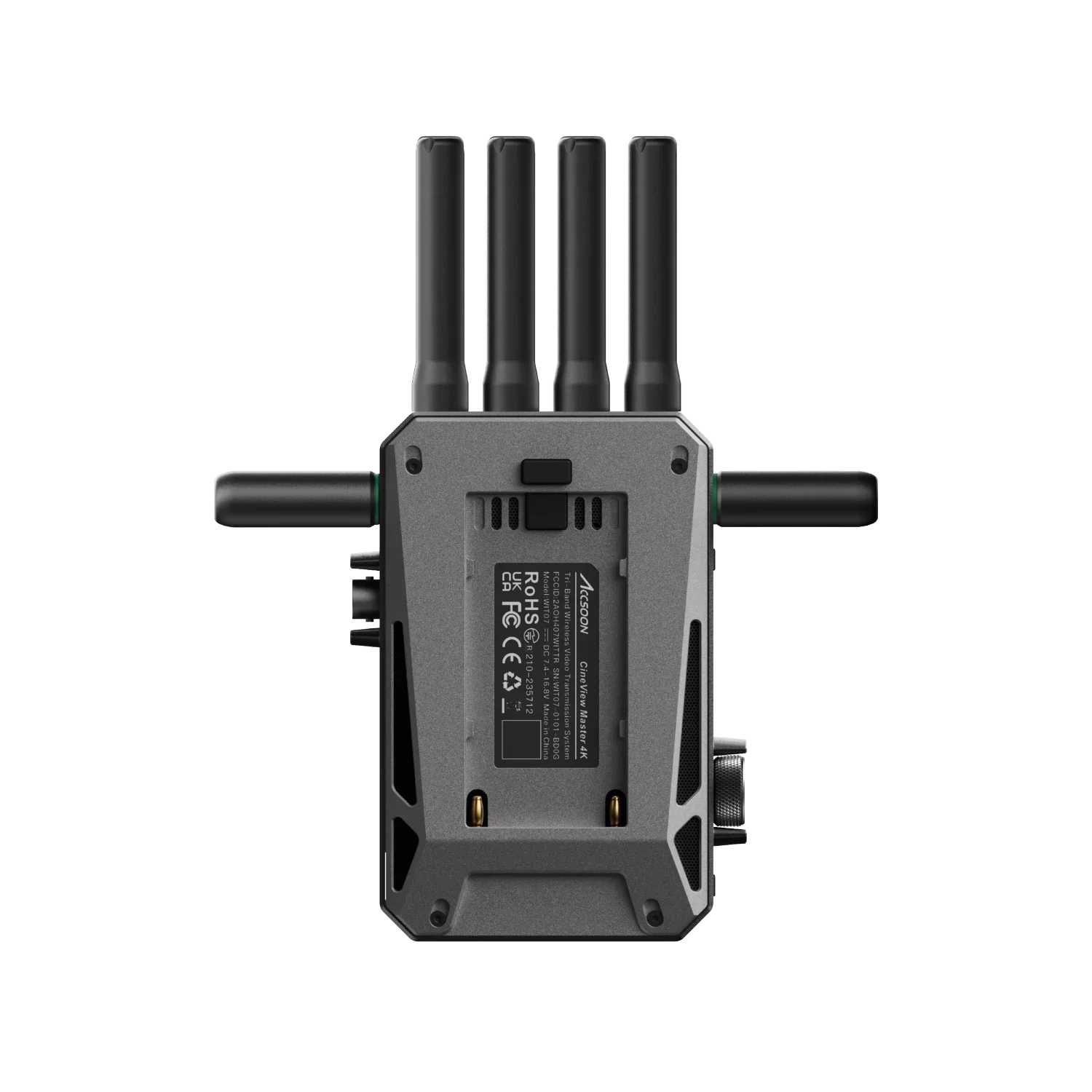

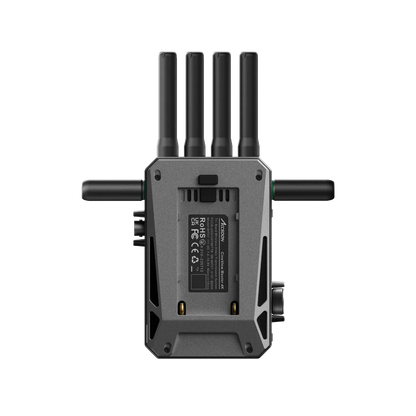

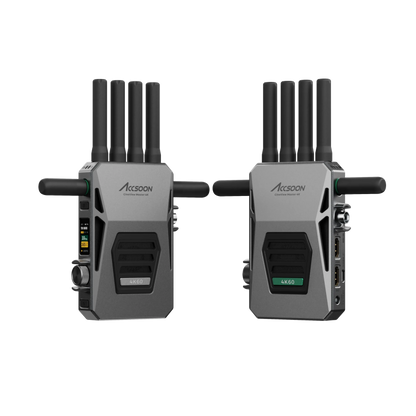

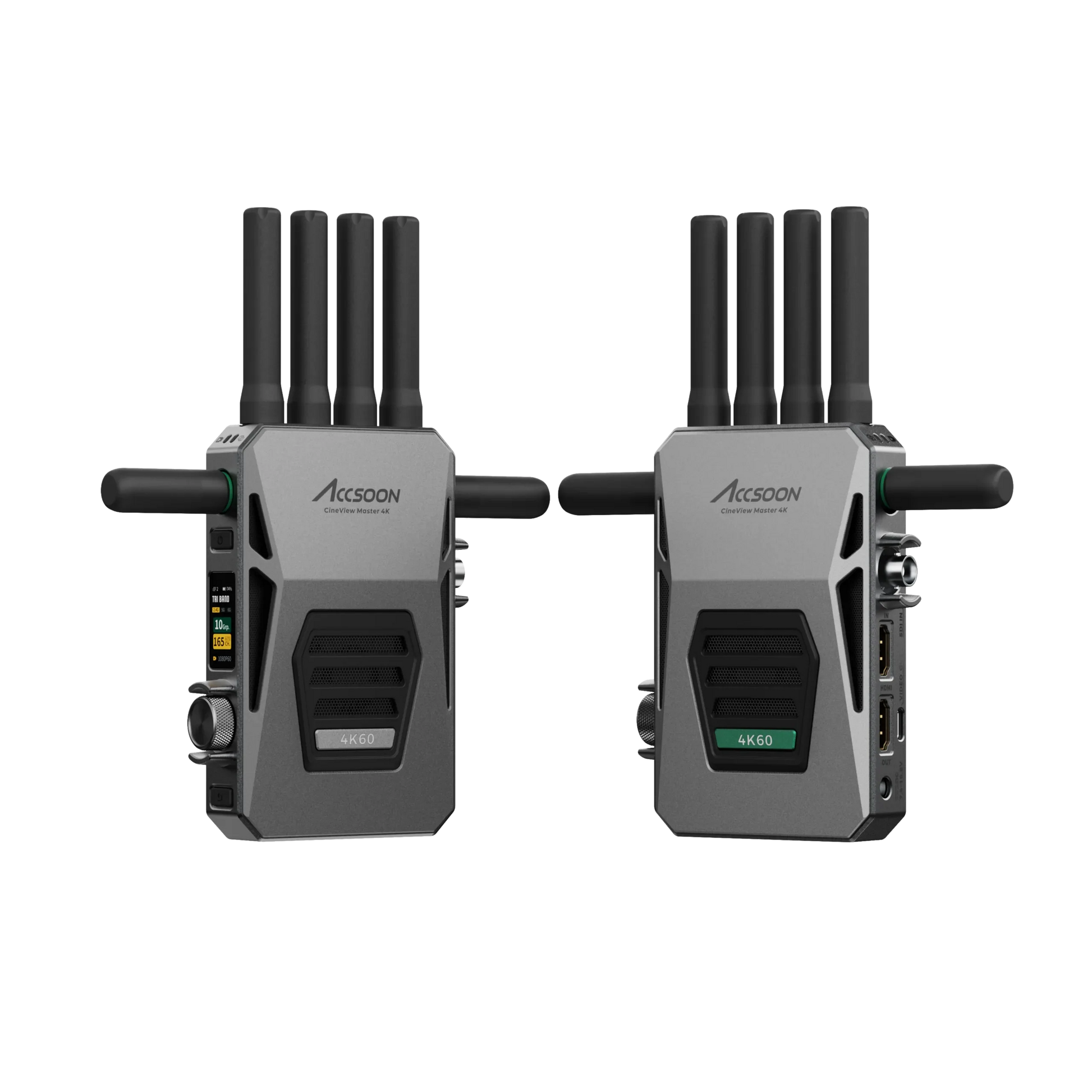

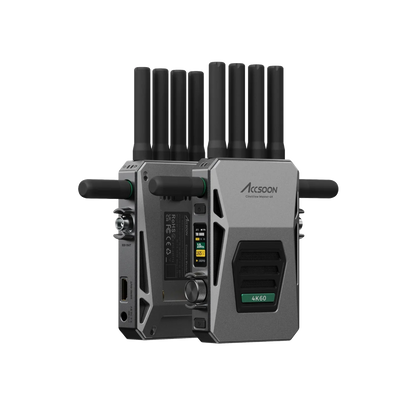

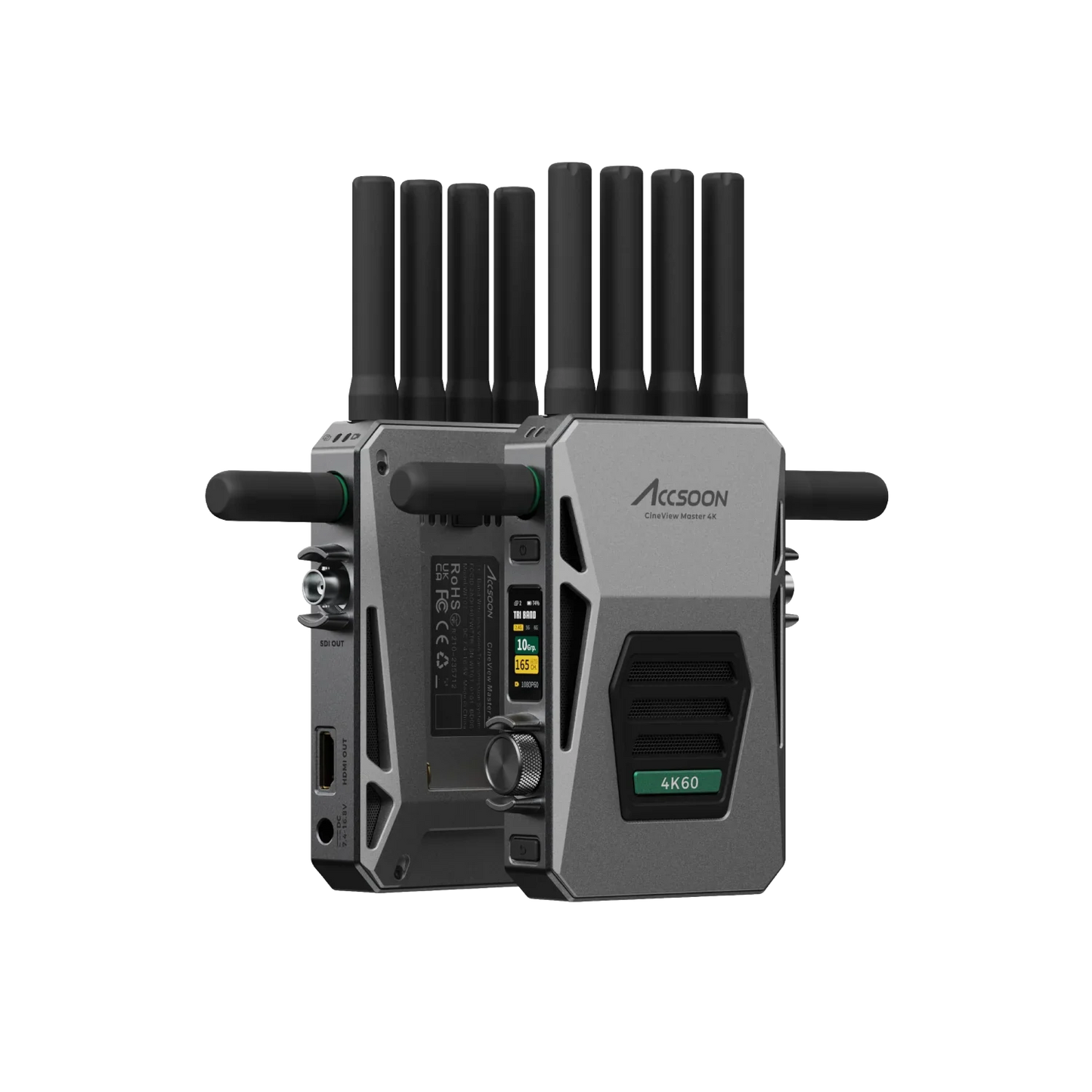

Accsoon Cineview Master 4K SDI/HDMI Wireless Video Transmitter/Receiver Kit

Accsoon Cineview Master 4K SDI/HDMI ( Cineview 4K ) Wireless video signal Transmitter/Receiver Kit

Key capabilities: — Accsoon Cineview Master

• 4K60 Video Transmission: Full end-to-end 4K60 video transmission, ensuring exceptional clarity from input to output, ideal for live-streaming, monitoring, recording, and production.
• Low Latency: Industry-leading <25ms latency, ensuring near real-time video transmission for precise monitoring and filming.
• Tri-Band Transmission: Utilizes 2.4GHz, 5GHz, and the new 6GHz frequencies, providing stable, high-speed wireless transmission with Accsoon's RTMS 4.0 protocol. The intelligent dynamic adjustment across three bands ensures robust connections, faster response times, and reduced interference.
• Extended Transmission Range: Boasts an impressive 2.5 km wireless transmission range, providing filmmakers with maximum creative flexibility.
• Multiple Video Streams: Supports multiple video streams, including 1 wired connection and up to 4 wireless connections, catering to diverse production needs.
• MFi Certified: MFi certification for seamless video streaming directly to iPhone/iPad with USB video output.
• Advanced Heat Dissipation: Features intelligent heat management with selectable fan speeds (Standard, Quiet, or Off) for performance in any environment.
• Apple Compatibility: Works flawlessly with iOS devices, supporting up to 4K60 resolution, while simultaneously charging the device during use via Lightning or USB-C connections.
• Camera to Cloud (C2C): Integration with Frame.io for real-time uploads from the camera to the cloud, enabling seamless collaboration and instant access to footage.

Technical Specifications of Accsoon Cineview Master 4K ( Cineview 4K ) Wireless video signal Transmitter :

• A/V Processor: 8K high-performance processor optimized for multi-video stream transmission.
• Video Input/Output:
  • Transmitter: HDMI 2.0, 3G SDI input, HDMI loop-out, USB video output to iOS.
  • Receiver: HDMI 2.0, 3G SDI output.
• Supported Resolutions:
  • ( Cineview 4K ) has HDMI Input/Output: 4K (3840x2160) up to 60fps, 1080p up to 60fps, 1080i up to 60i.
• Power Options:
  • Supports NP-F batteries and DC input (12V 2A).
  • Compatible with Accsoon V-lock battery adapter for extended usage.
• Transmission Range: ? 2.5 km (line of sight, no obstacles).
• Latency:
  • 1080p: < 25ms
  • 4K: < 35ms
• Power Consumption:
  • Transmitter: 6.5W average
  • Receiver: 5.0W average
• Dimensions:
  • Transmitter: 130mm x 95mm x 32mm, 322g (excluding antennas).
  • Receiver: 130mm x 95mm x 32mm, 320g (excluding antennas).
• Working Environment: -10°C to 40°C working temperature.

In the Box :: Guide

• CineView Master 4K transmitter
• CineView Master 4K receiver
• HDMI cables
• Power adapter
• Antennas
