Accsoon CineView 2 SDI - Wireless video signal Transmitter WIT08-S

At the center of the specification, Accsoon Cineview 2 SDI WIT08-S a newly launched wireless Footage Transmitter provides incredible 1500ft of range of Full HD (1080p) transmission (Line of Sight) with the low latency of <50ms. This is a drastic improvement as compared to it's predecessor Cineview SE which offered only 1200ft of range. Accsoon Cineview 2 SDI is equipped with HD-SDI, HDMI sources/feeds and HDMI Loop Out.

Built Quality of Accsoon CineView 2 SDI WIT08-S and Design

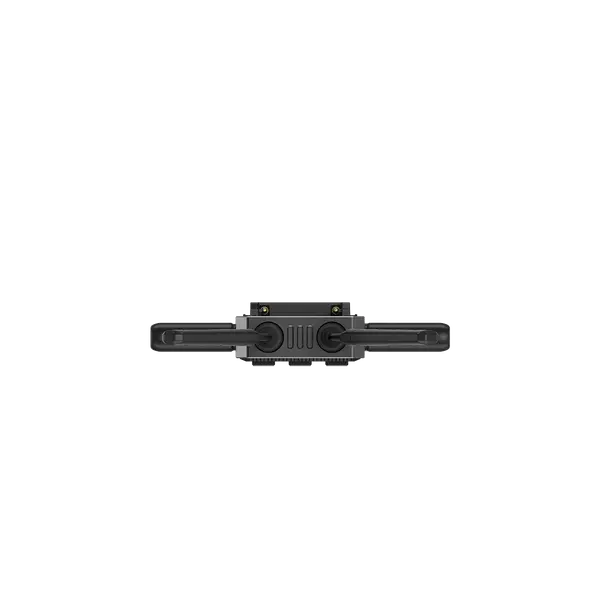

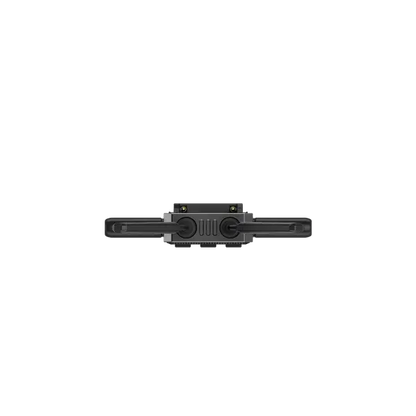

Sporting a unique and revamped configuration along with a quad antenna setup, the CineView 2 SDI boasts enhanced transmission and reception functions. Both the transmitter and receiver tip the scales at 200g / 7.05 oz each.

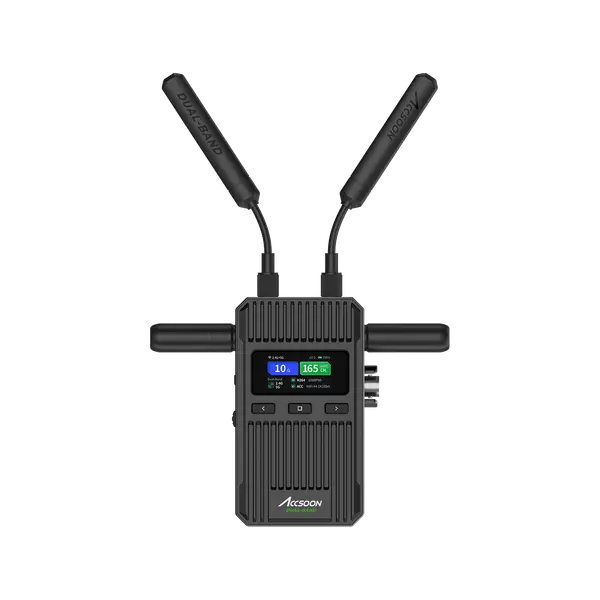

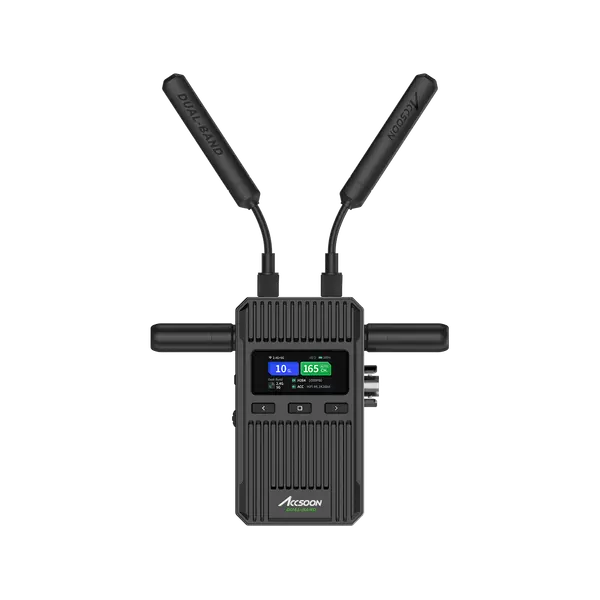

Crafted from aerospace-grade aluminum alloy, the CineView 2 SDI stands out for its sleeker profile compared to its predecessors. Moreover, its fanless configuration maintains silent operation. Additionally, the device is equipped with a vibrant full-color display.

Input and Output ports of Accsoon CineView 2 SDI WIT08-S (WIT08-S-TX and WIT08-S-RX): Guide

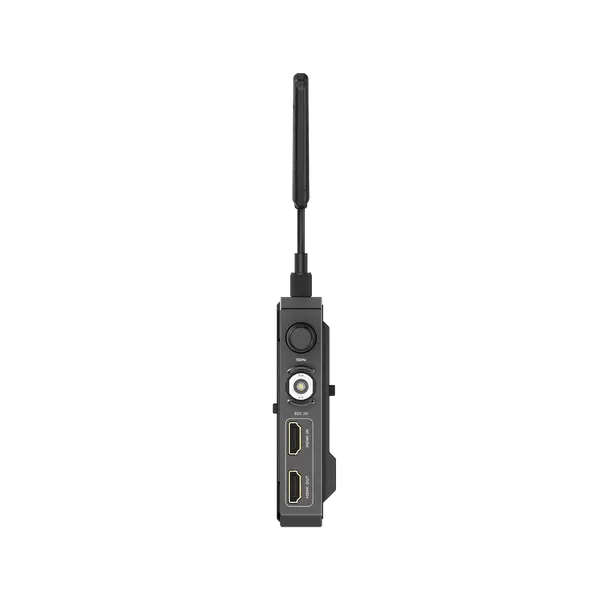

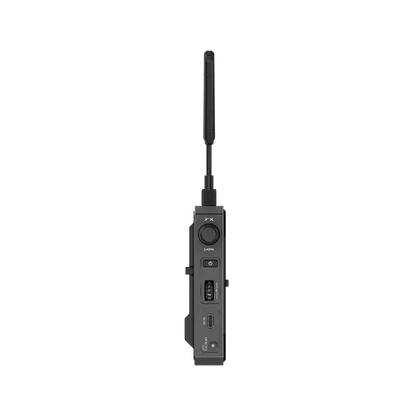

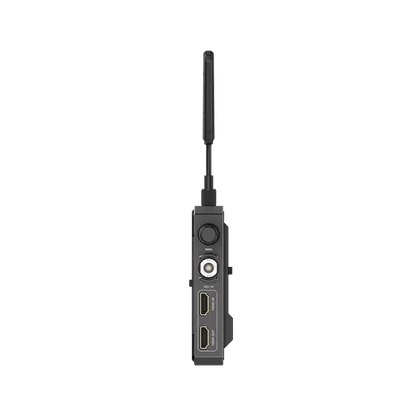

The CineView 2 SDI TX  WIT08-S-TX comes with a HD-SDI source, as well as HDMI source and loop-through feed. It has the function to transmit footage signals up to 1080p/60. On the other hand, the RX unit provides both HD-SDI and HDMI Full HD feeds. This operation proves to be advantageous as it permits the wireless link of a SDI signal from a camera to an HDMI monitor or switcher, or vice versa, an HDMI camera to a SDI monitor or switcher.

CineView 2 SDI TX has 4K loop through: Guide

Moreover, the new CineView TX WIT08-S-TX  Wireless Footage Transmitter unit provides a 4K 60P HDMI source and loop-through feed. This proves to be beneficial as it enables the camera to be configured to feed 4K over HDMI, with the signal then looped via the transmitter to other 4K devices such as monitors and switchers.

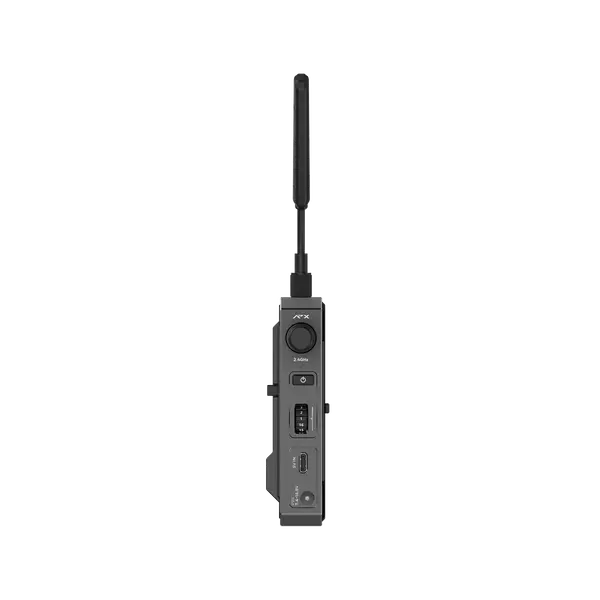

CineView 2 SDI RX: UVC output

Additionally, this new CineView RX  WIT08-S- RX unit is equipped with a USB type C UVC feed. This facilitates direct link to a computer or other compatible device, enabling the footage to be source directly to live-streaming software like OBS Studio with the WIT08-S-RX.

Dual Band Transmission Technology: Guide

The CineView 2 SDI employs Accsoon’s cutting-edge Dual-Band transmission technology, an US-patented innovation. This enhanced technology simultaneously transmits two sets of Full HD footage signals on separate frequencies from the transmitter (TX). Subsequently, the receiver (RX) WIT08-S-RX  unit intelligently merges these signals into an unified final picture. This method is purportedly more inherently stable compared to less efficient wireless systems that merely switch frequencies.

Compatibility of Accsoon CineView 2 SDI: other Accsoon Products

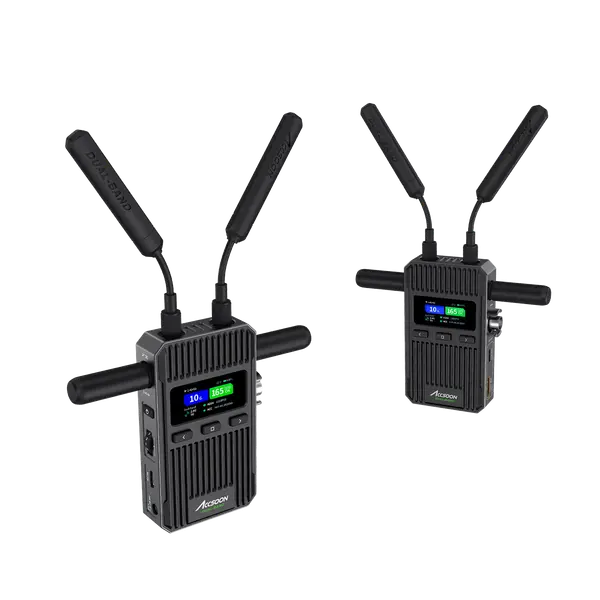

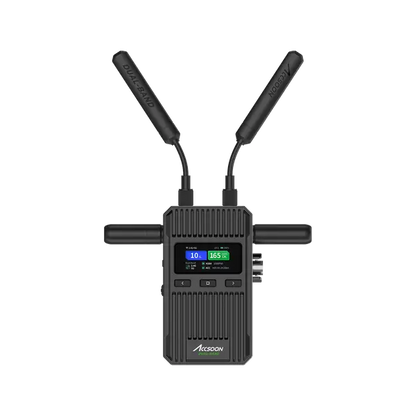

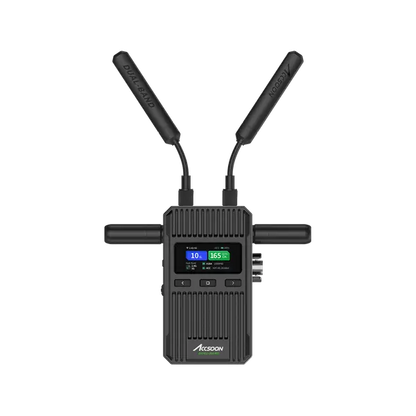

[caption id="attachment_12096" align="alignright" width="473"] WIT08-S-TX, WIT08-S-RX[/caption]
The CineView 2 SDI  Wireless Footage Transmitter maintains compatibility with existing CineView SE, HE, and Quad versions, enabling operators to seamlessly integrate them as needed. With each CineView 2 SDI TX unit, operators can transmit to a maximum of four CineView 2 SDI or original CineView RX units in any desired configuration.
Additionally, each CineView 2 SDI TX WIT08-S-TX unit provides the function to transmit footage directly to iOS and Android devices utilizing the Accsoon SEE app. This simultaneous transmission is compatible with a combination of smart devices and RX  WIT08-S-RXunits, totaling up to four devices.

Battery Solutions and Power

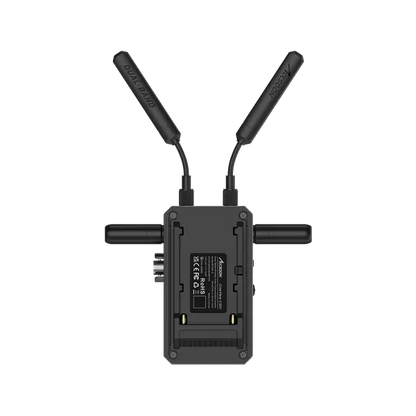

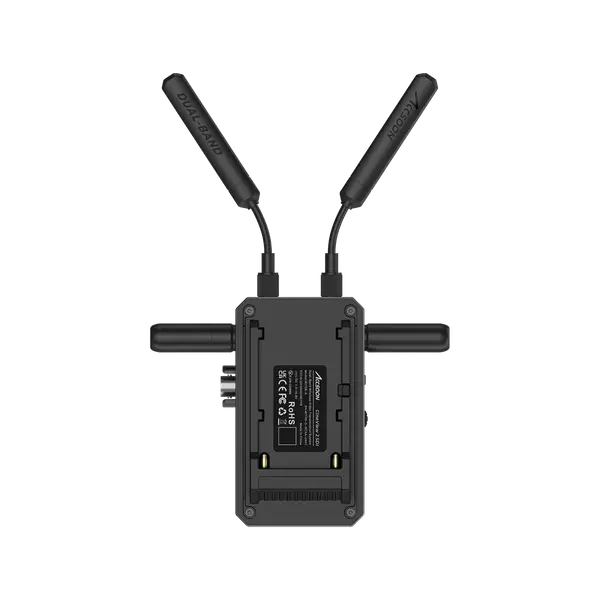

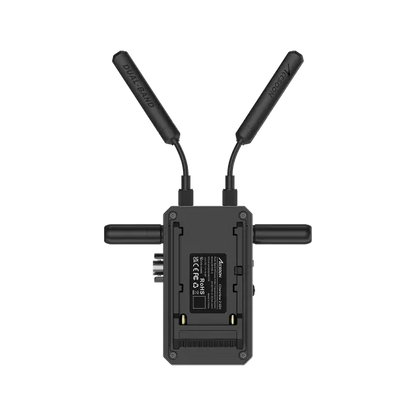

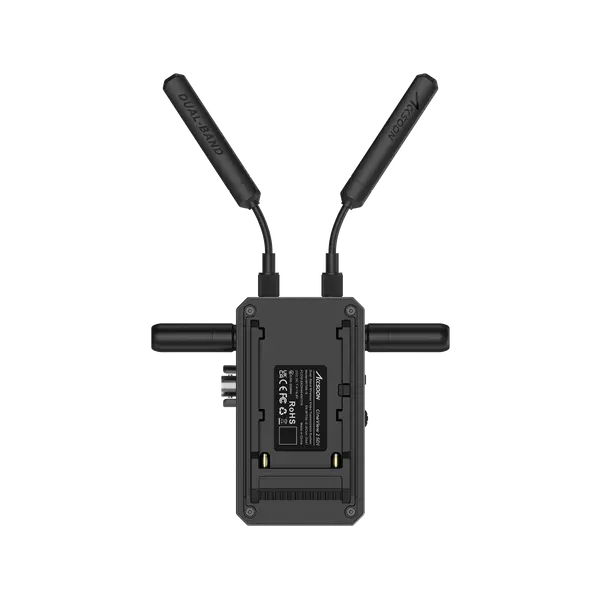

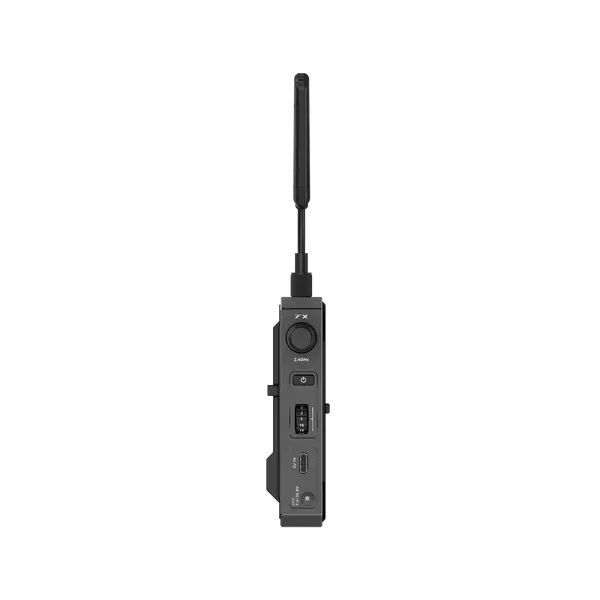

The all new CineView provides versatile power options to suit several setups. Equipped with a built-in battery plate, both the TX and RX units are compatible with NP-F type batteries, maintaining extended operational times with minimal power consumption. Additionally, they boast DC barrel (7.4~16.8V) and USB-C PD power sources, making them appropriate for rig attachment and power sourcing from V-lock batteries or power banks. Seamless switching between these power sources supports uninterrupted operation during extended shooting sessions.

Functionality and Accsoon See App Compatibility

The Accsoon SEE app presents operators with a touch interface and a diverse selection of footage monitoring tools. Via simple taps on the screen, you can assess focus, apply LUTs, access waveforms or zebras, de-squeeze anamorphic footage, display grids, and monitor audio levels. Additionally, operators have the function to capture and stream content directly from the app. Similar to its predecessor, it permits HD footage capture transmitted from the new CineView to your mobile device for immediate review and social media sharing, as well as streaming via RTMP to a range of popular footage sharing platforms.
